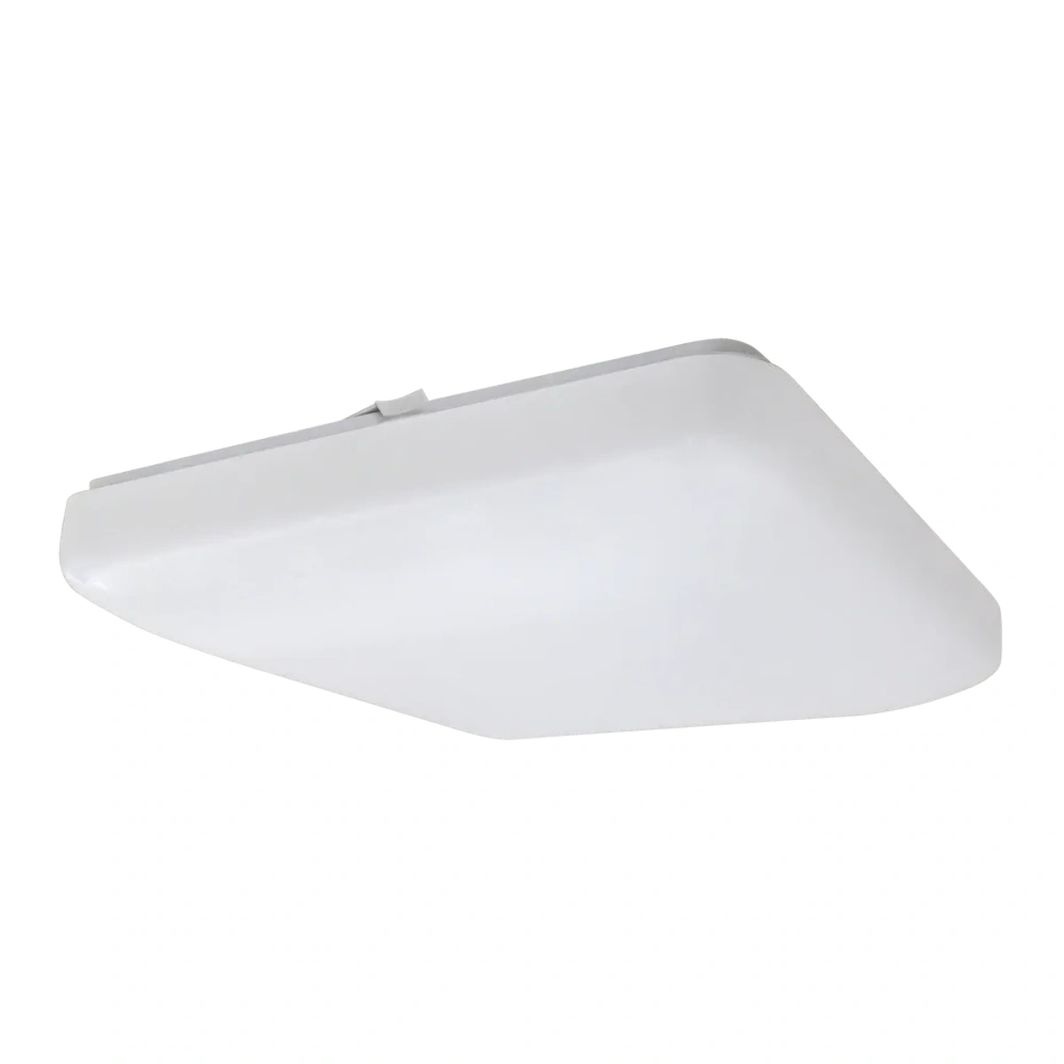

Square Surface Mount Light (OSL-SMS)

Products

Size & Lumen

Clear

Field selectable 2700k (soft white), 3000k (warm white), 3500k (warm/neutral white), 4000k (neutral white), and 5000k (cool white) color temperatures.
Long-life LEDs provide up to 157,000 hours of operation with at least 70% of initial lumen output (L70).
SMS 12 = 1,000 nominal lumens and SMS14 = 1,400 nominal lumens at 70 lumens per watt (lm/W) efficacy.
120 AC voltage (60Hz) is standard.
Triac dimming drivers are standard.
Steel housing and PMMA lens.
Power factor > 0.90.
Total harmonic distortion < 20%.
Color rendering index > 80.

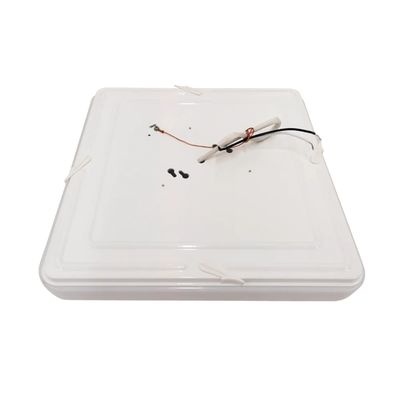

Easy installation in new construction or retrofit.
cETLus listed for damp locations.
Energy Star certified.
Complies with FCC Part 15, class B.
Surge protection (0.5kV).
5-year warranty of all electronics and housing.

Brand	ONE SOURCE LIGHT
MPN (Part No.)	SMS12-KFS SMS14-KFS
SKU	OSL-SMS12 OSL-SMS14
DLC Part Number	–
Lighting Technology	LED
LED Chip Type
Dimmable	Yes
CRI	80+
Color	Warm/Natural/Cool White Field Selectable
Color Temperature	2700/3000/3500/4000/5000 Kelvin Field Selectable
LED L70 Life Hours	157000
Wattage	14W (OSL-SMS12) 20W (OSL-SMS14)
LPW	up to 73
Fixture Type	Ceiling Decorative

Lumens	1,000 Lumen (OSL-SMS12) 1,500 Lumen (OSL-SMS14)
Voltage	120V AC Input
Ratings and Certifications	Damp Location ETL / Energy Star
Finish	White
Mounting	Surface Ceiling Mount
Surge Protection	0.5kV
Operating Temp
Lens	PMMA
Length	12.0 in. (OSL-SMS12) 14.0 in. (OSL-SMS14)
Height	3.0 in. (OSL-SMS12) 3.0 in. (OSL-SMS14)
Width	12.0 in. (OSL-SMS12) 14.0 in. (OSL-SMS14)
Package Quantity	1
Weight	2.0 lbs (OSL-SMS1S) 2.5 lbs (OSL-SMS14)
Warranty	5-Year Limited
