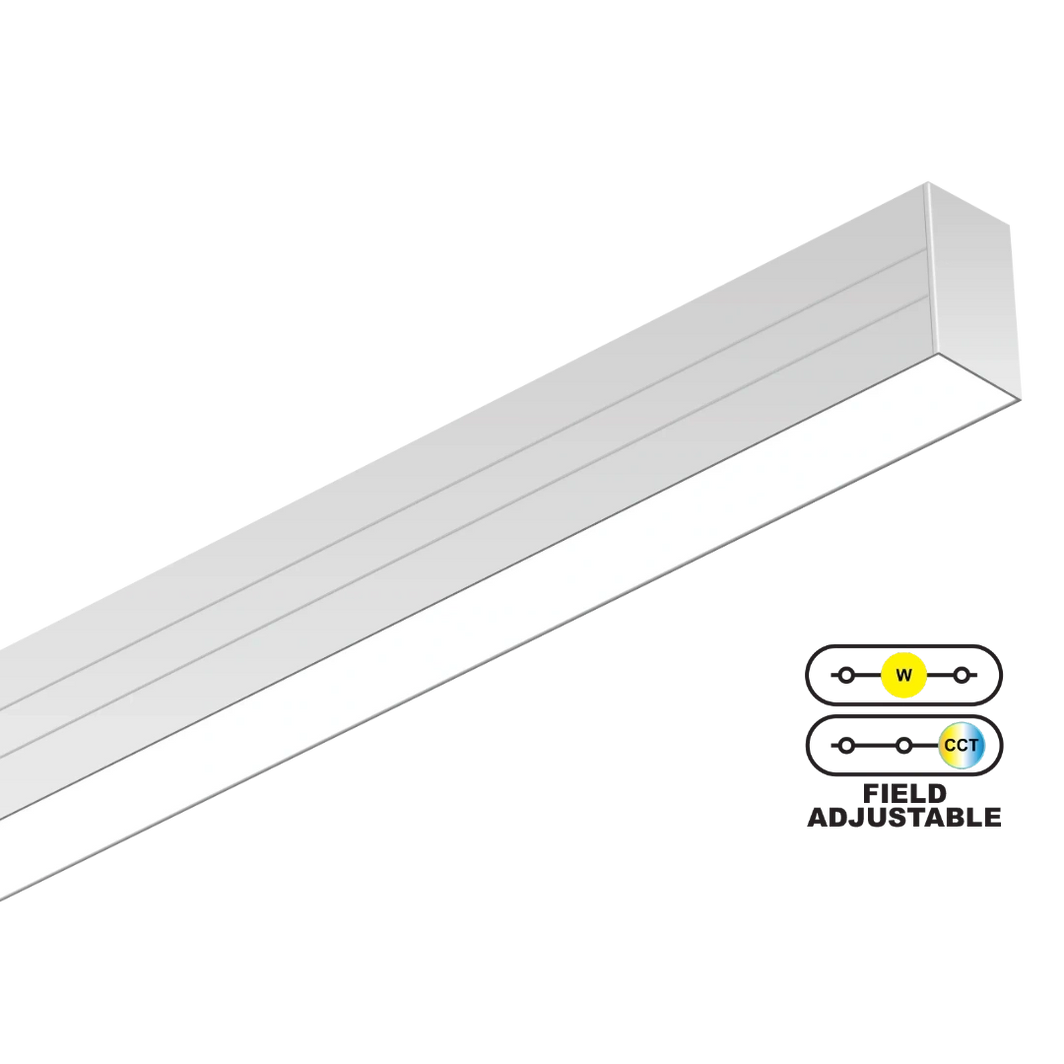

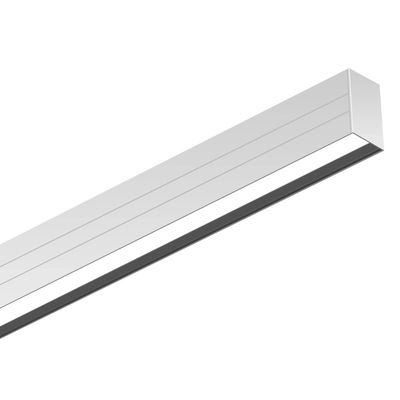

LED Zeta Linear 2.3″ Recessed 8FT Wall Wash (OSL-ZE-ITWRW-SF/T)

Products

Size

Mounting

Diffuser

Clear

LED Architectural recessed linear light (Flangeless for drywall ceiling or T-grid ceiling including standard 15/16″ and 9/16″ T-bar and 9/16″ Slot ceiling)
Available in 2, 3, 4, 8ft
Innovative joining design for easy continuous run in the field (optional joiner available)
Available joiners : In-line, L (illuminated)
Rolling diffuser lens available (optional)
Internal LED driver
Compatible with drywall ceiling (flangeless) and T-grid (9/16″ T-bar, 15/16″ T-bar, 9/16″ Slot)
CCT selectable from 3000K, 3500K and 4000K
8ft: 40/60/80W Selectable (4,000/6,000/8,000lm)
100 lumen per watt
120-277V AC Input
1-10V Continuous Dim
Minimum 80 CRI
UL Listed for damp location
50,000 hours with 87.8% of lumen maintenance in 25°C ambient temperature
5 years warranty

Brand	ONE SOURCE LIGHT
MPN (Part No.)	ZE-82-ITWRW
SKU	OSL-ZE-82-ITWRW
DLC Part Number	–
Lighting Technology	LED
LED Chip Type
Dimmable	Yes
CRI	80+
Color	Warm/Natural White Field Selectable
Color Temperature	3000/3500/4000 Kelvin Field Selectable
LED L70 Life Hours	50,000
Wattage	40/60/80W Field Selectable
LPW	100
Fixture Type	Linear Architectural Recessed

Lumens	4,000/6,000/8,000 Lumen Field Selectable
Voltage	100-277V AC Input
Ratings and Certifications	Damp Location UL
Finish	White
Mounting	Recessed Mount : T-bar Ceilling Recessed Mount : Flangeless
Surge Protection
Operating Temp	-20°C ~ 40°C (-4°F ~ 104°F)
Lens
Length	95.24 in.
Height	3.46 in.
Width	2.34 in.
Package Quantity	1
Weight
Warranty	5-Year Limited
