LED Zeta Linear 2.3″ Recessed 2FT-4FT Regressed Lens (OSL-ZE-ITWRT-SF/T)

Products

Size

Mounting

Diffuser

Clear

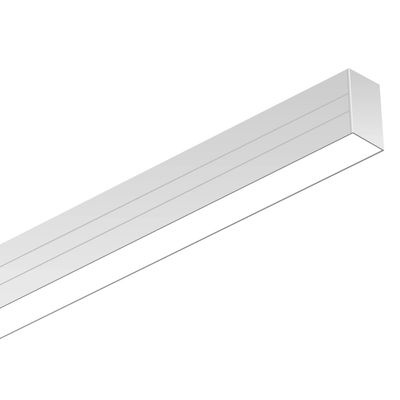

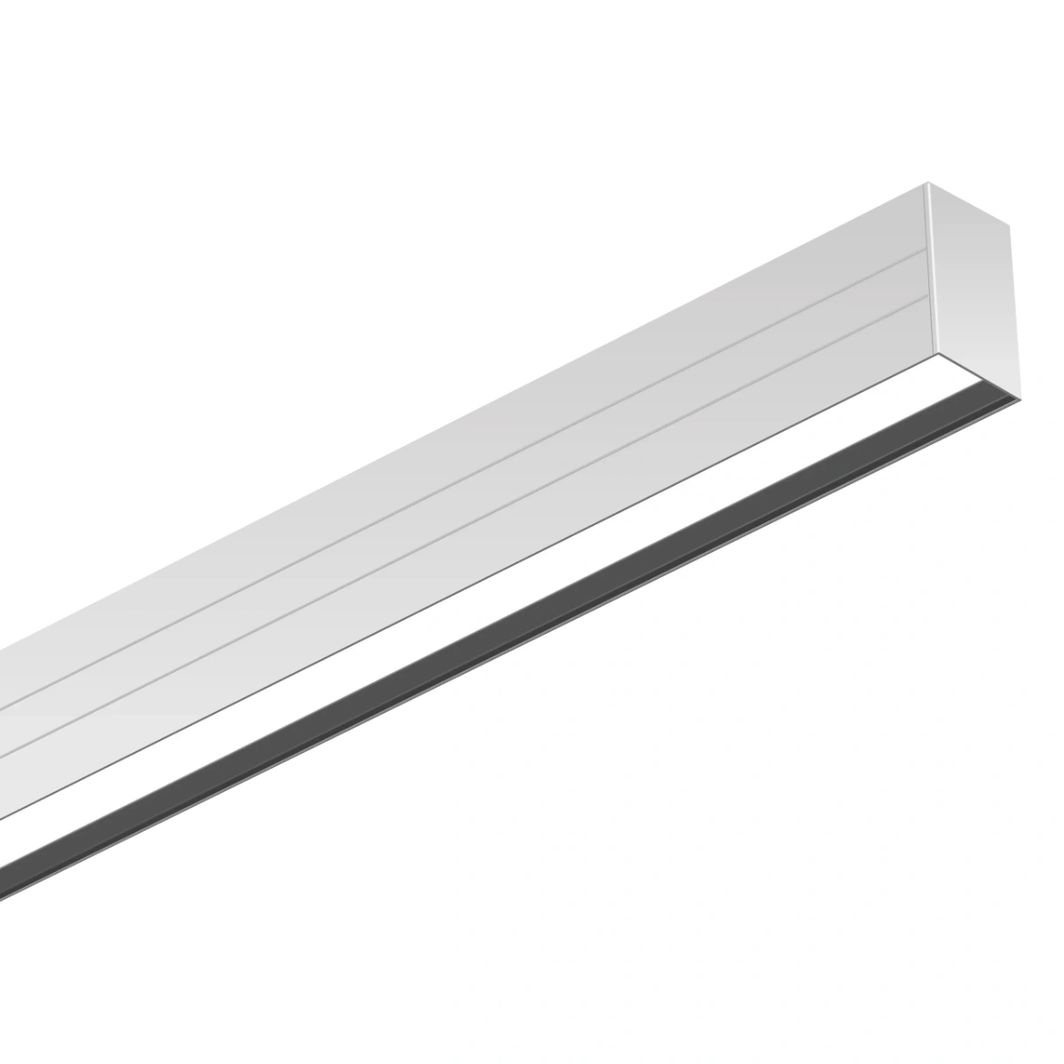

LED Architectural recessed linear light (Flangeless for drywall ceiling or T-grid ceiling including standard 15/16″ and 9/16″ T-bar and 9/16″ Slot ceiling)
Available in 2, 3, 4, 8ft
Innovative joining design for easy continuous run in the field (optional joiner available)
Available joiners : In-line, L (illuminated)
Rolling diffuser lens available (optional)
Internal LED driver
Compatible with drywall ceiling (flangeless) and T-grid (9/16″ T-bar, 15/16″ T-bar, 9/16″ Slot)
CCT selectable from 3000K, 3500K and 4000K
2ft: 10/15/25W Selectable (1,000/1,500/2,000lm)
3ft: 15/20/30W Selectable (1,500/2,250/3,000lm)
4ft: 20/30/40W Selectable (2,000/3,000/4,000lm)
100 lumen per watt
120-277V AC Input
1-10V Continuous Dim
Minimum 80 CRI
UL Listed for damp location
50,000 hours with 87.8% of lumen maintenance in 25°C ambient temperature
5 years warranty

Brand	ONE SOURCE LIGHT
MPN (Part No.)	ZE-22-ITWRT ZE-32-ITWRT ZE-42-ITWRT
SKU	OSL-ZE-22-ITWRT OSL-ZE-32-ITWRT OSL-ZE-42-ITWRT
DLC Part Number	–
Lighting Technology	LED
LED Chip Type
Dimmable	Yes
CRI	80+
Color	Warm/Natural White Field Selectable
Color Temperature	3000/3500/4000 Kelvin Field Selectable
LED L70 Life Hours	50,000
Wattage	10/15/25W Field Selectable(2FT) 15/20/30W Field Selectable(3FT) 20/30/40W Field Selectable(4FT)
LPW	100
Fixture Type	Linear Architectural Recessed

Lumens	1,000/1,500/2,000 Lumen Field Selectable(2FT) 1,500/2,250/3,000 Lumen Field Selectable(3FT) 2,000/3,000/4,000 Lumen Field Selectable(4FT
Voltage	100-277V AC Input
Ratings and Certifications	Damp Location UL
Finish	White
Mounting	Recessed Mount : T-bar Ceilling Recessed Mount : Flangeless
Surge Protection
Operating Temp	-20°C ~ 40°C (-4°F ~ 104°F)
Lens
Length	23.70 in.(2FT) 35.71 in.(3FT) 47.72 in.(4FT)
Height	3.46 in.
Width	2.34 in.
Package Quantity	1
Weight
Warranty	5-Year Limited
