LED Zeta Linear 2.3″ Pendant & Surface Standard Lens 2FT-4FT (OSL-ZE-ITWAD)

Products

Size

CCT

Clear

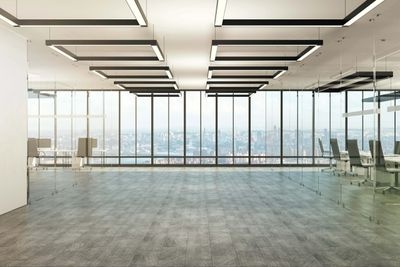

LED Architectural pendant linear light (optional surface & wall mount available)
Available in 2,3,4,8ft

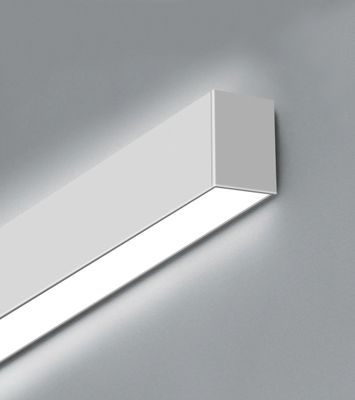

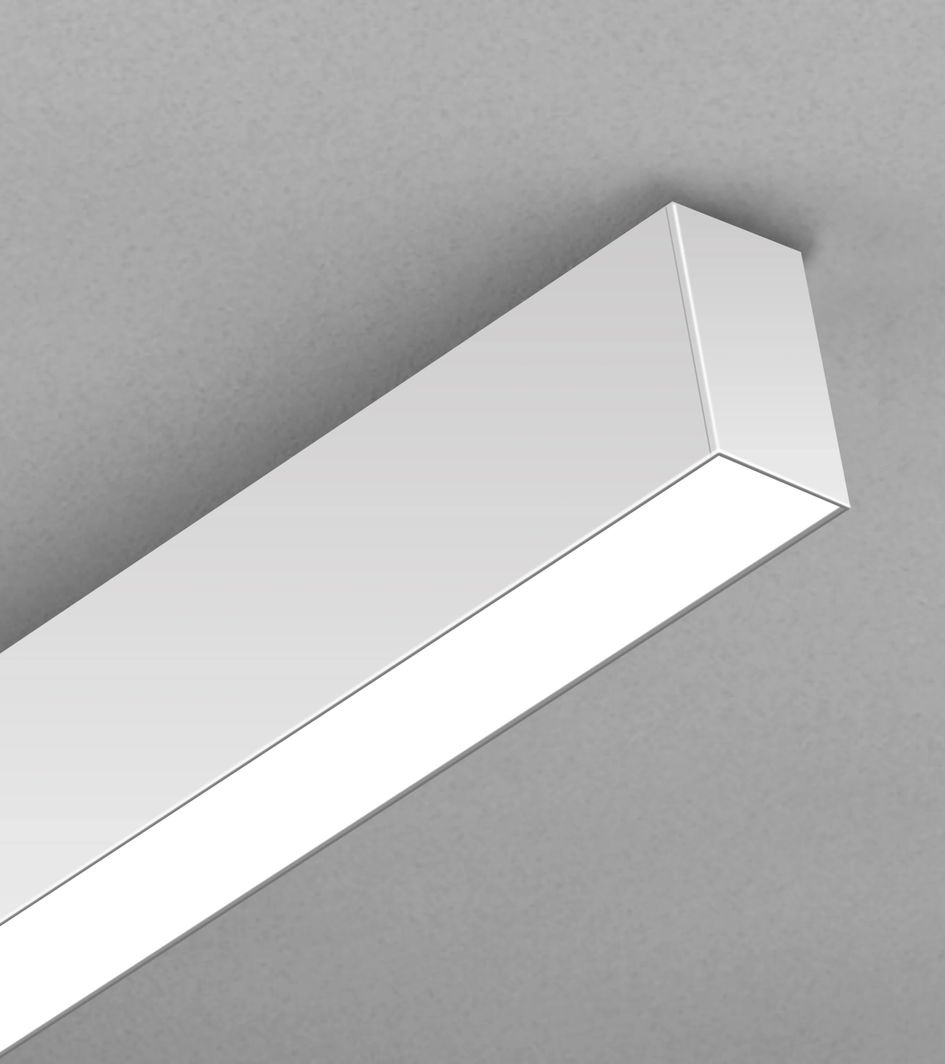

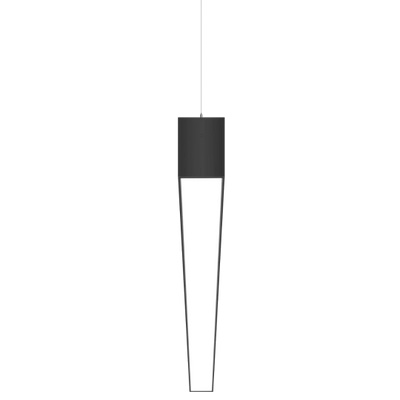

Available for pendant (5ft cord and aircraft cable included as standard), surface (kit sold separately) or wall (kit sold separately) mount

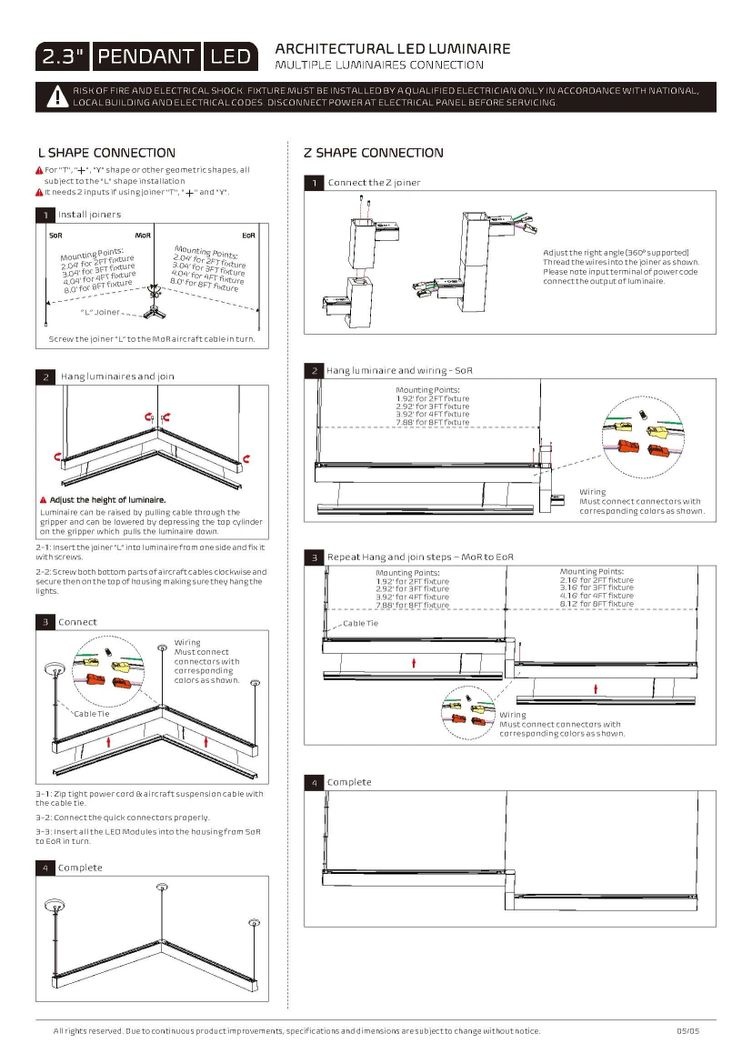

Innovative joining design for easy continuous run in the field (optional joiner available)
Available joiners : In-line, L, Y, T, X, Z (Non-lit)
Rolling diffuser lens available (optional)
Internal LED driver
Compatible with hard ceiling(standard) and drop ceiling(optional)
CCT selectable from 3000K, 3500K and 4000K
2ft : 10/15/25W Selectable (1,150/1,720/2,300lm)
3ft : 15/20/30W Selectable (1,725/2,300/3,480lm)
4ft : 20/30/40W Selectable (2,300/3,480/4,600lm)
115 lumen per watt
Dip switch for field adjustable 7 light distributions : 100% Down, 90% Down 10% Up, 70% Down 30% Up, 50% Down 50% Up, 30% Down 70% Up, 10% Down 90% Up, 100% Up
120-277V AC Input
1-10V Continuous Dim
Minimum 80 CRI
Includes power cord and aircraft cable
UL Listed for damp location
50,000 hours with 87.8% of lumen maintenance in 25°C ambient temperature
5 years warranty

Brand	ONE SOURCE LIGHT
MPN (Part No.)	OSL-ZE-ITWAD-2FT OSL-ZE-ITWAD-3FT OSL-ZE-ITWAD-4FT
SKU	OSL-ZE-22-ITWAD OSL-ZE-32-ITWAD OSL-ZE-42-ITWAD
DLC Part Number	–
Lighting Technology	LED
LED Chip Type
Dimmable	Yes
CRI	80+
Color	Warm/Natural White Field Selectable
Color Temperature	3000/3500/4000 Kelvin Field Selectable
LED L70 Life Hours	50,000
Wattage	10/15/25W Field Selectable(2FT) 15/20/30W Field Selectable(3FT) 20/30/40W Field Selectable(4FT)
LPW	115
Fixture Type	Linear Architectural

Lumens	1,150/1,720/2,300 Lumen Field Selectable(2FT) 1,725/2,300/3,480 Lumen Field Selectable(3FT) 2,300/3,480/4,600 Lumen Field Selectable(4FT)
Voltage	100-277V AC Input
Ratings and Certifications	Damp Location UL
Finish	White or Black
Mounting	Linear Architectural
Surge Protection
Operating Temp	-20°C ~ 40°C (-4°F ~ 104°F)
Lens

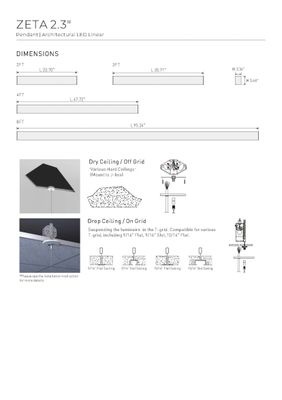

Length	23.70 in.(2FT) 35.71 in.(3FT) 47.72 in.(4FT)
Height	3.46 in.
Width	2.34 in.
Package Quantity	1
Weight
Warranty	5-Year Limited
