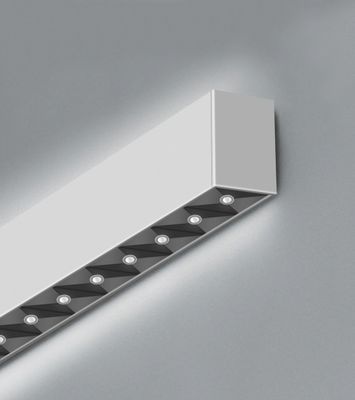

LED Zeta Linear 2.3″ Micro Reflector Pendant & Surface 4FT (OSL-ZE-AR)

Products

Size & Wattage

CCT

Finish

Mounting Kit

Clear

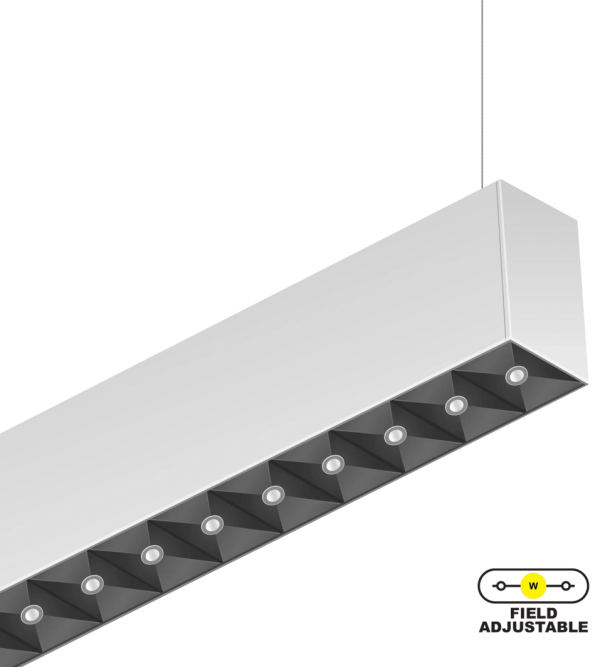

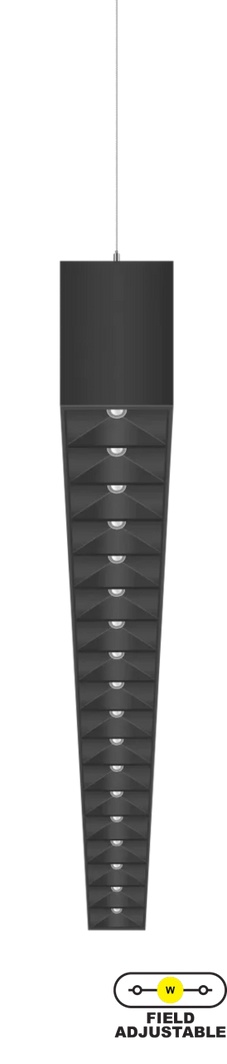

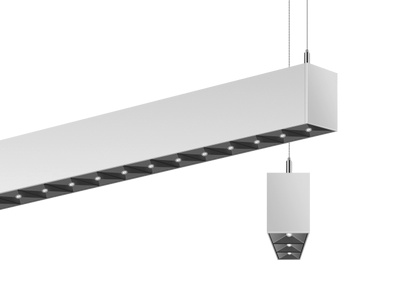

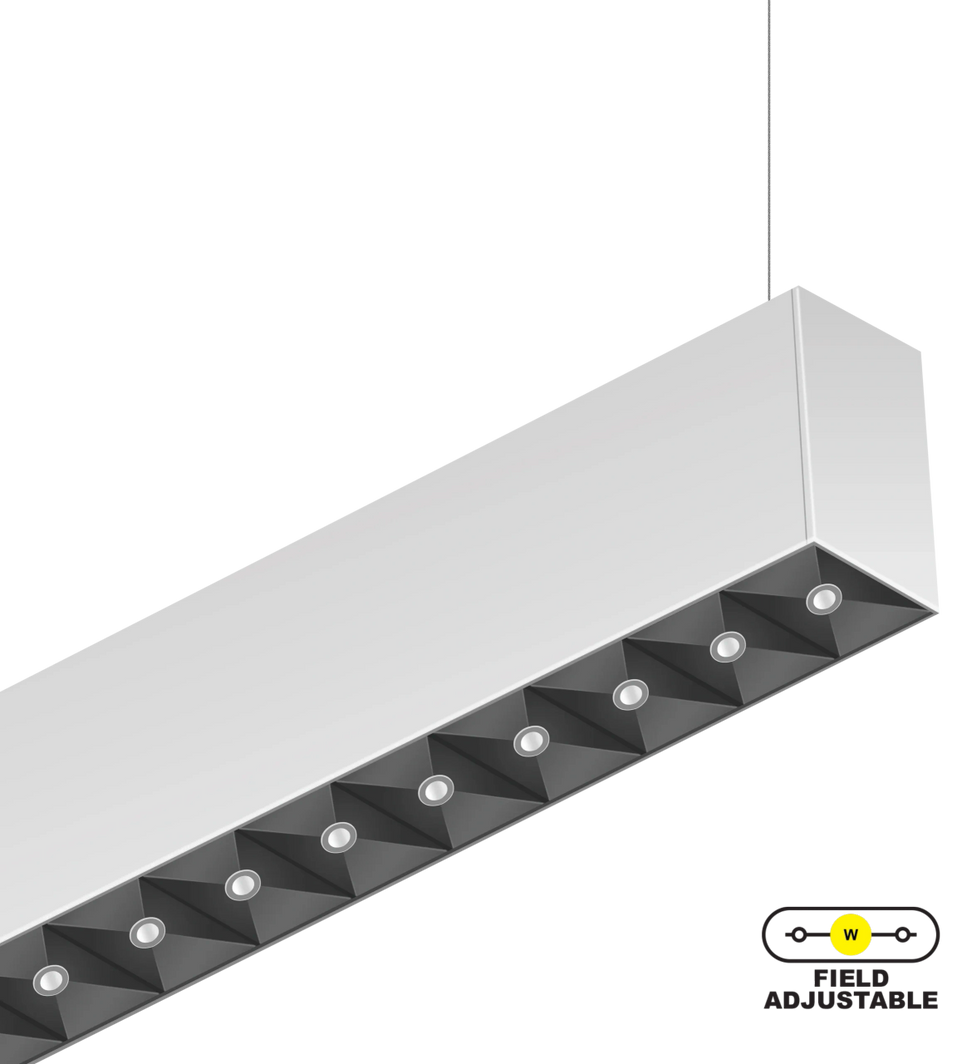

LED Architectural pendant linear light (optional surface & wall mount available)
Available in 4ft

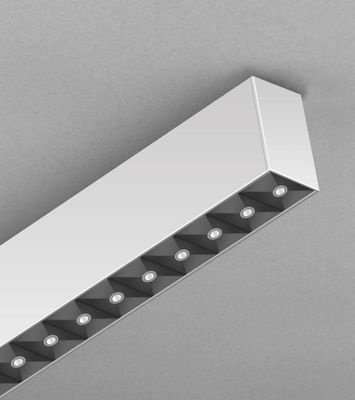

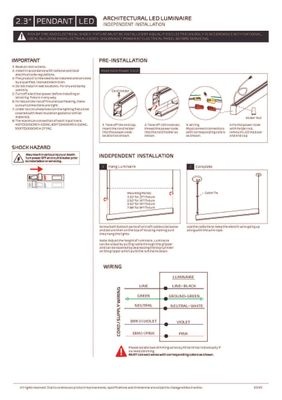

Available for pendant (5ft cord and aircraft cable included as standard), surface (kit sold separately) or wall (kit sold separately) mount

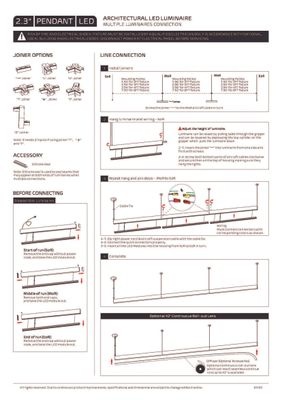

Innovative joining design for easy continuous run in the field (optional joiner available)
Available joiners : In-line, L, Y, T, X, Z
Internal LED driver
Compatible with hard ceiling(standard) and drop ceiling(optional)
Fixed CCT. 3500K or 4000K
4ft : 20/30/40W Selectable (2,300/3,440/4,600lm)
115 lumen per watt
Comes with a dip switch for 7 light distribution options : 100% Down, 90% Down 10% Up, 70% Down 30% Up, 50% Down 50% Up, 30% Down 70% Up, 10% Down 90% Up, 100% Up
120-277V AC Input
1-10V Continuous Dim
Minimum 80 CRI
Includes power cord and aircraft cable (5ft length standard. Optional 12ft available)
UL Listed for damp location
50,000 hours with 87.8% of lumen maintenance in 25°C ambient temperature
5 years warranty

Lumens	2,300/3,440/4,600 Lumen Field Selectable
Voltage	100-277V AC Input
Ratings and Certifications	Damp Location UL
Finish	White
Mounting	Pendant, Surface or Wall Mount
Surge Protection
Operating Temp	-20°C ~ 40°C (-4°F ~ 104°F)
Lens	n/a

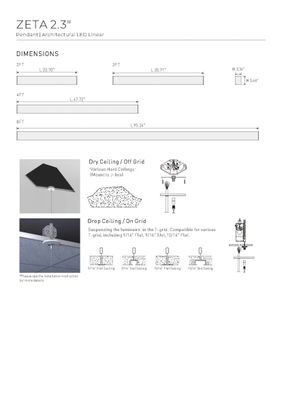

Length	47.72 in.
Height	3.46 in.
Width	2.34 in.
Package Quantity	1
Weight
Warranty	5-Year Limited
