LED Zeta Linear 1.8″ Pendant & Surface 8FT (OSL-ZE-ITWDD)

Products

Size

CCT

Finish

Clear

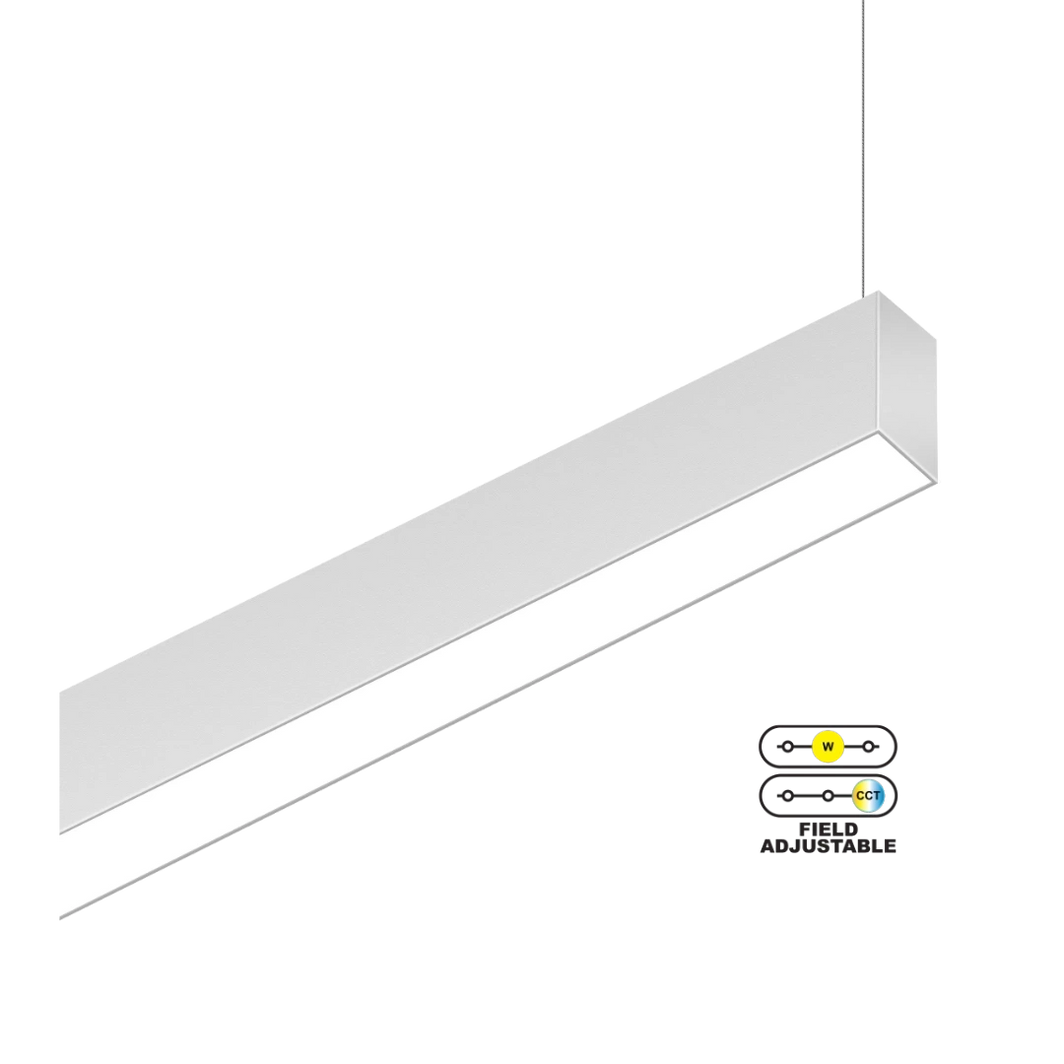

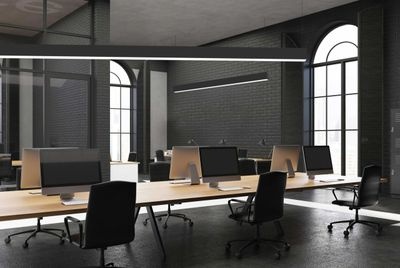

LED Architectural pendant linear light (optional surface mount available)
Available in 2,4,8ft

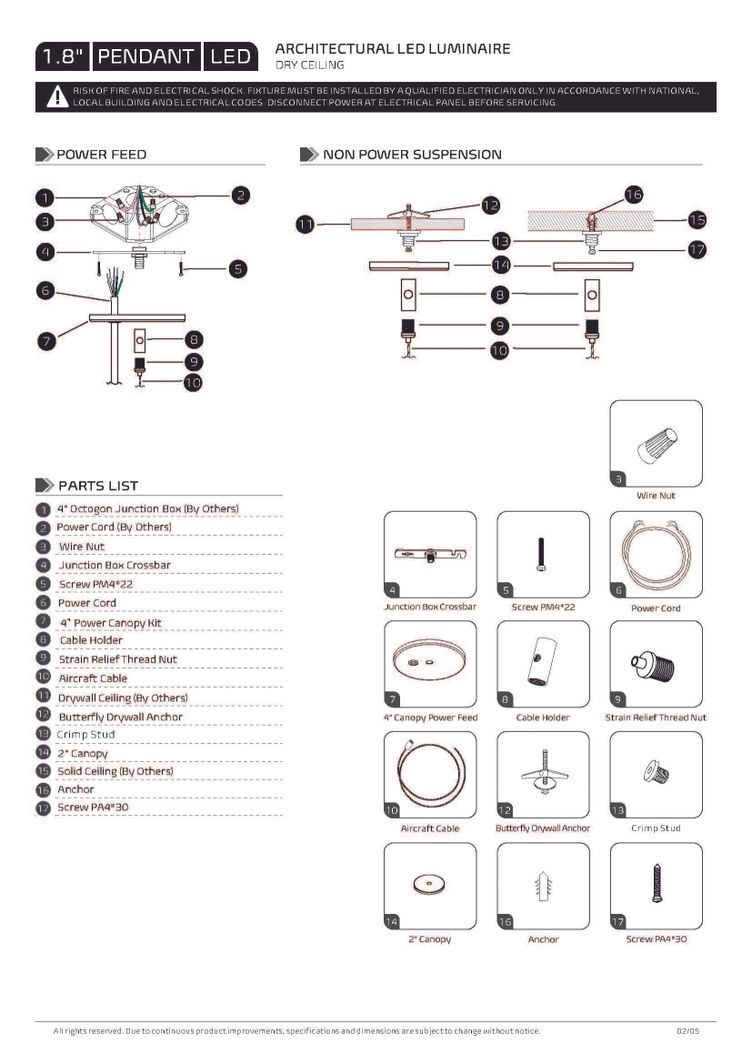

Available for pendant(5ft cord and aircraft cable included as standard), surface (kit sold separately) or wall (kit sold separately) mount

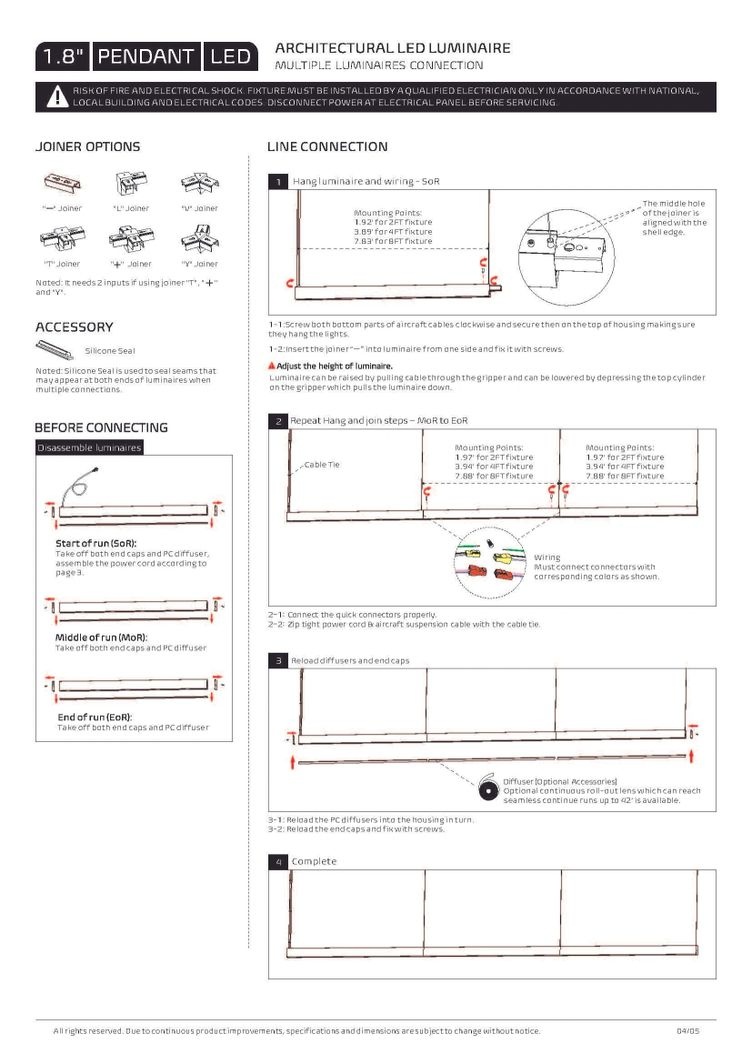

Innovative joining design for easy continuous run in the field (optional joiner available)
Internal LED driver

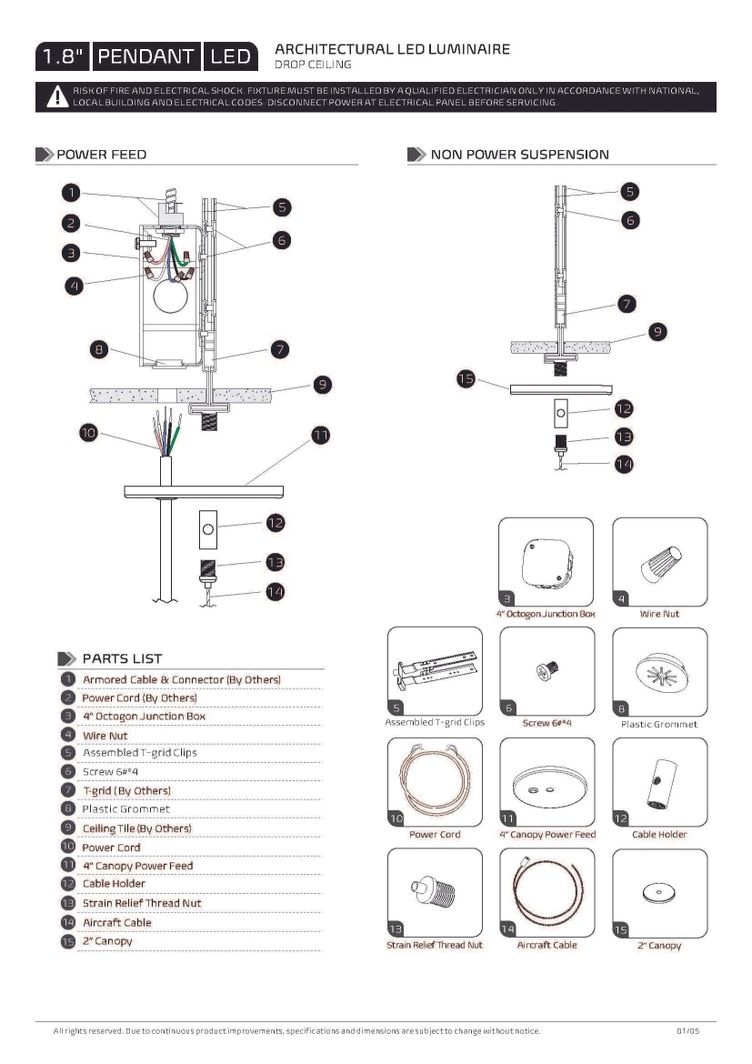

Compatible with hard ceiling(standard) and drop ceiling(optional)
CCT selectable from 3000K, 3500K and 4000K
8ft : 40/60/80W Selectable (4,000/6,000/8,000lm)
100 lumen per watt
120-277V AC Input
1-10V Continuous Dim
Minimum 80 CRI
Includes power cord and aircraft cable
UL Listed for damp location
50,000 hours with 87.8% of lumen maintenance in 25°C ambient temperature
5 years warranty

Brand	ONE SOURCE LIGHT
MPN (Part No.)	ZE-83-ITWDD
SKU	OSL-ZE-83-ITWDD
DLC Part Number	–
Lighting Technology	LED
LED Chip Type
Dimmable	Yes
CRI	80+
Color	Warm/Natural White Field Selectable
Color Temperature	3000/3500/4000 Kelvin Field Selectable
LED L70 Life Hours	50,000
Wattage	40/60/80W Field Selectable
LPW	100
Fixture Type	Linear Architectural

Lumens	4,000/6,000/8,000 Lumen Field Selectable
Voltage	100-277V AC Input
Ratings and Certifications	Damp Location UL
Finish	White or Black
Mounting	Pendant, Surface or Wall Mount
Surge Protection
Operating Temp	-20°C ~ 40°C (-4°F ~ 104°F)
Lens	PMMA

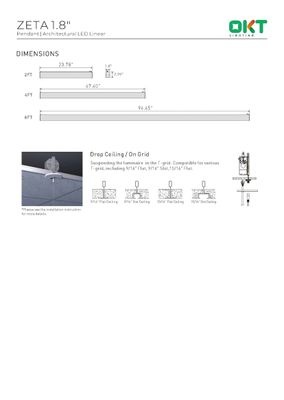

Length	94.65 in.
Height	2.99 in.
Width	1.80 in.
Package Quantity	1
Weight
Warranty	5-Year Limited
