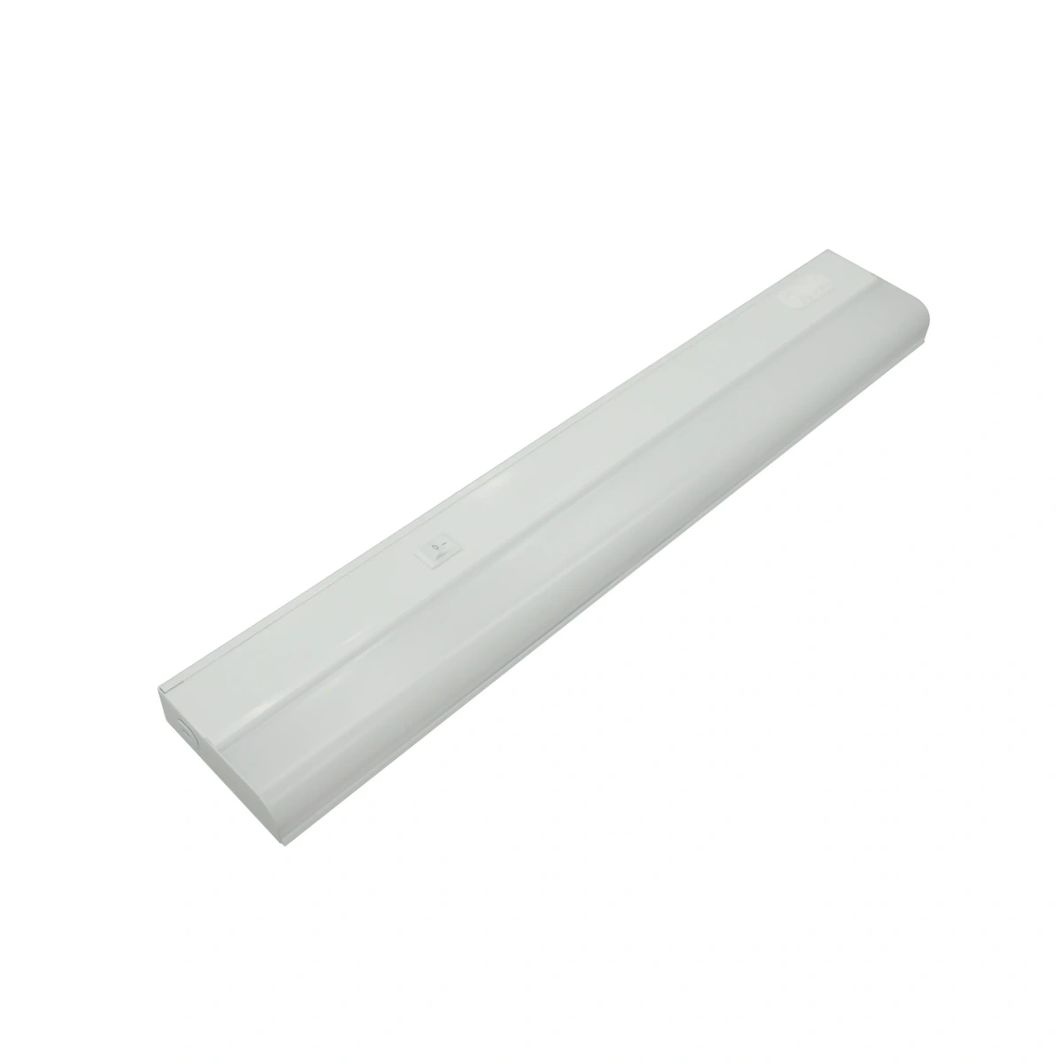

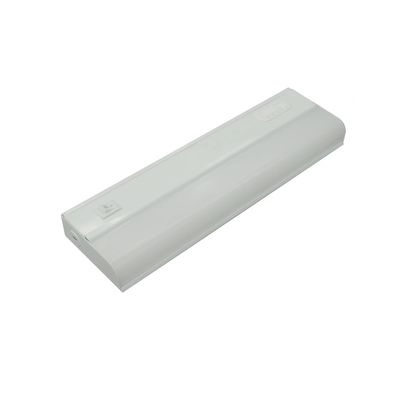

LED Under Cabinet 5-CCT Adjustable 33-Inch (OSL-UCE-KFS)

Products

Size & Wattage

CCT

Clear

Field selectable 2700k (soft white), 3000k (warm white), 3500k (warm/neutral white), 4000k (neutral white), and 5000k (cool white) color temperatures.
Long-life LEDs provide up to 196,000 hours of operation with at least 70% of initial lumen output (L70).** L70 hours are IES TM-21-11 calculated hours.
Available models provide from 334 to 1,543 nominal lumens.*
120 AC voltage (60Hz) is standard.
Triac dimmable.
Power factor > 90.
Total harmonic distortion < 20%.
Color rendering index > 90.
Steel housing.
Polycarbonate lens.
Knockouts on sides and back simplify electrical connections.
All size UCE-KFS are equipped with 3 knockouts on the back of the unit. One is in the dead center, and the other 2 are located near the bottom corners approx. 1.57” from the edge.
Keyhole slots provide for easy installation in new construction or retrofit applications.
cULus listed for damp locations.
Energy Star certified.
Complies with FCC Part 15, class B.
Complies with ANSI/IEEE C62.41.1-2002, surge immunity protection (2.5kV).
5-year warranty of all electronics and housing.

Brand	ONE SOURCE LIGHT
MPN (Part No.)	UCE-33-KFS
SKU	OSL-UCE-33-KFS
DLC Part Number	–
Lighting Technology	LED
LED Chip Type
Dimmable	Yes
CRI	90+
Color	Warm/Natural/Cool White Field Selectable
Color Temperature	2700/3000/3500/4000/5000 Kelvin Field Selectable
LED L70 Life Hours	196000
Wattage	14W
LPW	up to 91
Fixture Type	Under Cabinet

Lumens	up to 1,245 Lumen
Voltage	120V AC Input
Ratings and Certifications	Damp Location UL / Energy Star Listed
Finish	White
Mounting	Under Cabinet
Surge Protection	2.5kV
Operating Temp
Lens	Polycarbonate
Length	33.0 in.
Height	1.0 in.
Width	3.5 in.
Package Quantity	1
Weight	2.40 lb. per unit
Warranty	5-Year Limited
