LED UFO Highbay Lumen & CCT Adjustable 7,000 – 24,000 Lumen (OSL-MHB08)

Products

Wattage & AC Input

CCT

Clear

LED UFO highbay adjustable wattage & CCT

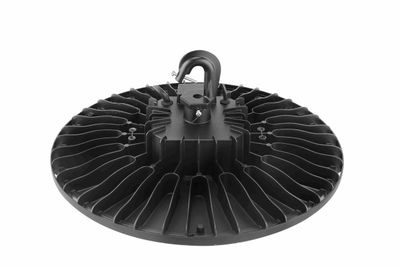

Advanced thermal management die-cast aluminum housing
Black finish
High efficiency (160 lumen per watt)
150/200/240W (24,000/32,000/38,400 lumen output) adjustable. 120-277V AC Input
4000K or 5000K adjustable
Hanging ring and safety cable included
100-277V AC Input
0-10V dim
Minimum 80 CRI
-40°C ~ 50°C operating temperature
ETL Listed for wet location (IP65)
DLC premium listed
100,000+ hours lifespan (L70>100,000 hours)
5 years warranty

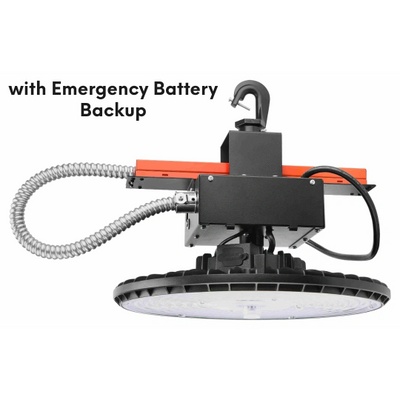

Optional 30W/40W selectable emergency battery backup available (field install)
Optional 0-10V Microwave sensor available. 10ft detection range. -25°C ~ 60°C operating temperature (field install)

Brand	ONE SOURCE LIGHT
MPN (Part No.)	MHB08100W27VDDKYYYY2 MHB08150W27VDDKYYYY2/210)W-(40/50)KHV
SKU	OSL-MHB08-100 OSL-MHB08-150
DLC Part Number	MHB08100W27VDDK MHB08150W27VDDK
Lighting Technology	LED
LED Chip Type
Dimmable	Yes
CRI	70+
Color	Natural/Cool White Field Selectable
Color Temperature	4000/5000 Kelvin Field Selectable
LED L70 Life Hours	50,000
Wattage	40/60/80/100W Field Selectable 60/90/120/150W Field Selectable
LPW	up to 180
Fixture Type	UFO Highbay

Lumens	6,500/9,400/12,000/14,500 Lumen Field Selectable(100W) 10,000/14,600/19,000/22,500 Lumen Field Selectable(150W)
Voltage	100-277V AC Input
Ratings and Certifications	Wet Location UL / DLC Premium 5.1
Finish	Black
Mounting	Pendant Mount : Hanging Hook Included
Surge Protection
Operating Temp	-40°C ~ 45°C (-40°F ~ 113°F)
Lens
Length	10.7 in.
Height	6.5 in.
Width	10.7 in.
Package Quantity	1
Weight
Warranty	5-Year Limited
