LED UFO Highbay Lumen & CCT Adjustable 24,000 – 38,400 Lumen (OSL-DM-UF)

Products

Wattage & AC Input

CCT

Clear

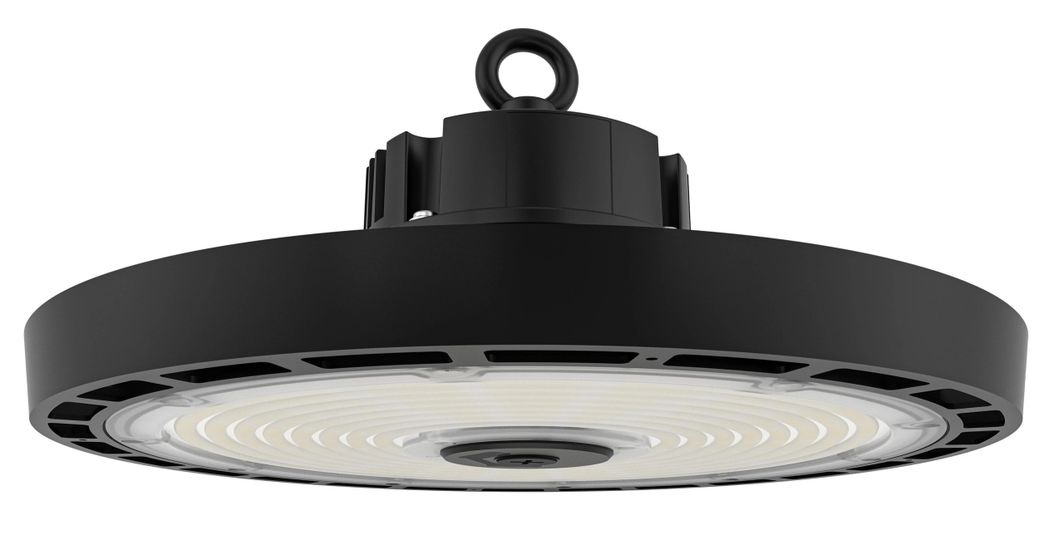

LED UFO highbay adjustable wattage & CCT
Advanced thermal management die-cast aluminum housing
Black finish
High efficiency (160 lumen per watt)
150/200/240W (24,000/32,000/38,400 lumen output) adjustable. 120-277V AC Input
4000K or 5000K adjustable

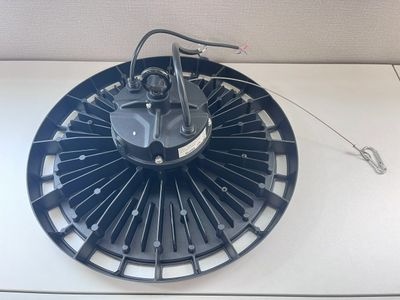

Hanging ring and safety cable included
100-277V AC Input
0-10V dim
Minimum 80 CRI
-40°C ~ 50°C operating temperature
ETL Listed for wet location (IP65)
DLC premium listed
100,000+ hours lifespan (L70>100,000 hours)
5 years warranty

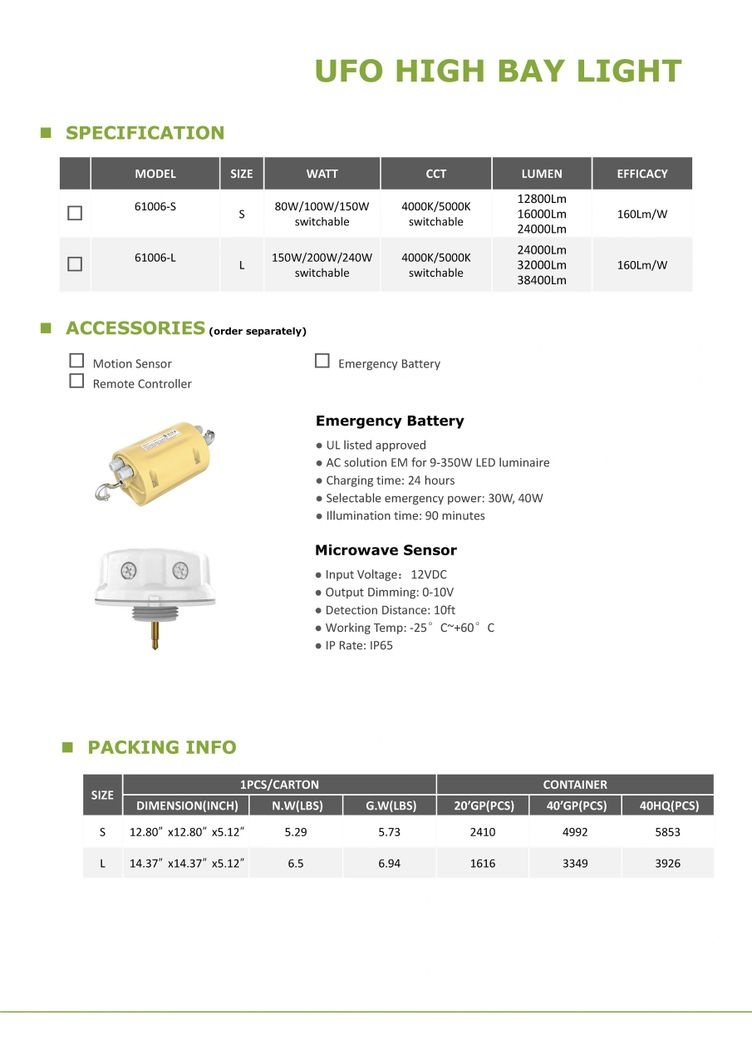

Optional 30W/40W selectable emergency battery backup available (field install)
Optional 0-10V Microwave sensor available. 10ft detection range. -25°C ~ 60°C operating temperature (field install)

Brand	ONE SOURCE LIGHT
MPN (Part No.)	DM-UF150/200/240W – BNN45
SKU	OSL-DM-UF242
DLC Part Number	DM-UF150/200/240W-XXX45
Lighting Technology	LED
LED Chip Type
Dimmable	Yes
CRI	80+
Color	Natural/Cool White Field Selectable
Color Temperature	4000/5000 Kelvin Field Selectable
LED L70 Life Hours	100000
Wattage	150/200/240W Field Selectable
LPW	160
Fixture Type	UFO Highbay

Lumens	24,000/32,000/38,400 Lumen Field Selectable
Voltage	100-277V AC Input
Ratings and Certifications	Wet Location ETL / DLC Premium 5.1 / IP65
Finish	Black
Mounting	Pendant Mount : Hanging Ring Included
Surge Protection	6kV
Operating Temp	-40°C ~ 50°C (-40°F ~ 122°F)
Lens
Length	14.2 in
Height	6.5 in.
Width	14.2 in.
Package Quantity	1
Weight	6.5 lb. per unit
Warranty	5-Year Limited
