LED UFO Highbay Lumen & CCT Adjustable 14,000 – 36,000 Lumen (OSL-MHB08)

Products

Wattage & AC Input

CCT

Clear

LED UFO premium highbay adjustable wattage & CCT
Casting thermally conducts LED heat to optimize performance and long life
With corrosion-resistant powder coating that provides protection and architectural appearance while adapting well to the environment
Black finish
High efficiency (up to 180 lumen per watt)
84/126/168/210W (14,000/20,000/25,000/30,500 lumen output) adjustable. 120-277V AC Input
92/138/184/230W (16,000/23,000/29,000/35,000 lumen output) adjustable. 120-277V AC Input
4000K or 5000K adjustable
Hanging hook and safety cable included
Comes with 2ft SJTW 3-wire cord as standard
100-277V AC Input
0-10V dim
Minimum 80 CRI
-40°C ~ 45°C operating temperature
UL Listed for wet location
DLC premium listed
50,000+ hours lifespan (L70>50,000 hours)
5 years warranty

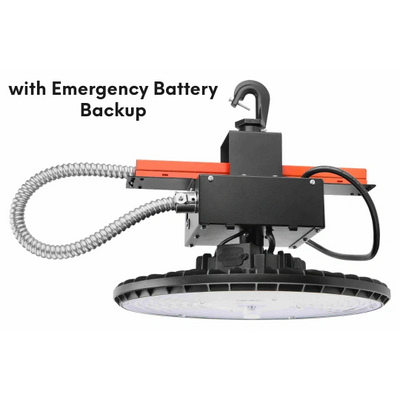

Optional 15W or 25W emergency battery backup available (factory installed)

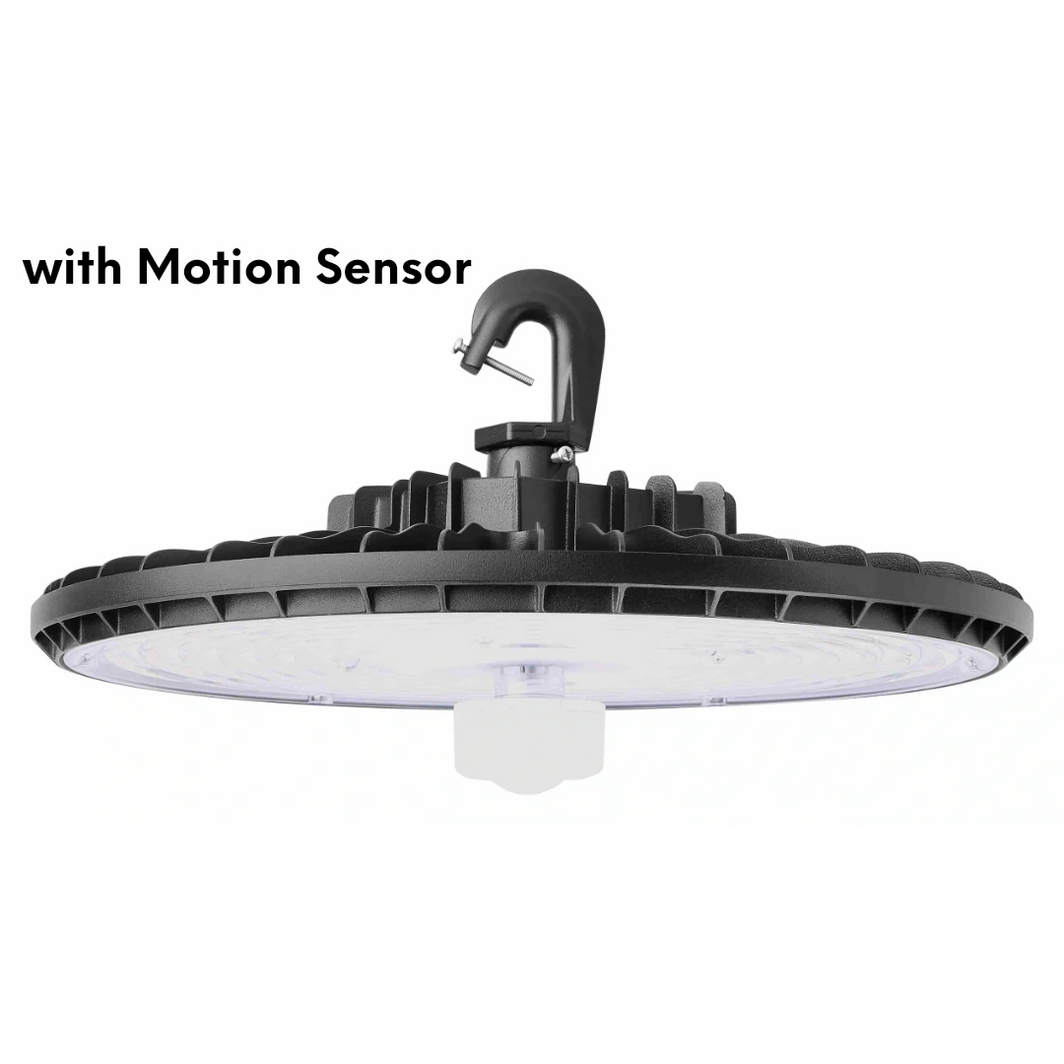

Optional 0-10V PIR sensor available (plug & play field install)
Optional aluminum reflector available
Optional U-bracket available for ceiling surface mount

Brand	ONE SOURCE LIGHT
MPN (Part No.)	MHB08210W27VDDKYYYY2 MHB08230W27VDDKYYYY2
SKU	OSL-MHB08-210 OSL-MHB08-230
DLC Part Number	MHB08210W27VDDK MHB08230W27VDDK
Lighting Technology	LED
LED Chip Type
Dimmable	Yes
CRI	70+
Color	Natural/Cool White Field Selectable
Color Temperature	4000/5000 Kelvin Field Selectable
LED L70 Life Hours	50,000
Wattage	84/126/168/210W Field Selectable 92/138/184/230W Field Selectable
LPW	up to 180
Fixture Type	UFO Highbay

Lumens	14,000/20,000/25,000/30,500 Lumen Field Selectable(210W) 16,000/23,000/29,000/35,000 Lumen Field Selectable(230W)
Voltage	100-277V AC Input
Ratings and Certifications	Wet Location UL / DLC Premium 5.1
Finish	Black
Mounting	Pendant Mount : Hanging Hook Included
Surge Protection
Operating Temp	-40°C ~ 45°C (-40°F ~ 113°F)
Lens
Length	14.1 in
Height	6.5 in.
Width	14.1 in.
Package Quantity	1
Weight
Warranty	5-Year Limited
