LED T-grid Linear 2FT & 4FT (OSL-TB)

Products

Ceiling Type

Size

CCT

Clear

Requires LED driver kit (Click here to purchase)

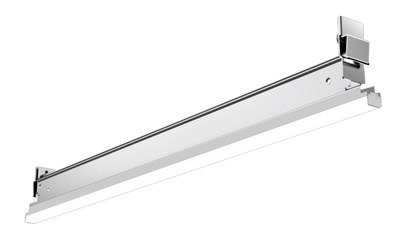

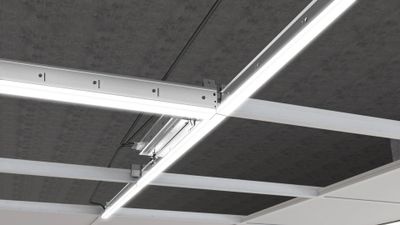

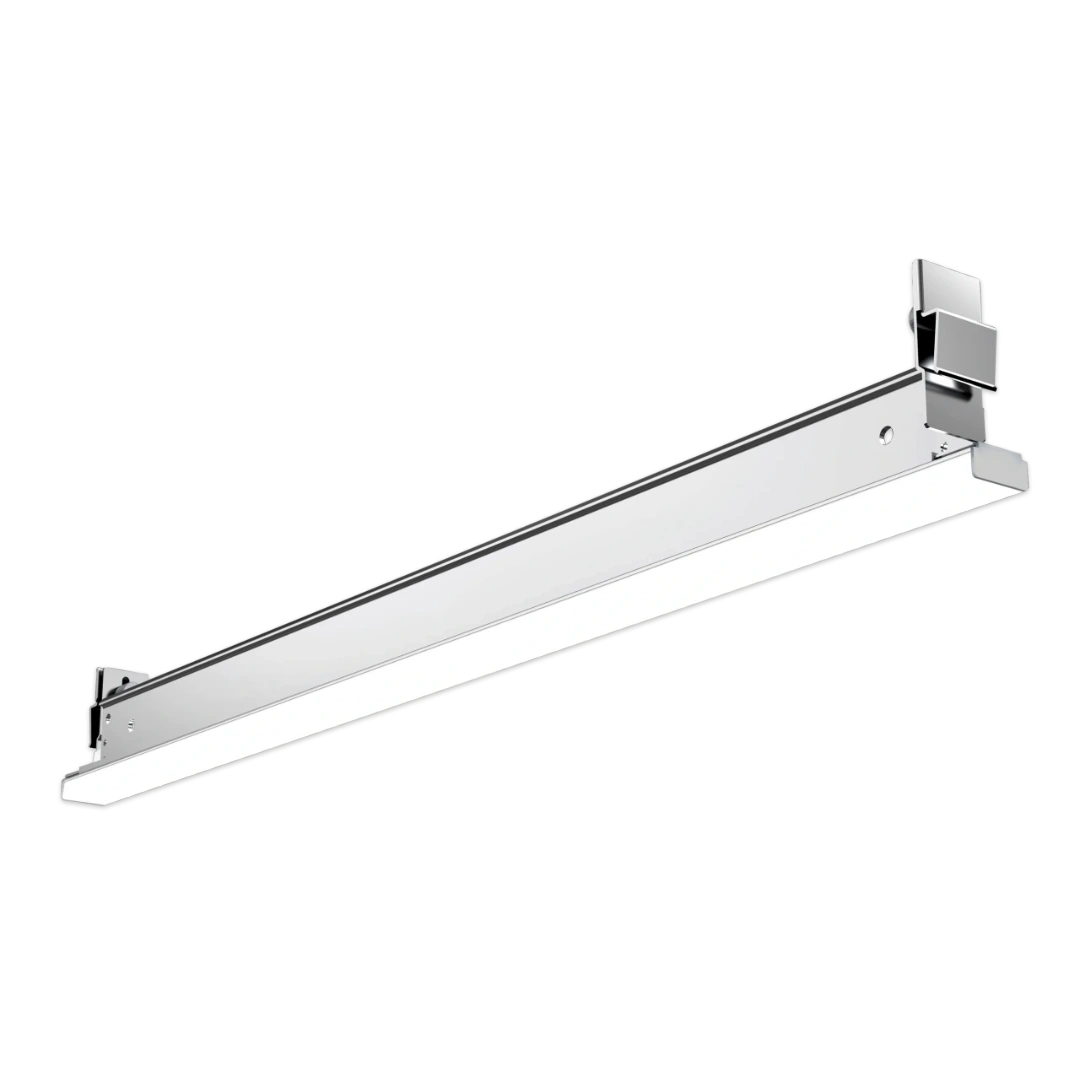

LED Architectural T-grid linear light (available for use on 9/16″ and 15/16″ standard flat T-bar and 9/16″ Slot ceiling grid)
Available in 2, 4ft
Remote LED driver sold separately: 3pcs 2ft LED lights per 30W remote driver, 3pcs 4ft LED lights per 60W remote driver
Max distance from fixtures to remote driver is 8ft with standard cable (included)
Optional 12ft length cable available
Individual or continuous run mount(seamless)
Innovative joining design for easy continuous run in the field

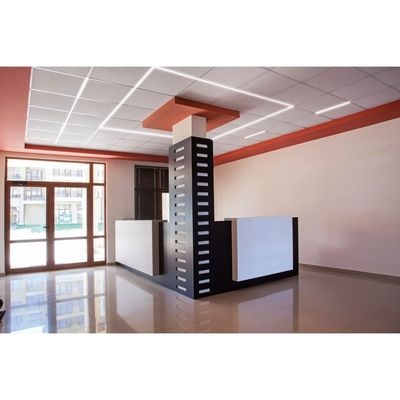

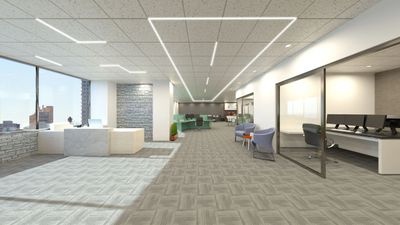

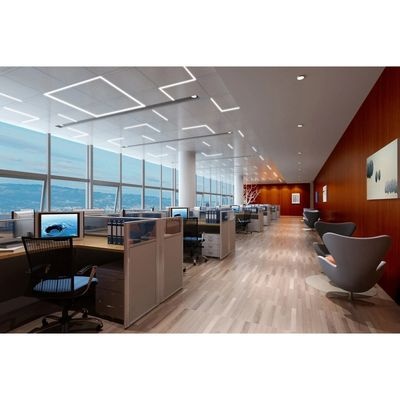

Custom patterns available
Fixed CCT: 3500K or 4000K
9/16″ Grid: 580 lumen per foot (2ft: 1,160lm / 10W, 4ft: 2,320lm / 20W)
15/16″ Grid: 650 lumen per foot (2ft: 1,300lm / 10W, 4ft: 2,600lm / 20W)
130 lumen per watt (15/16″) or 116 lumen per watt (9/16″)

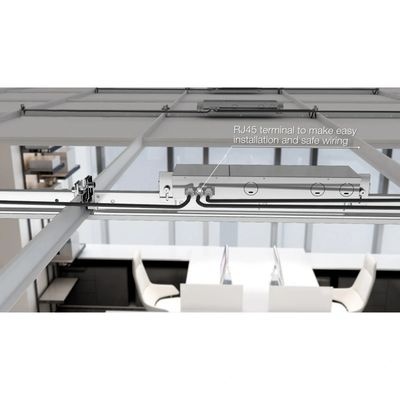

Comes with RJ45 terminal for easy and quick installation
120-277V AC Input
1-10V Continuous Dim
Minimum 80 CRI
UL Listed for damp location
DLC Listed
IC rated
US Patent (10125934)
50,000 hours with 87.8% of lumen maintenance in 25°C ambient temperature
5 years warranty

Brand	ONE SOURCE LIGHT
MPN (Part No.)	TB2-DM TB4-DM
SKU	OSL-TB2-DM OSL-TB4-DM
DLC Part Number	TB2-DM TB4-DM
Lighting Technology	LED
LED Chip Type	–
Dimmable	Yes
CRI	80+
Color	Warm/Natural White
Color Temperature	3000/3500/4000 Kelvin
LED L70 Life Hours	50,000
Wattage	10W (2FT) 20W (4FT)
LPW	up to 130
Fixture Type	Linear Architectural Recessed

Lumens	1,160 Lumen (2FT 9/16″ Grid) 1,300 Lumen (2FT 15/16″ Grid) 2,320 Lumen (4FT 9/16″ Grid) 2,600 Lumen (4FT 15/16″ Grid)
Voltage	100-277V AC Input
Ratings and Certifications	Damp Location UL / DLC Standard 5.1 / IC Rated
Finish	Aluminum Housing
Mounting	Recessed Mount : T-bar Ceilling
Surge Protection	–
Operating Temp	-20°C ~ 40°C (-4°F ~ 104°F)
Lens
Length	23.92 in. (2FT) 47.92 in. (4FT)
Height	0.48 in. (9/16″ Grid. Lens) 0.51 in. (15/16″ Grid. Lens)
Width	0.56 in. (9/16″ Grid. Lens) 0.95 in. (15/16″ Grid. Lens)
Package Quantity	1
Weight
Warranty	5-Year Limited
