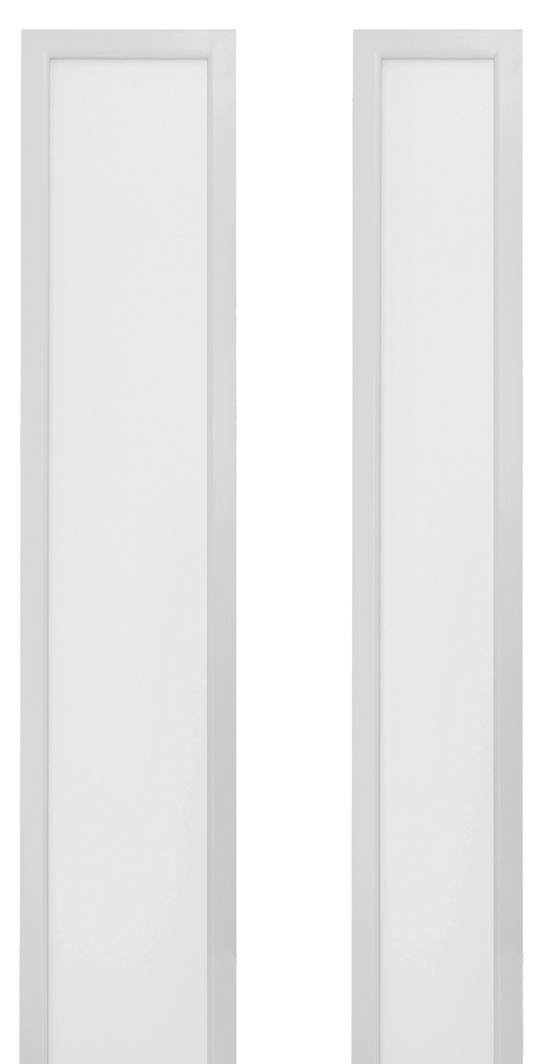

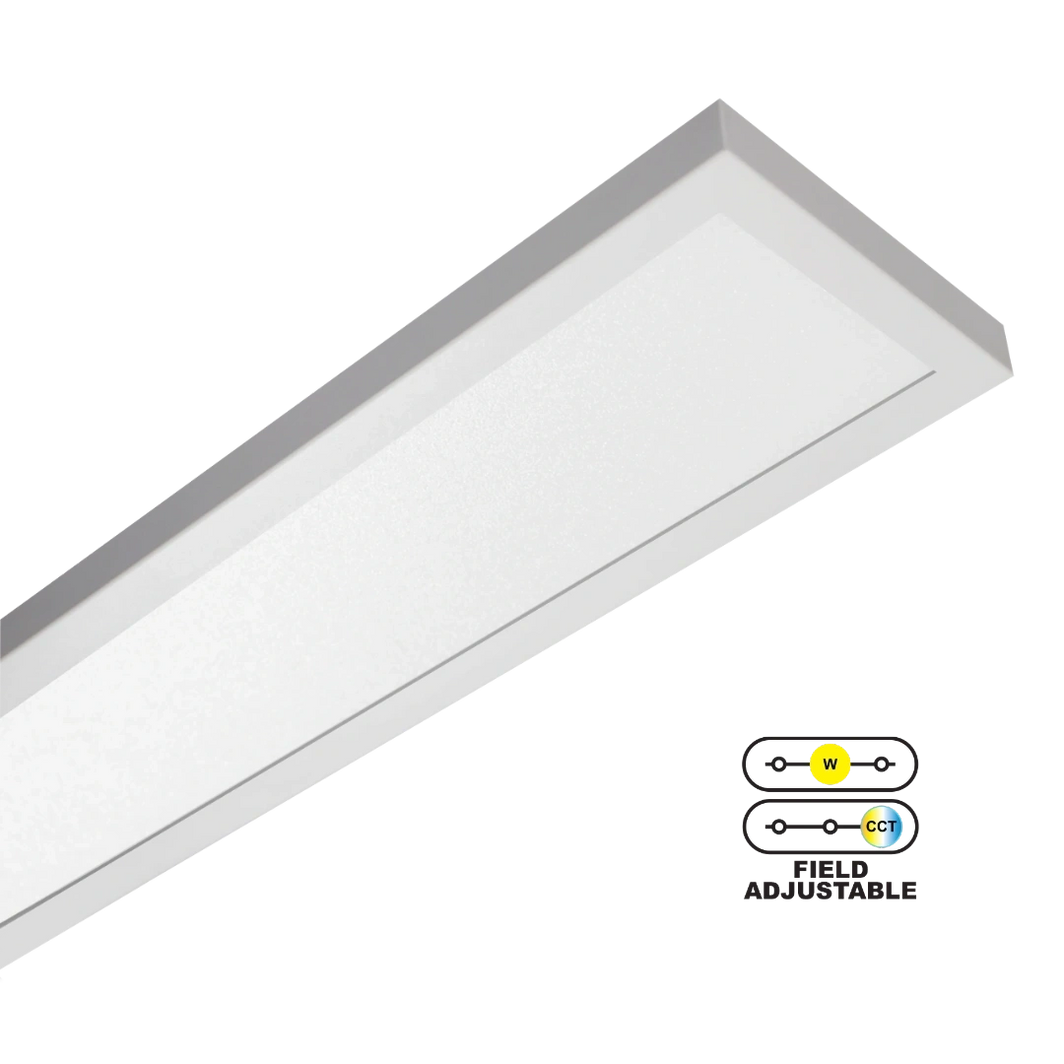

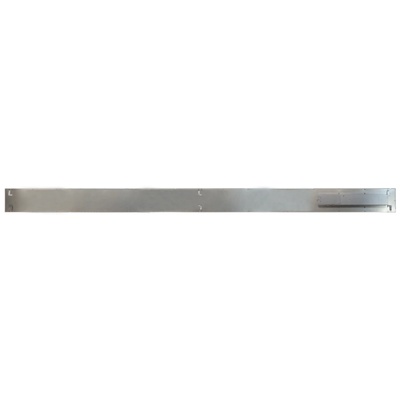

LED Slim Linear Recessed 4FT (OSL-LR)

LED Slim Linear Recessed 4FT (OSL-LR) - Image 2

LED Slim Linear Recessed 4FT (OSL-LR) - Image 3

LED Slim Linear Recessed 4FT (OSL-LR) - Image 4

LED Slim Linear Recessed 4FT (OSL-LR) - Image 5

LED Slim Linear Recessed 4FT (OSL-LR) - Image 6

LED Slim Linear Recessed 4FT (OSL-LR) - Image 7

LED Slim Linear Recessed 4FT (OSL-LR) - Image 9

LED Slim Linear Recessed 4FT (OSL-LR) - Image 10

LED Slim Linear Recessed 4FT (OSL-LR)

RESOURCES & DOWNLOADS

(0 Reviews)

$125.00 – $135.00

Size & Wattage

CCT

Clear

*Size & Wattage

*CCT

Reset options
8W Emergency Battery Backup (Field Install) (optional)

Details

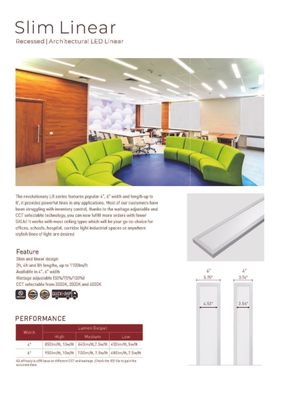

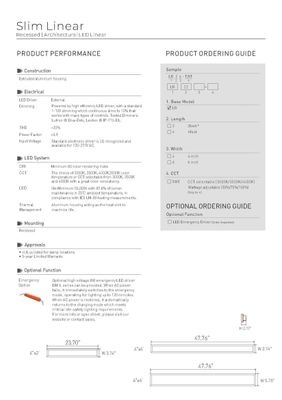

Brochures & Spec Sheets

Description

LED Architectural recessed linear light (Click here for surface mount version)
Extruded aluminum housing
Ultra-thin profile (0.59″)
Available in 2, 4ft
Innovative slim and linear design for easy installation in the field
Available sizes: 2ft x 6in, 4ft x 4in, 4ft x 6in
Internal LED driver
Compatible with most recessed ceiling types (T-bar, Slot)
CCT selectable from 3000K, 3500K and 4000K
4ft x 4in : 20/30/40W Selectable (1,720/2,560/3,400lm) – 85lm/w
4ft x 6in : 40W fixed (3,800lm) – 95lm/w
120-277V AC Input
1-10V Continuous Dim
Minimum 80 CRI
UL Listed for damp location
50,000 hours with 87.8% of lumen maintenance in 25°C ambient temperature
5 years warranty

Product Attributes

Brand	ONE SOURCE LIGHT
MPN (Part No.)	LR44-TWT LR46-TWT
SKU	OSL-LR44-TWT OSL-LR46-TWT
DLC Part Number	–
Lighting Technology	LED
LED Chip Type	–
Dimmable	Yes
CRI	80+
Color	Warm/Natural White Field Selectable
Color Temperature	3000/3500/4000 Kelvin Field Selectable
LED L70 Life Hours	50,000
Wattage	20/30/40W Field Selectable (4FT x 4IN.) 40W (4FT x 6IN.)
LPW	85 (4FT x 4IN.) 95 (4FT x 6IN.)
Fixture Type	Linear Architectural Recessed

Lumens	1,720/2,560/3,400 Lumen Field Selectable (4FT x 4IN.) 3,800 Lumen (4FT x 6IN.)
Voltage	100-277V AC Input
Ratings and Certifications	Damp Location UL
Finish	White
Mounting	Recessed Mount : T-bar Ceilling
Surge Protection
Operating Temp	-20°C ~ 40°C (-4°F ~ 104°F)
Lens
Length	47.76 in.
Height	2.17 in.
Width	3.74 in. (4FT x 4IN.) 5.75 in. (4FT x 6IN.)
Package Quantity	1
Weight
Warranty	5-Year Limited
