LED Slim Canopy Square Fixed Wattage (OSL-MCP05)

Products

Wattage & AC Input

CCT

Dimming

Clear

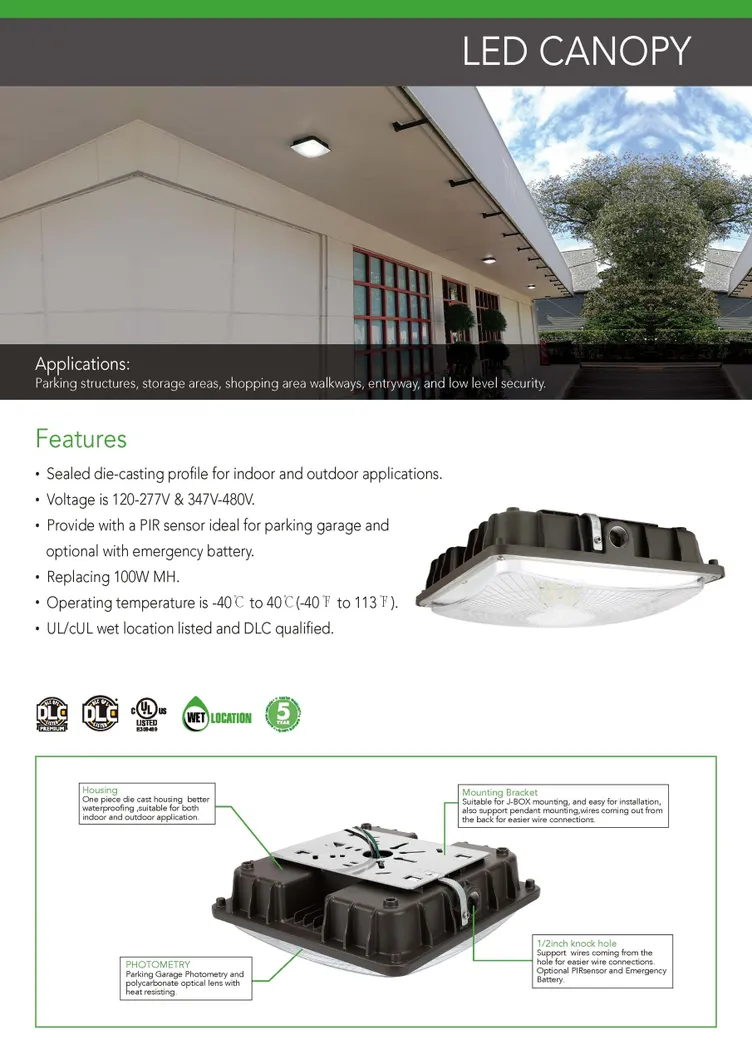

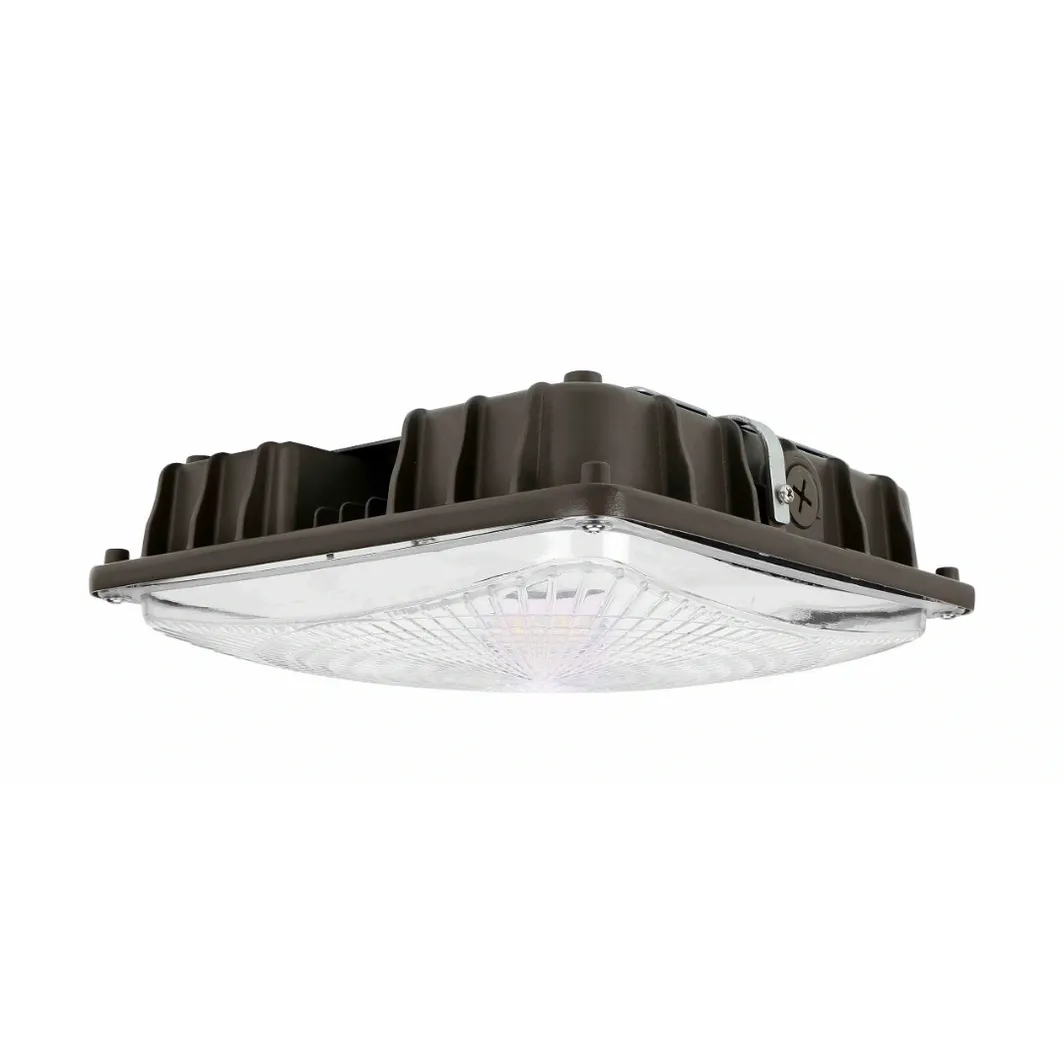

LED slim canopy square fixed wattage and CCT
Ideal for parking structure, storage areas, walkways and entryways
One-piece die-cast aluminum housing for waterproofing. Suitable for both indoor and outdoor use

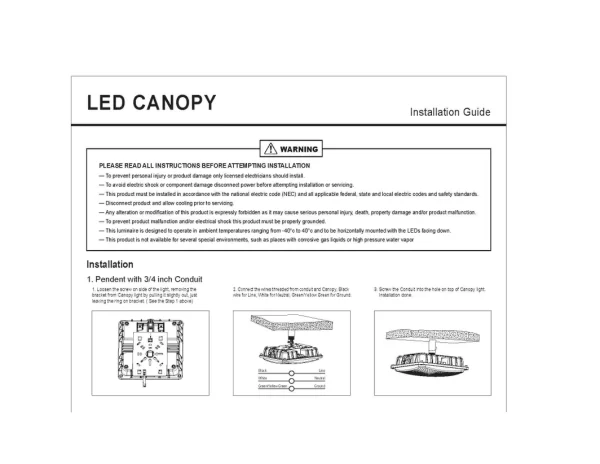

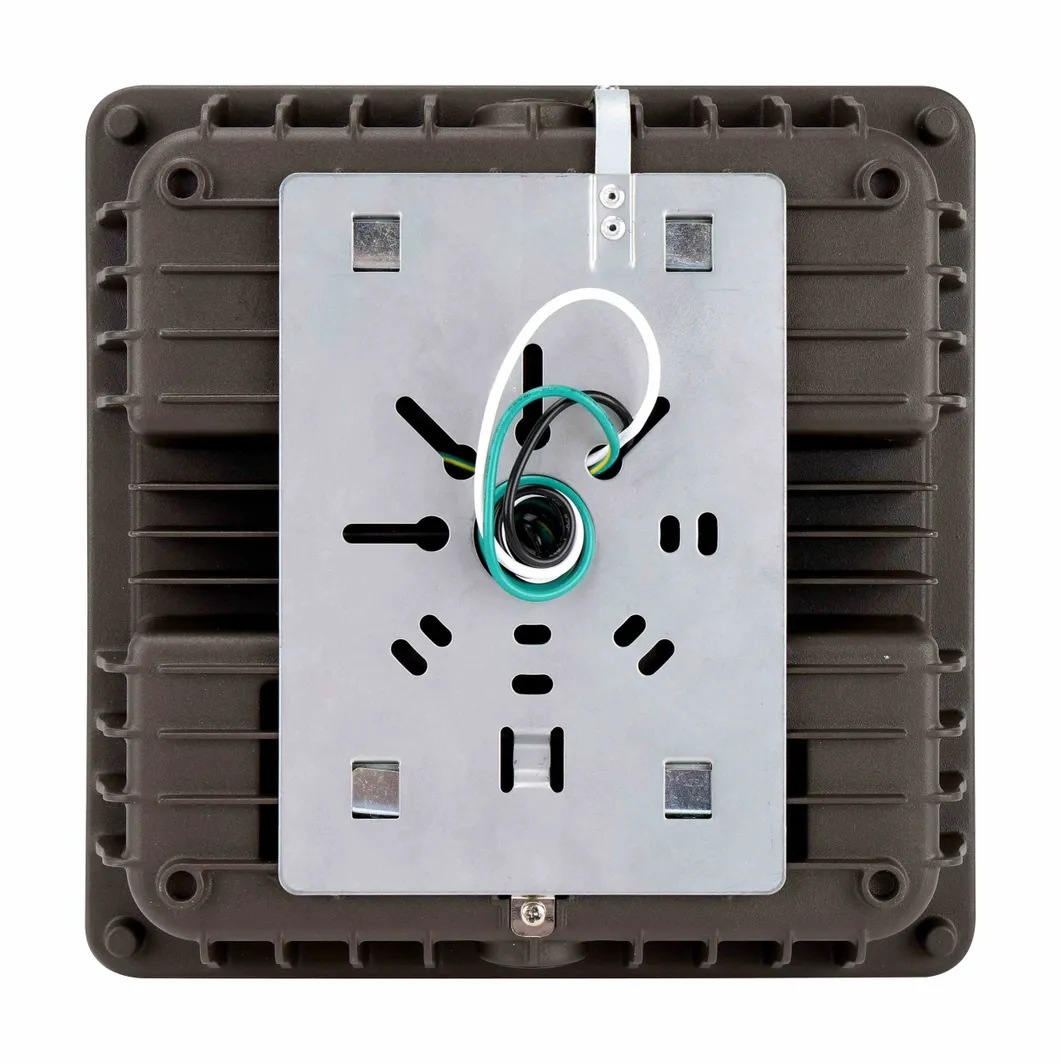

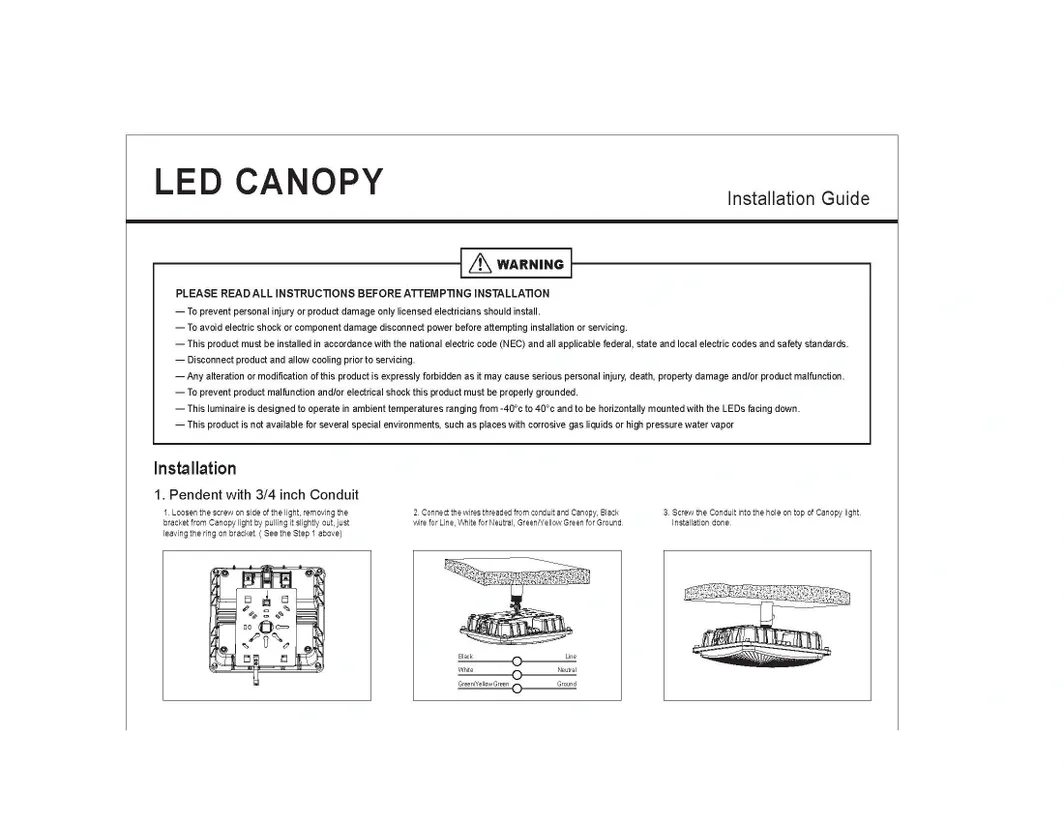

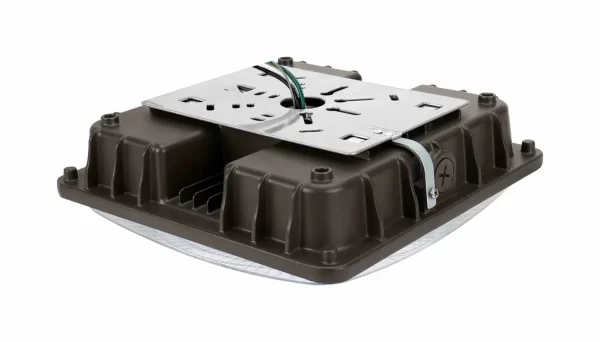

Universal mounting bracket for easy installation on J-box and pendant mount.
High efficiency (up to 141 lumen per watt)
27W: 3,750 lumen(4000K) or 3,800 lumen(5000K) 120-277V AC Input
40W: 5,350 lumen(4000K) or 5,450 lumen(5000K) 120-277V or 347-480V AC Input
60W: 7,800 lumen(4000K) or 8,000 lumen(5000K) 120-277V or 347-480V AC Input
4000K or 5000K CCT (Not field adjustable)
Non-dimming fixtures are only available in 5000K
0-10V dim or Non-dim
Minimum 70 CRI
-40°F ~ 104°F (-40°C ~ 40°C) operating temperature
UL Listed for wet location

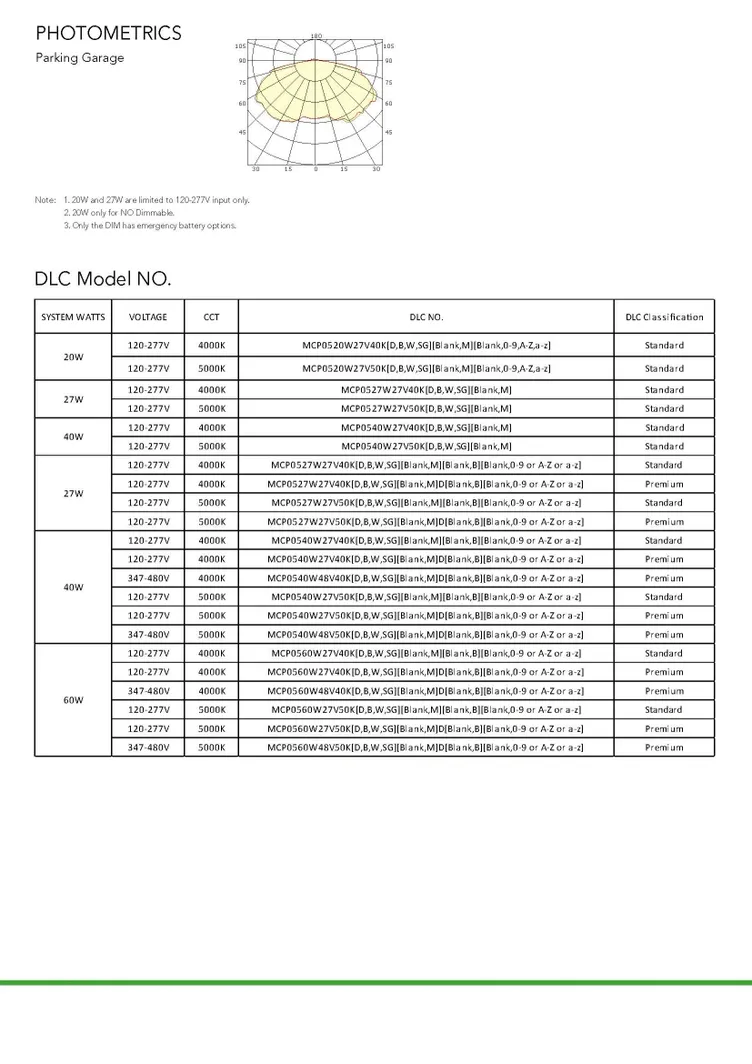

DLC premium listed (Non dimming fixtures are not DLC listed)
50,000+ hours lifespan
5 years warranty

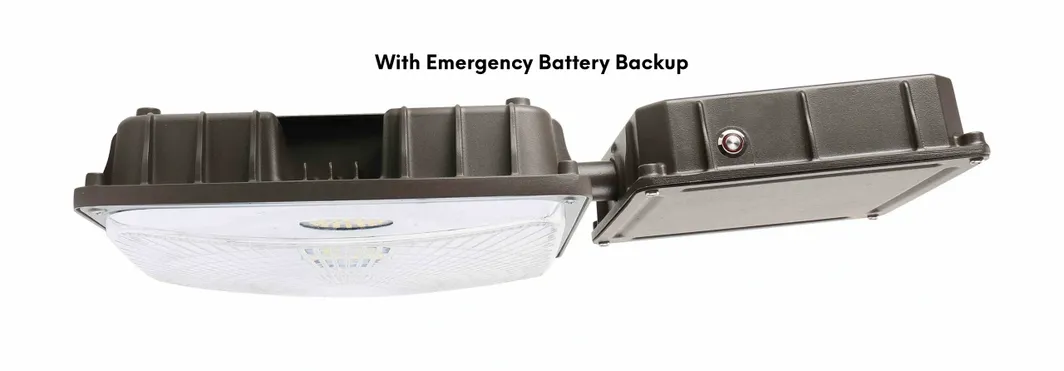

Optional 8W emergency battery backup available (factory installed) – Only available with 0-10V dimming units

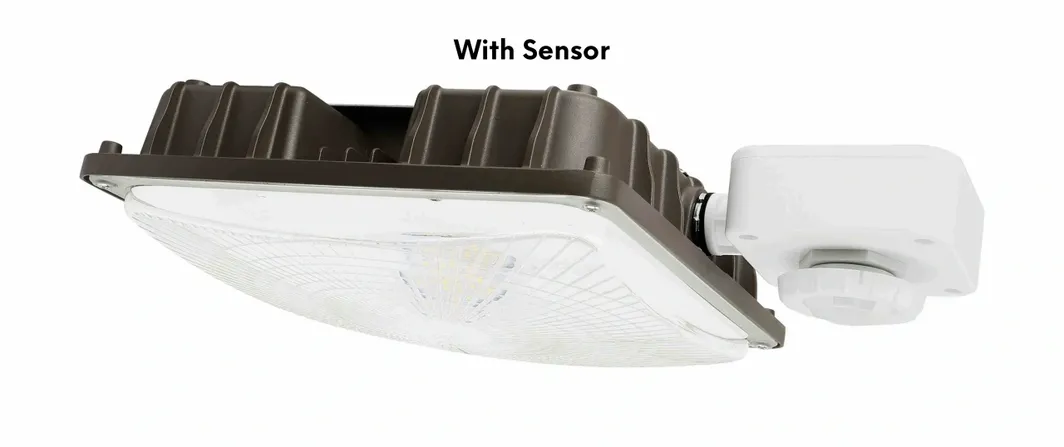

Optional on/off or DIM motion sensor available (factory install)

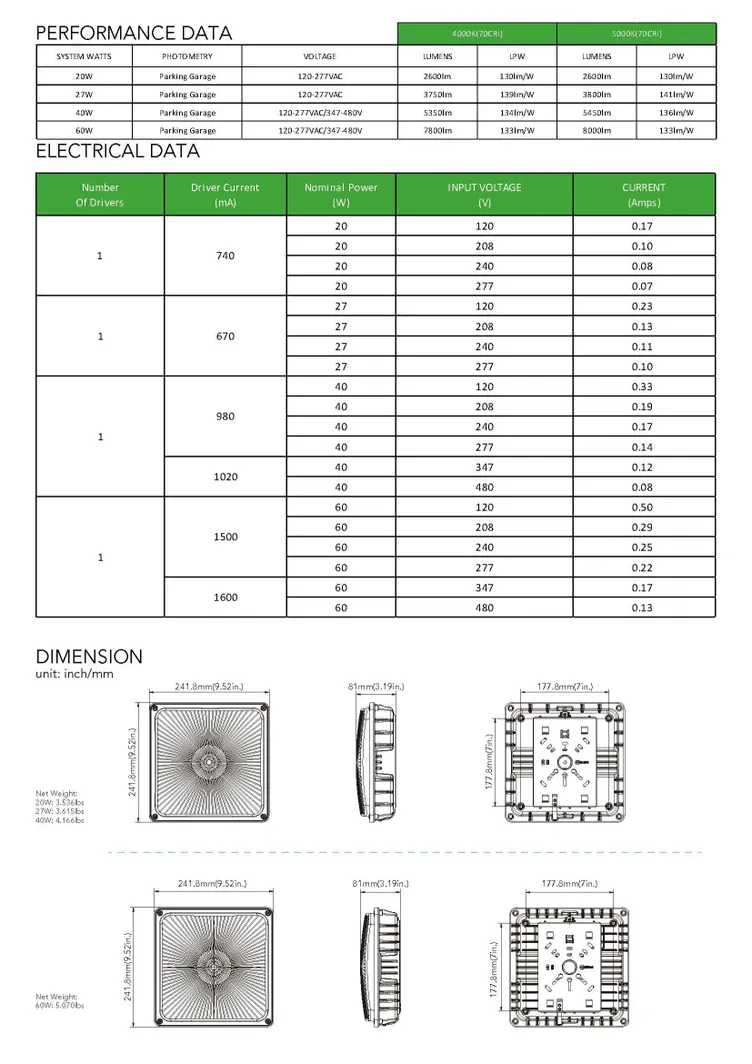

Lumens	3,750 Lumen (27W) 5,350 Lumen (40W) 7,800 Lumen (60W)
Voltage	120-277V or 347-480V AC Input
Ratings and Certifications	Wet Location UL / DLC Premium 5.1
Finish	Dark Bronze

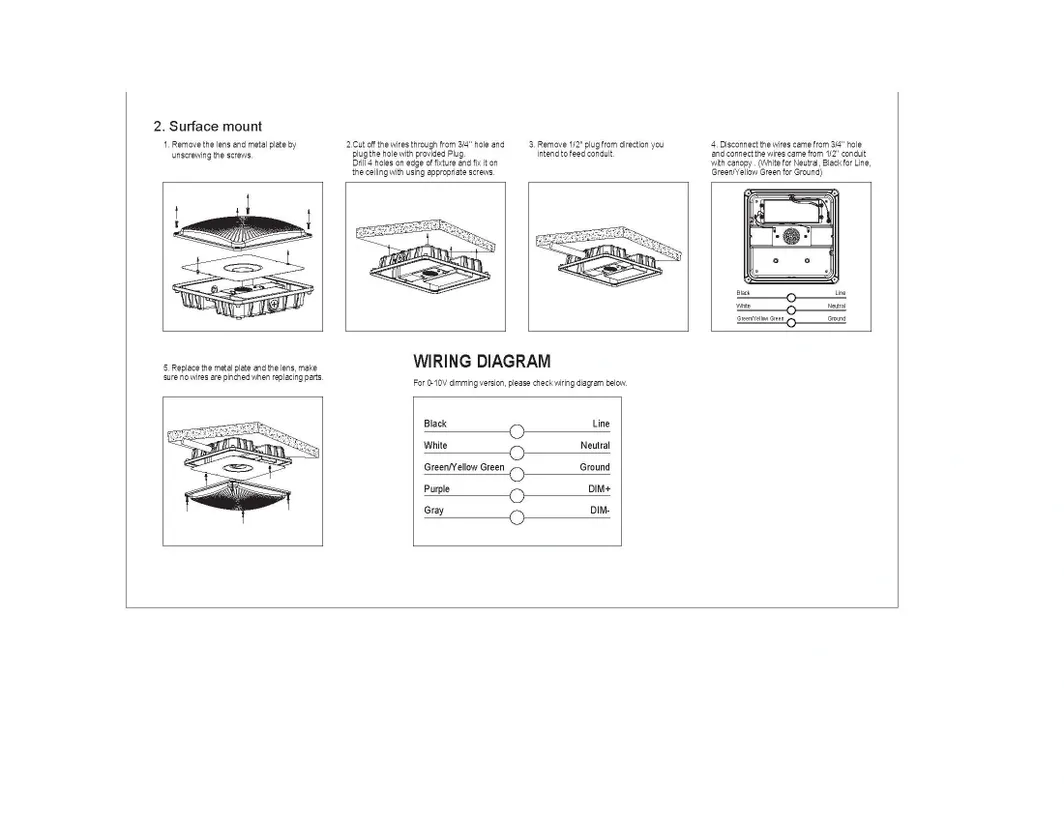

Mounting	Surface Mount
Surge Protection
Operating Temp	-40°C ~ 40°C (-40°F ~ 104°F)
Lens	Polycarbonate
Length	9.52 in.
Height	3.19 in.
Width	9.52 in.
Package Quantity	1
Weight	3.61 lb. per unit (27W) 4.16 lb. per unit (40W) 5.07 lb. per unit (60W)
Warranty	5-Year Limited
