LED Slim Canopy Square Economic Light (Pack of 2)

RESOURCES & DOWNLOADS

(0 Reviews)

$124.00

Details



    Description

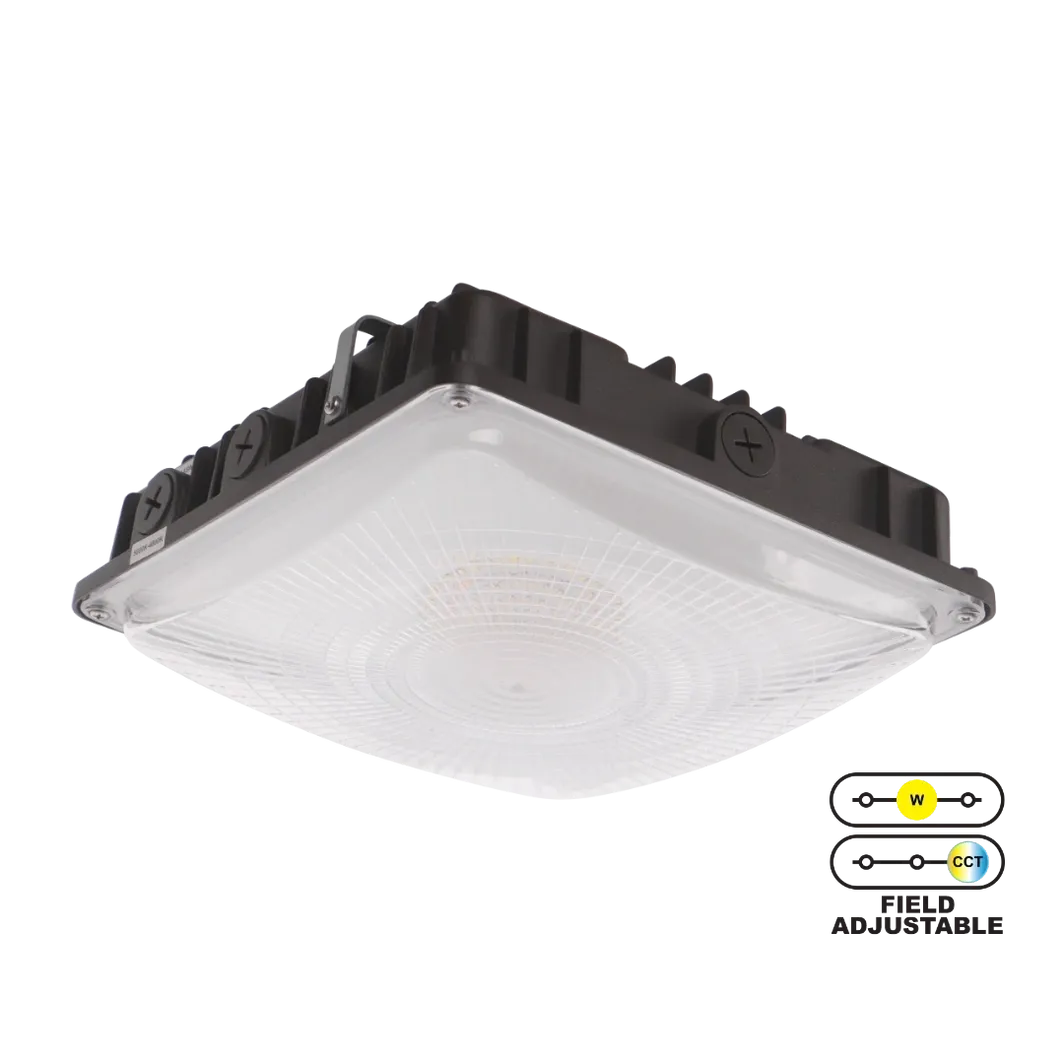

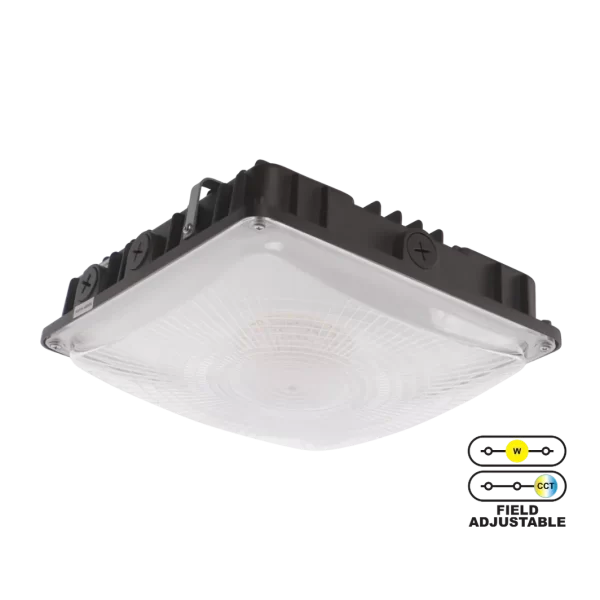

  • LED slim canopy square adjustable wattage and CCT
  • Pack of 2
  • Ideal for parking structure, storage areas, walkways and entryways
  • One-piece die-cast aluminum housing for waterproofing. Suitable for both indoor and outdoor use

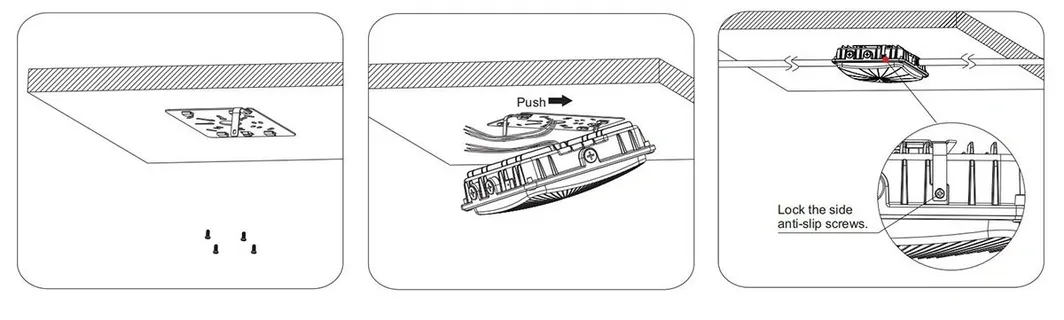

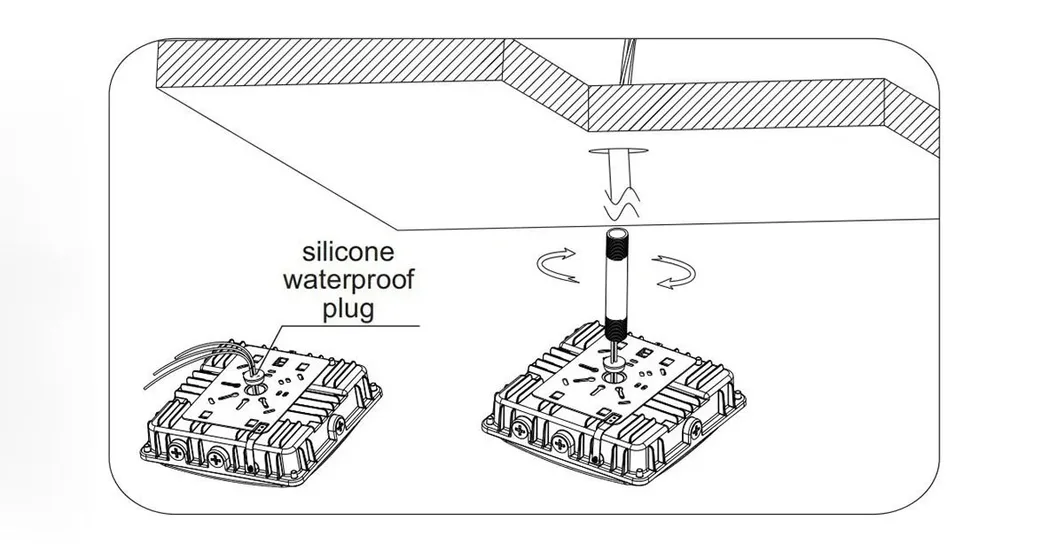

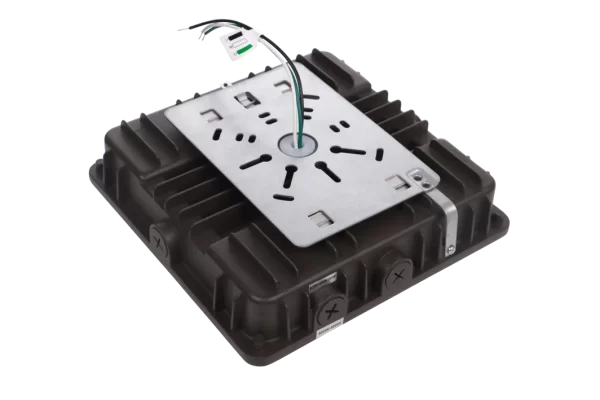

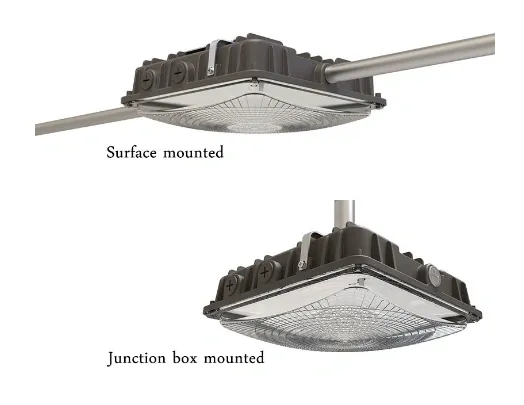

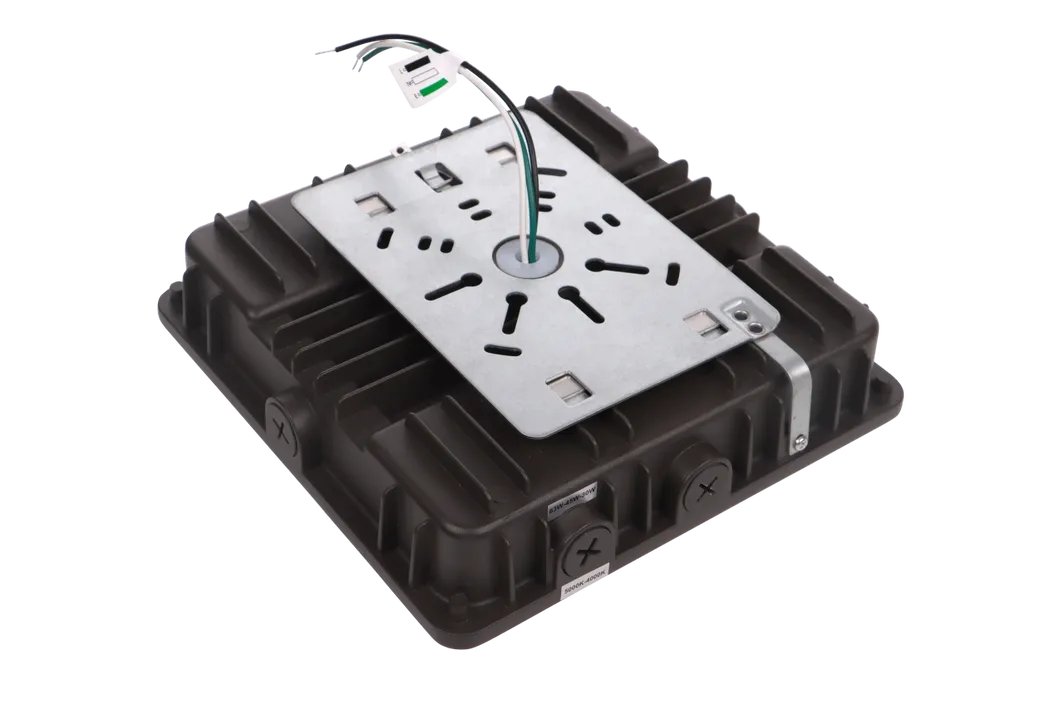

  • Universal mounting bracket for easy installation on J-box and pendant mount.
  • High efficiency (up to 135 lumen per watt)

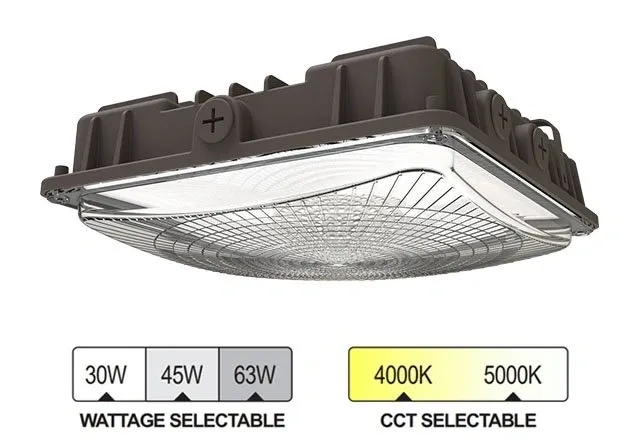

  • 30/45/63W adjustable (4,050/6,075/8,505 lumen output) 120-277V AC Input
  • 4000K or 5000K CCT field adjustable
  • 0-10V dim
  • Minimum 70 CRI
  • 160° beam angle
  • UL Listed for wet location
  • DLC premium listed
  • 50,000+ hours lifespan
  • 5 years warranty

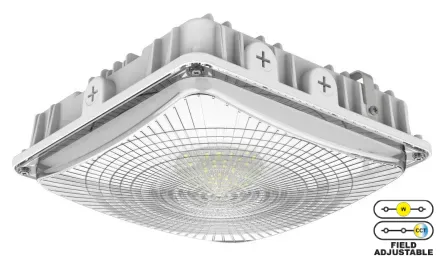

  • Dark Bronze or White finish available

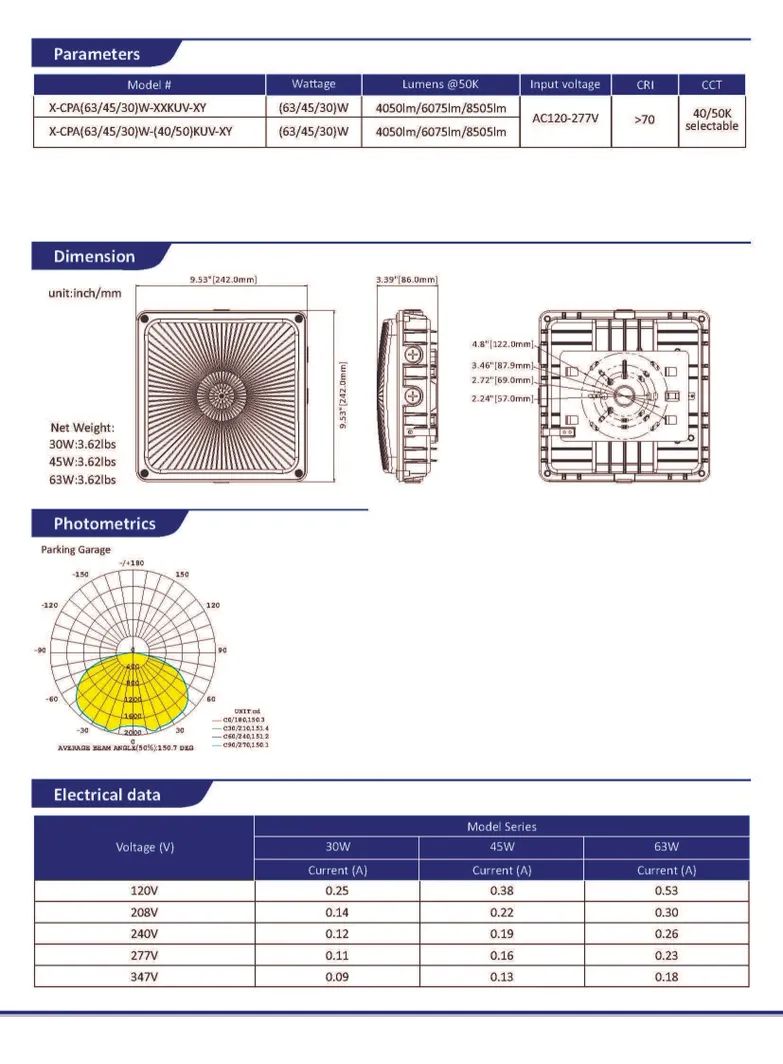

   Product Attributes

Brand ONE SOURCE LIGHT
MPN (Part No.) X-CPA
SKU OSL-X-CPA
DLC Part Number X-CPA
Lighting Technology LED
LED Chip Type
Dimmable Yes
CRI 70+
Color Natural/Cool White Field Selectable
Color Temperature 4,000/5,000 Kelvin Field Selectable
LED L70 Life Hours 50,000
Wattage 30/45/63W Field Selectable
LPW 135
Fixture Type Canopy Light
Lumens 4,050/6,075/8,505 Lumen Field Selectable
Voltage 120-277V AC Input
Ratings and Certifications Wet Location UL / DLC Premium 5.1
Finish Dark Bronze
Mounting Surface Mount
Surge Protection
Operating Temp -40°C ~ 45°C (-40°F ~ 113°F)
Lens Polycarbonate
Length 9.53 in.
Height 3.39 in.
Width 9.53 in.
Package Quantity 1
Weight 3.62 lb. per unit
Warranty 5-Year Limited
