LED Meta Vertical Linear Pendant 4FT (OSL-LV4-ITW)

RESOURCES & DOWNLOADS

(0 Reviews)

$320.00

  • *Size & Downlight

    *CCT

    *Finish

    Reset options

    Mounting Kit

    Emergency Battery Backup (Field Install) (optional)

Details



    Description

  • LED Architectural pendant linear light
  • Available in 4ft

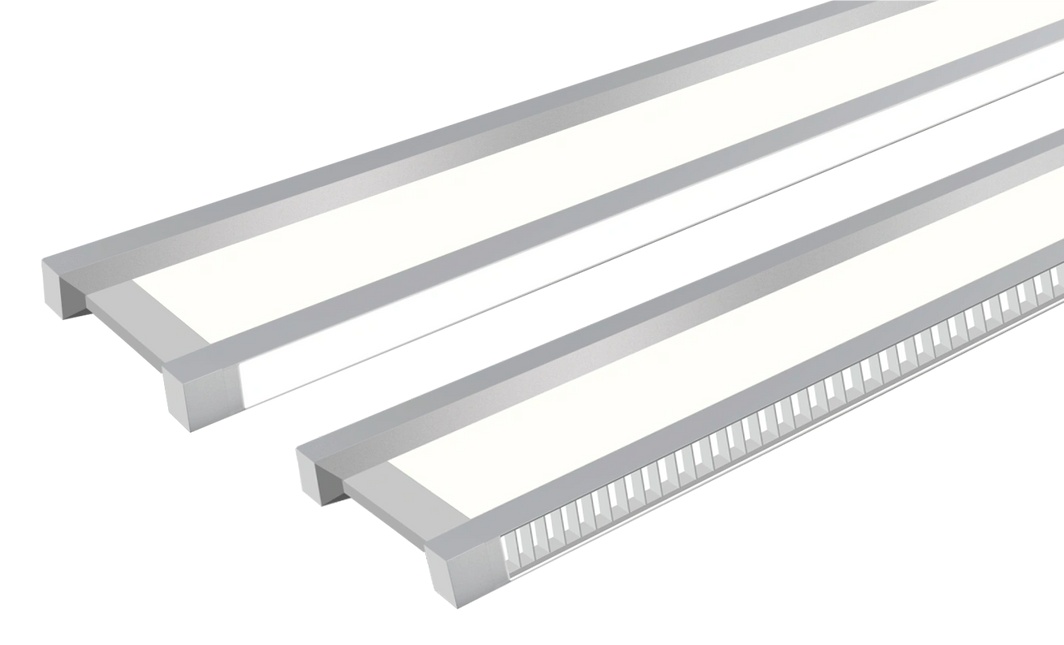

  • Transparent vertical optics with downlight options (diffuser or louver)
  • Innovative joining design for easy continuous run in the field
  • Compatible with hard ceiling(standard) and drop ceiling(optional)
  • CCT selectable from 3000K, 3500K and 4000K
  • 1,100 lm/ft (110 lm/w)
  • 120-277V AC Input
  • 1-10V Continuous Dim
  • Minimum 80 CRI
  • Includes power cord and aircraft cable
  • UL Listed
  • 50,000 hours with 87.8% of lumen maintenance in 25°C ambient temperature
  • 5 years warranty

   Product Attributes

Brand ONE SOURCE LIGHT
MPN (Part No.) LV4-ITW
SKU OSL-LV4-ITW
DLC Part Number
Lighting Technology LED
LED Chip Type
Dimmable Yes
CRI 80+
Color Warm/Natural White Field Selectable
Color Temperature 3000/3500/4000 Kelvin Field Selectable
LED L70 Life Hours 50,000
Wattage 40W
LPW 110
Fixture Type Linear Architectural
Lumens 4,400 Lumen(Diffuser)
3,200 Lumen(Louver)
Voltage 100-277V AC Input
Ratings and Certifications Damp Location UL
Finish White
Mounting Pendant Mount
Surge Protection
Operating Temp -20°C ~ 40°C (-4°F ~ 104°F)
Lens PMMA
Length 46.50 in.
Height 7.84 in.
Width 1.30 in.
Package Quantity 1
Weight
Warranty 5-Year Limited
