LED Linear Vapor Tight Lumen & CCT Adjustable 4FT (OSL-WSD-VP)

RESOURCES & DOWNLOADS

(0 Reviews)

$124.00

  • *Size & Wattage

    *CCT

    Reset options

    Emergency Battery Backup (Field Install) (optional)

Details



    Description

  • LED linear vapor tight
  • Power and CCT adjustable
  • 4FT: 34/38/45W (4941/5423/6494 lumen output) 135lm/w

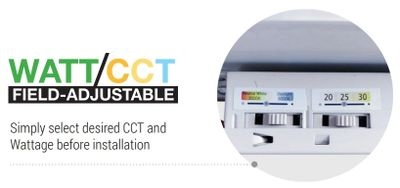

  • CCT selectable from 3500K, 4000K and 5000K
  • Available in 2FT, 4FT and 8FT size
  • Smooth and comfortable light
  • V-hook and surface mounting brackets included
  • 120-277V AC Input
  • 0-10V Continuous Dim
  • Minimum 80 CRI
  • -40°F ~ 104°F (-40°C ~ 40°C) operating temperature
  • 100,000+ hours LED life span (L70)
  • UL Listed for wet location (covered ceiling)
  • DLC premium Listed
  • 5 years warranty
  • ROHS compliant
  • Optional emergency battery backup available (field install)

   Product Attributes

Brand ONE SOURCE LIGHT
MPN (Part No.) WSD-VP-4FT343845W27-3545K
SKU OSL-WSD-VP-4
DLC Part Number WSD-VP-4FT343845W27-3545K
Lighting Technology LED
LED Chip Type
Dimmable Yes
CRI 80+
Color Natural/Cool White Field Selectable
Color Temperature 3500/4000/5000 Kelvin Field Selectable
LED L70 Life Hours 100,000
Wattage 34/38/45W Field Selectable
LPW 135
Fixture Type Vapor Tight
Lumens 4,941/5,423/6,494 Lumen Field Selectable
Voltage 100-277V AC Input
Ratings and Certifications Wet Location UL / DLC Standard 5.1
Finish Gray
Mounting Surface Mount
Surge Protection
Operating Temp -40°C ~ 40°C (-40°F ~ 104°F)
Lens Polycarbonate
Length 49.8 in.
Height 3.5 in.
Width 5.0 in.
Package Quantity 1
Weight 5.86 lb. per unit
Warranty 5-Year Limited
