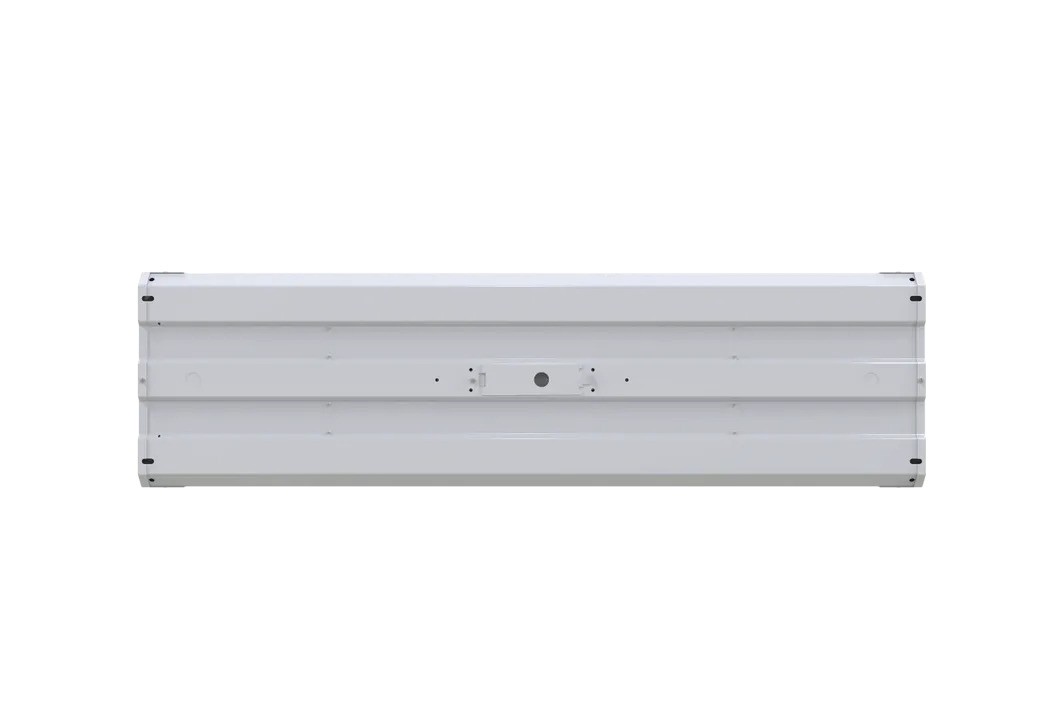

LED Linear Highbay Wattage Selectable 25200 - 44800 Lumen (Pack of 2) (OSL-HB)

LED Linear Highbay Wattage Selectable 25200 - 44800 Lumen (Pack of 2) (OSL-HB) - Image 2

LED Linear Highbay Wattage Selectable 25200 – 44800 Lumen (Pack of 2) (OSL-HB)

RESOURCES & DOWNLOADS

(0 Reviews)

$260.00 – $310.00

Wattage & Size

CCT

Pack

Clear

*Wattage & Size

*CCT

*Pack

Reset options
Motion Sensor (Field Install) (optional)
25W Emergency Battery Backup (Field Install) (optional)

Details

Brochures & Spec Sheets

Description

LED linear highbay
Wattage adjustable
220W(4ft): 180/200/220W adjustable (25,200/28,000/30,800 lumen output) 140lm/w
320W(4ft): 225/275/320W adjustable (31,500/38,500/44,800 lumen output) 140lm/w
Smooth and comfortable light
100-347V AC Input
0-10V dim
Minimum 80 CRI
-20°C ~ 40°C operating temperature
UL Listed for damp location
DLC premium listed
50,000+ hours lifespan
5 years warranty
Optional sensor and emergency battery backup available (field installation)

Product Attributes

Brand	ONE SOURCE LIGHT
MPN (Part No.)	GL-HB11-320W-L GL-HB6-220W-L
SKU	OSL-HB11-320 2-PACK OSL-HB6-220 2-PACK
DLC Part Number	OSL-HB11-320 2-PACK OSL-HB6-220 2-PACK
Lighting Technology	LED
LED Chip Type	Seoul Semiconductor/SMD 2835
Dimmable	Yes
CRI	80+
Color	Cool White
Color Temperature	5000 Kelvin
LED L70 Life Hours	50,000
Wattage	225/275/320W 180/200/220W
LPW	140
Fixture Type	Linear Highbay

Lumens	31,500/38,500/44,800 Lumen Field Selectable(320W) 25,200/28,000/30,800 Lumen Field Selectable(220W)
Voltage	100-347V AC Input
Ratings and Certifications	Damp Location UL / DLC Premium 5.1
Finish	White
Mounting	Pendant Mount : V-hook and Chain (included)
Surge Protection
Operating Temp	-20°C ~ 40°C (-4°F ~ 104°F)
Lens	Polystyrene
Length	46.6 in.
Height	2.2 in.
Width	2.2 in.
Package Quantity	2
Weight	23.1 lb. per unit
Warranty	5-Year Limited
