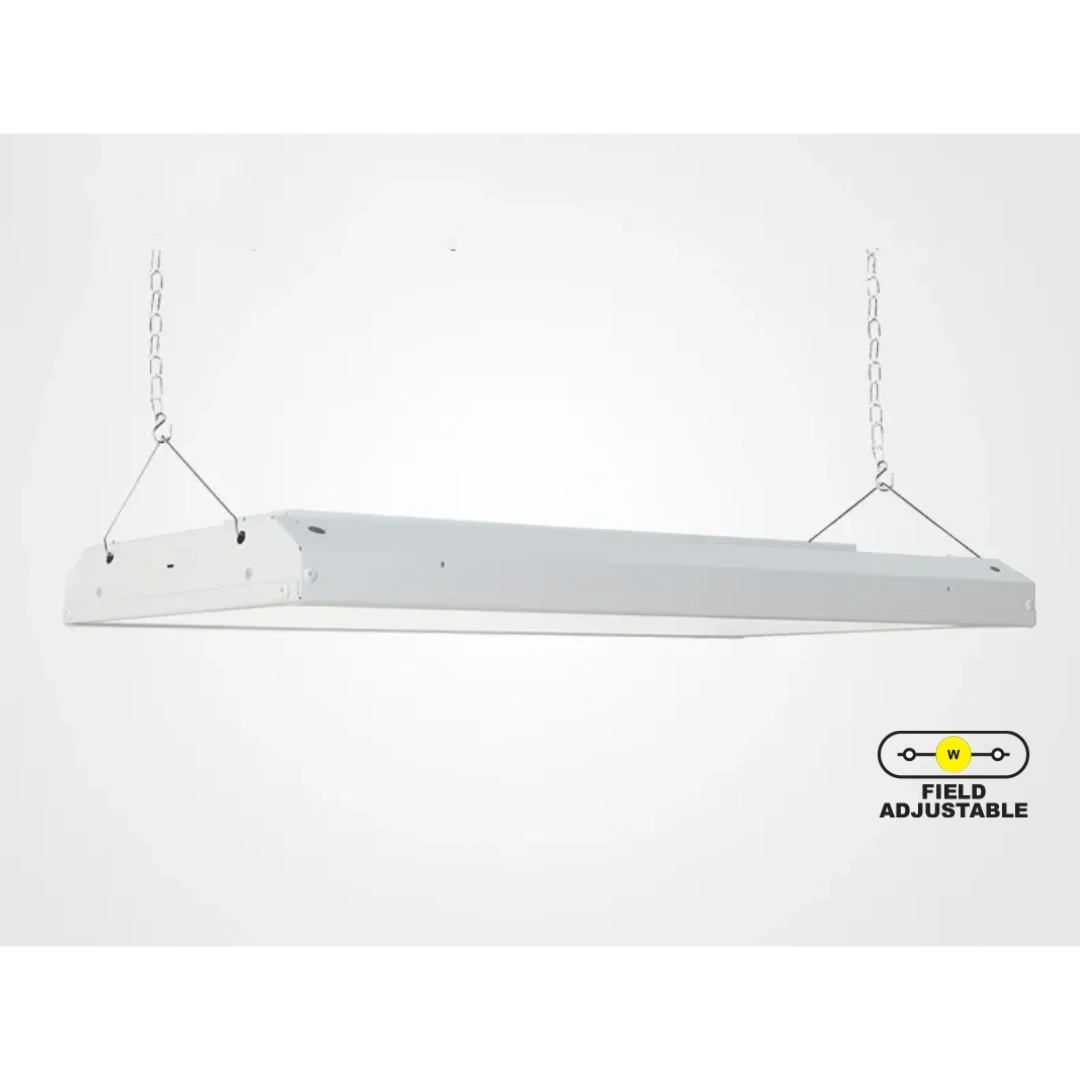

LED Linear Highbay 4ft CCT Selectable 20000 - 50000 Lumen (Pack of 2) (OSL-DM-HB)

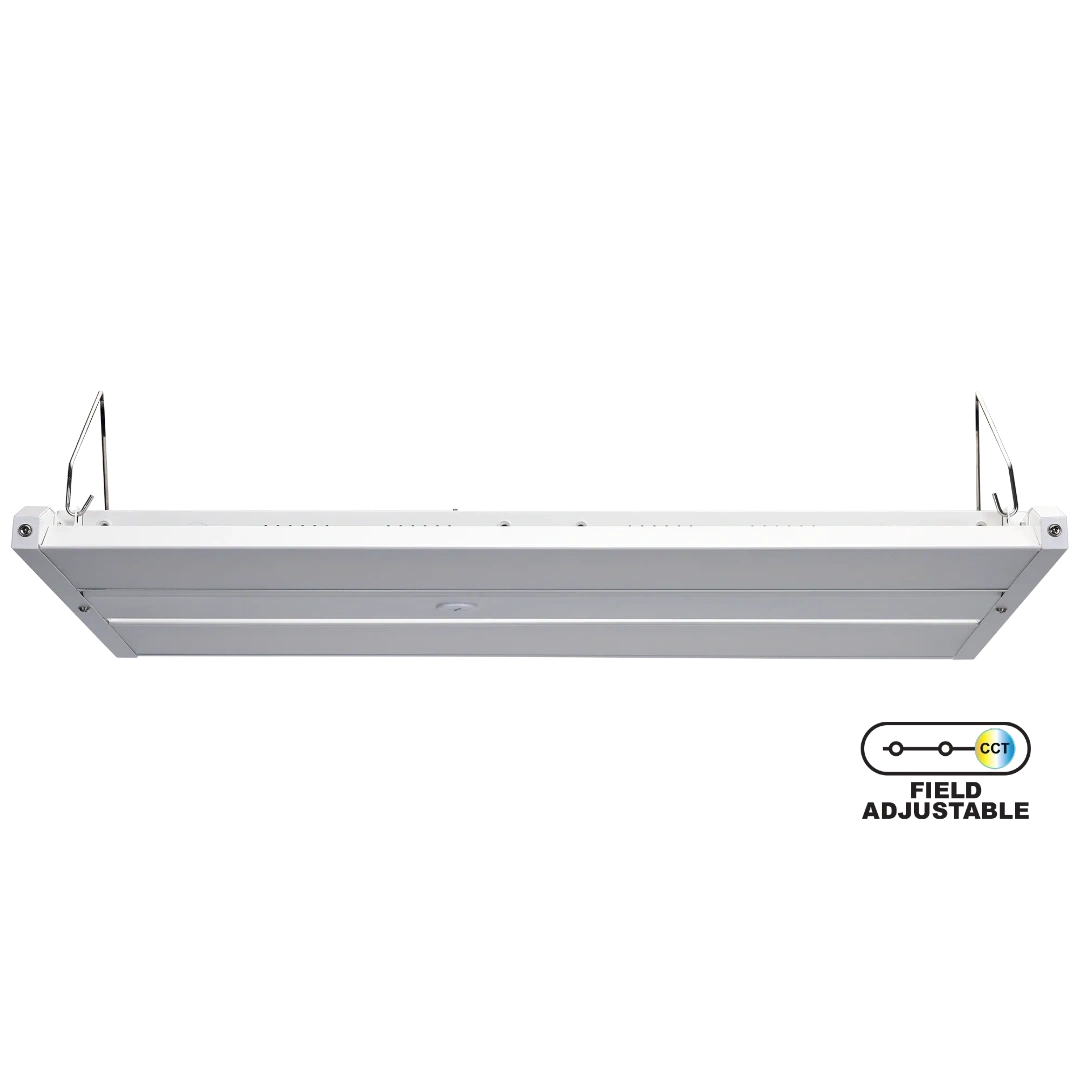

LED Linear Highbay 4ft CCT Selectable 20000 - 50000 Lumen (Pack of 2) (OSL-DM-HB) - Image 2

LED Linear Highbay 4ft CCT Selectable 20000 - 50000 Lumen (Pack of 2) (OSL-DM-HB) - Image 3

LED Linear Highbay 4ft CCT Selectable 20000 – 50000 Lumen (Pack of 2) (OSL-DM-HB)

RESOURCES & DOWNLOADS

(0 Reviews)

$224.00 – $288.00

Wattage & Size

CCT

Pack

Clear

*Wattage & Size

*CCT

*Pack

Reset options
Emergency Battery Backup (Field Install) (optional)

Motion Sensor (Field Install) (optional)

Details

Brochures & Spec Sheets

Description

LED linear highbay
CCT adjustable (3500/4000/5000K)
160W (4ft): 20,000 lumen output. 125 lumen per watt
255W (4ft): 31,875 lumen output. 125 lumen per watt
300W (4ft): 37,500 lumen output. 125 lumen per watt
400W (4ft): 50,000 lumen output. 125 lumen per watt
Hanging cables and V-hooks included
Smooth and comfortable light
100-277V AC Input
0-10V dim
Minimum 80 CRI
-20°C ~ 50°C operating temperature
ETL Listed for damp location
DLC listed
50,000+ hours lifespan
5 years warranty

Product Attributes

Brand	ONE SOURCE LIGHT
MPN (Part No.)	DIMI LIGHT
SKU	OSL-DM-HB-2-160 2-PACK OSL-DM-HB-4-160 2-PACK OSL-DM-HB-4-255 2-PACK OSL-DM-HB-4-300 2-PACK OSL-DM-HB-4-400 2-PACK
DLC Part Number	OSL-DM-HB-2-160 2-PACK OSL-DM-HB-4-160 2-PACK OSL-DM-HB-4-255 2-PACK OSL-DM-HB-4-300 2-PACK OSL-DM-HB-4-400 2-PACK
Lighting Technology	LED
LED Chip Type
Dimmable	Yes
CRI	80+
Color	Natural/Cool White Field Selectable
Color Temperature	3500/4000/5000 Kelvin Field Selectable
LED L70 Life Hours	50,000
Wattage	160W, 255W, 300W, 400W
LPW	125
Fixture Type	Linear Highbay

Lumens	20,000 lumen(160W) 31,875 lumen(255W) 37,500 lumen(300W) 50,000 lumen(400W)
Voltage	100-277V AC Input
Ratings and Certifications	Damp Location ETL / DLC Premium 5.1
Finish	White
Mounting	Pendant Mount : V-hook and Chain (included)
Surge Protection
Operating Temp	-20°C ~ 50°C (-4°F ~ 122°F)
Lens
Length	46.5 in
Height	2.2 in.
Width	15.0 in.
Package Quantity	2
Weight	13.5 lb. per unit
Warranty	5-Year Limited
