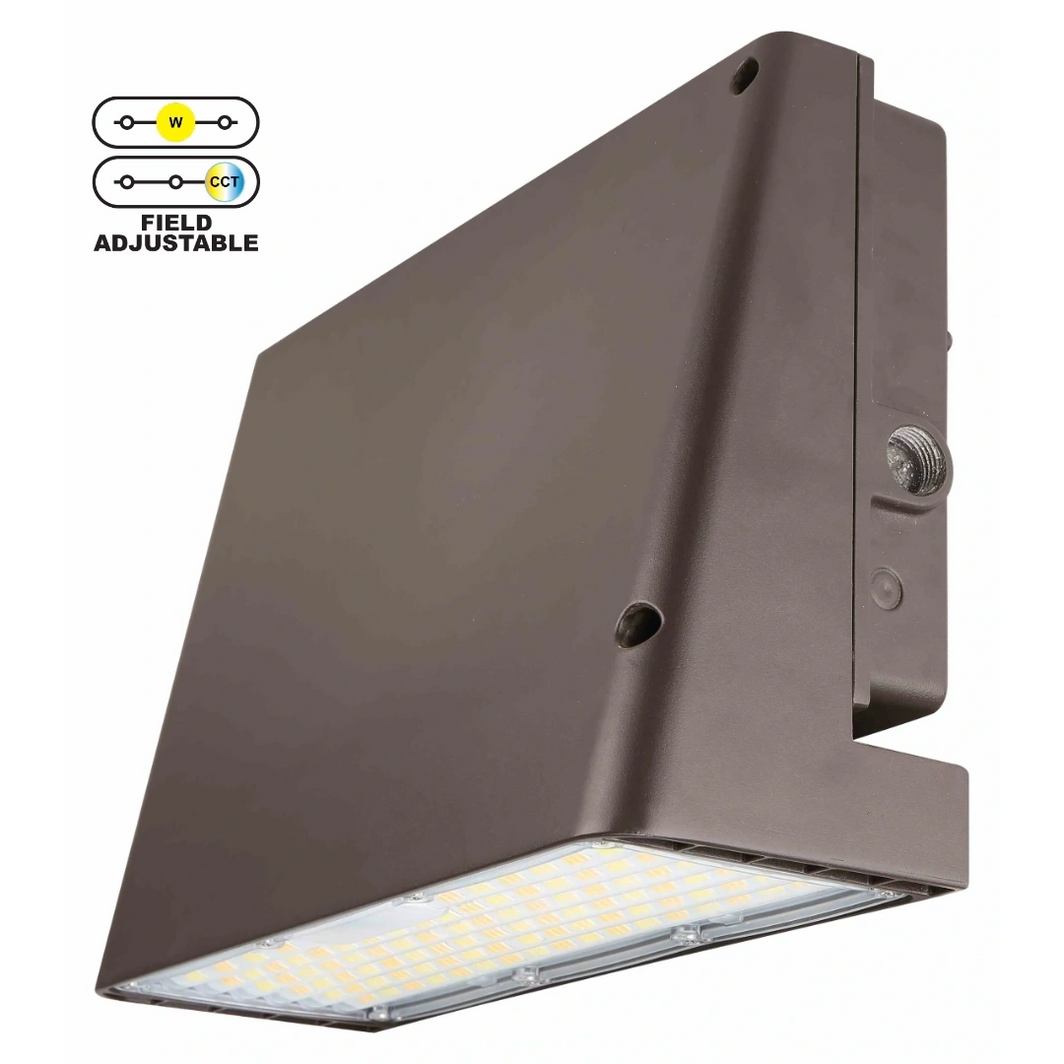

LED full cut-off slim wall pack

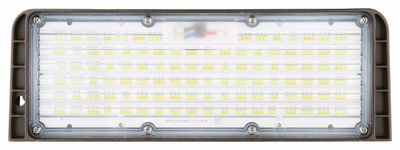

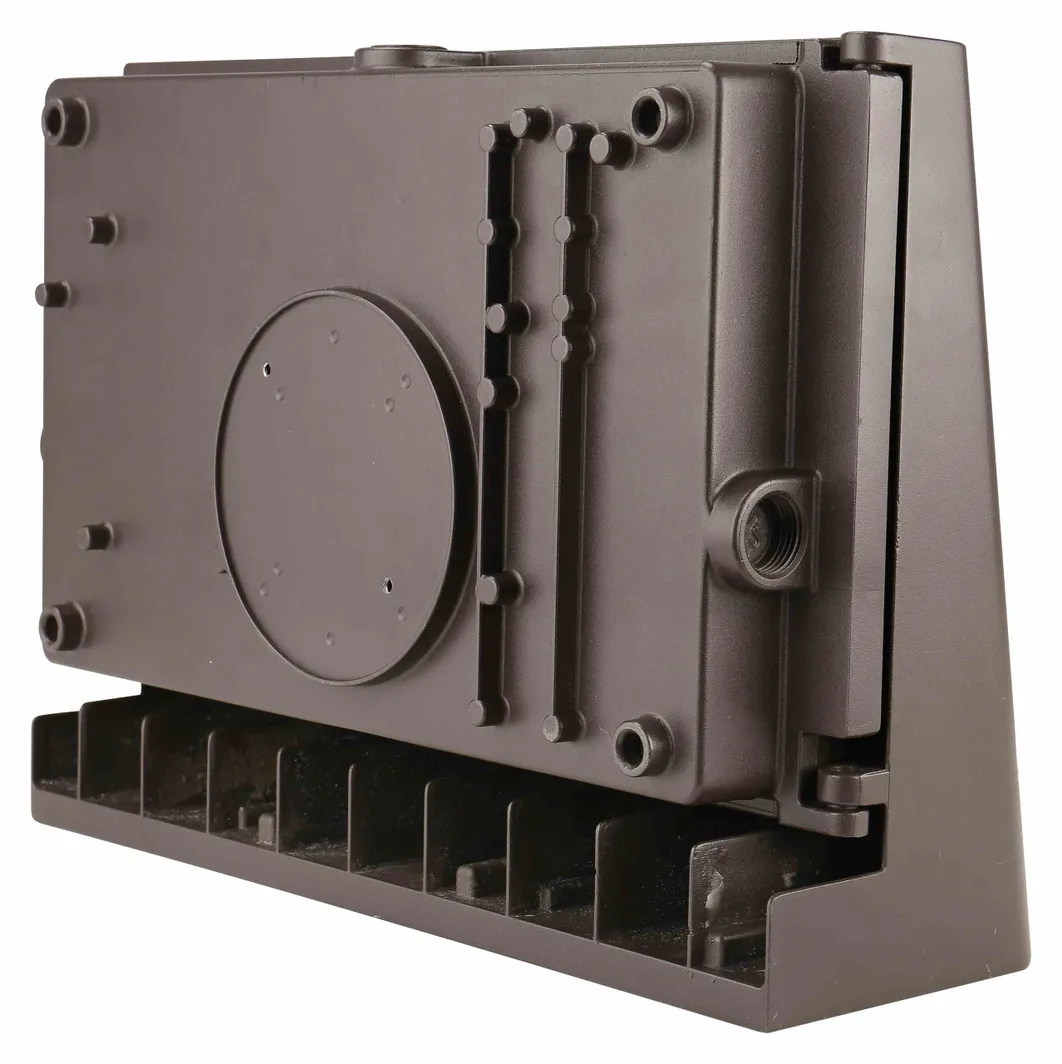

Die-cast aluminum housing secures thermally conductive LED panel and electrical chamber
Anti-UV prismatic translucent lens
Dark bronze finish as standard
Suitable for applications requiring 3G testing prescribed by ANSI C136.31.

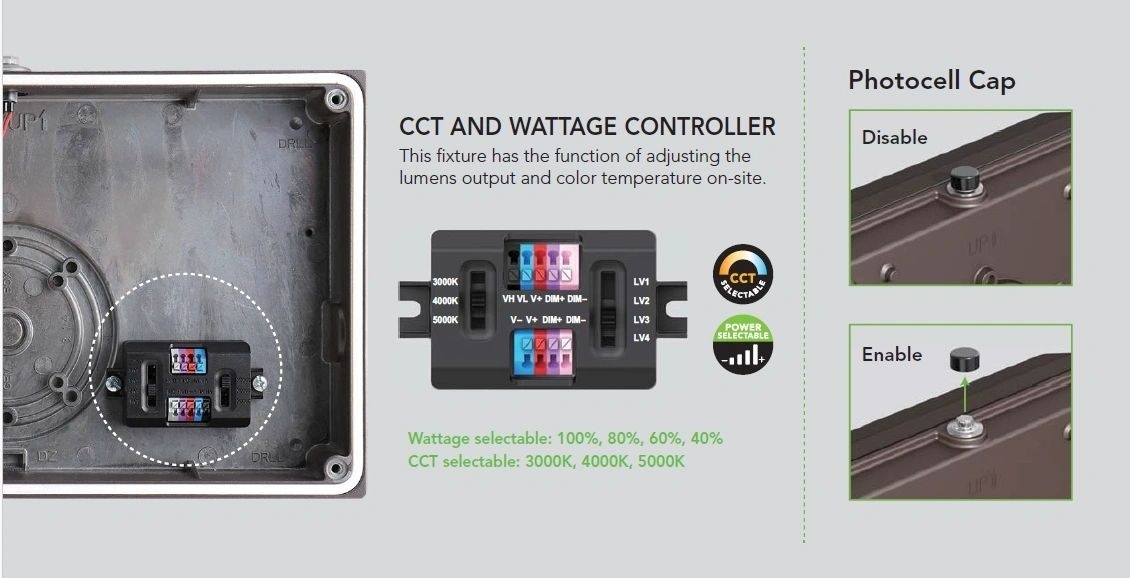

Adjustable Wattage and CCT (135W is fixed wattage & CCT)
26-Watt: 26/21/15/11W adjustable (3918/3374/2502/1882 lumen output) 150lm/w. 3000/4000/5000K adjustable
38-Watt: 38/30/23/16W adjustable (5690/4871/3697/2789 lumen output) 150lm/w. 3000/4000/5000K adjustable
65-Watt: 64/49/34/23W adjustable (9816/7873/5782/4042 lumen output) 149lm/w. 3000/4000/5000K adjustable
100-Watt: 103/84/61/42W adjustable (14950/12725/9548/6667 lumen output) 150lm/w. 3000/4000/5000K adjustable
135-Watt: 135W (20000 lumen output) 148lm/w. 5000K
120-277V AC Input
0-10V continuous Dim (26/38/65/100W) or Non-dim (135W)
Minimum 70 CRI
-40°F ~ 104°F (-40°C ~ 40°C) operating temperature
50,000+ hours LED life span
UL Listed for wet location
DLC premium listed (135W is not DLC listed)
5 years warranty
Optional photocell available
Optional 8W Emergency battery backup available (only available on 26W, 38W and 65W fixtures)

Brand	ONE SOURCE LIGHT
MPN (Part No.)	MWP15
SKU	OSL-MWP15
DLC Part Number	MWP15
Lighting Technology	LED
LED Chip Type	–
Dimmable	Yes
CRI	70+
Color	Warm/Natural/Cool White Field Selectable
Color Temperature	3000/4000/5000 Kelvin Field Selectable
LED L70 Life Hours	50,000
Wattage	26/21/15/11W Field Selectable 38/30/23/16W Field Selectable 64/49/34/23W Field Selectable 103/84/61/42W Field Selectable 135W
LPW	up to 150
Fixture Type	Wall Pack

Lumens	3,918/3,374/2,502/1,882 Lumen Field Selectable (26W) 5,690/4,871/3,697/2,789 Lumen Field Selectable (38W) 9,816/7,873/5,782/4,042 Lumen Field Selectable (64W) 14,950/12,725/9,548/6,667 Lumen Field Selectable (103W) 20,000 Lumen (135W)
Voltage	120-277V AC Input
Ratings and Certifications	Wet Location UL / DLC Premium 5.1
Finish	Dark Bronze
Mounting	Wall Mount
Surge Protection
Operating Temp	-40°C ~ 40°C (-40°F ~ 104°F)
Lens	Anti-UV
Width	13.1 in.
Height	9.6 in.
Depth	3.8 in. (26W, 38W, 64W, 135W) 5.0 in. (100W)
Package Quantity	1
Weight	–
Warranty	5-Year Limited
