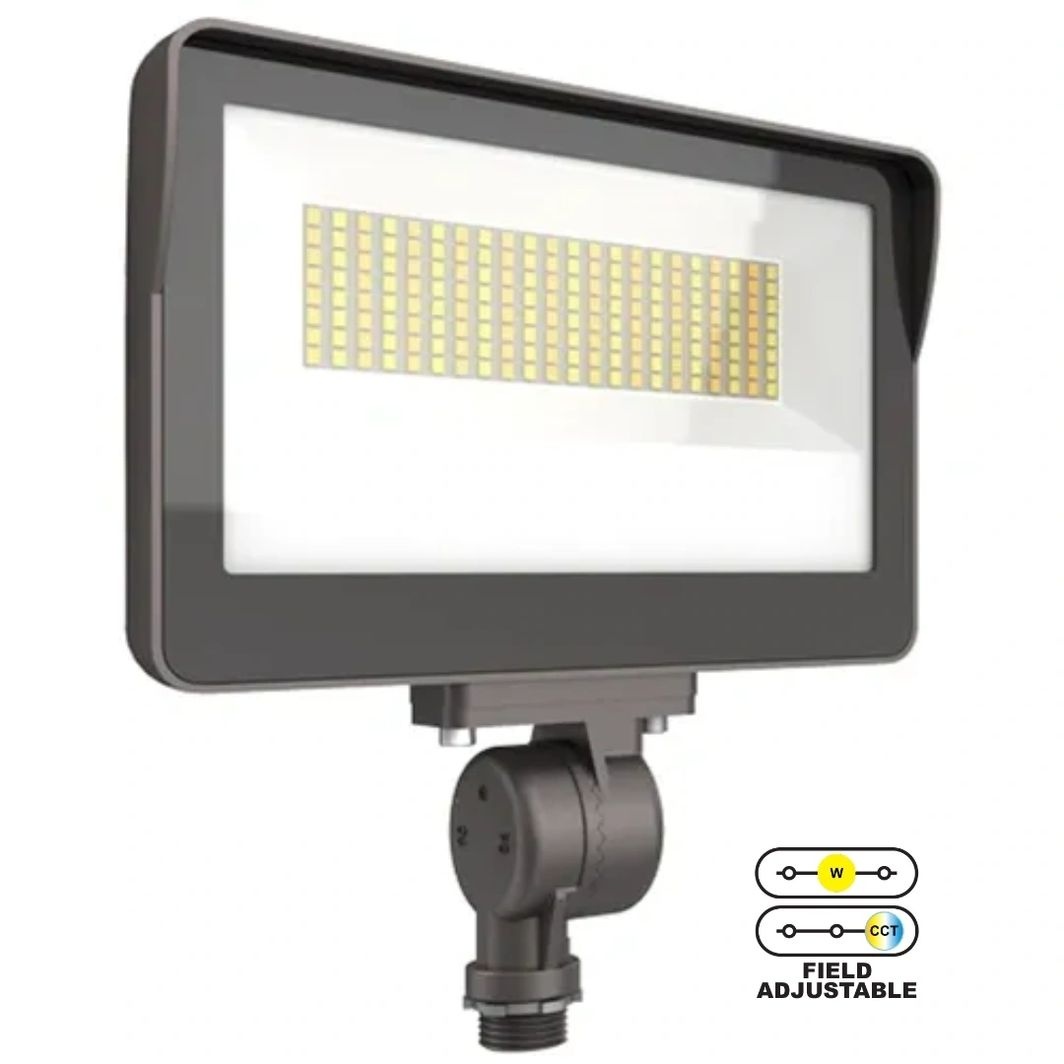

LED Flood Light Lumen & CCT Adjustable 5,320 – 8,760 Lumen (OSL-WSD-FL)

RESOURCES & DOWNLOADS

(0 Reviews)

$69.50

  • *Wattage & Lumen

    *CCT

    Reset options

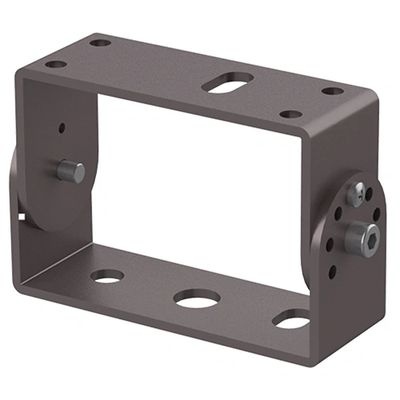

    Optional Mounting Part (Sold Separately) (optional)

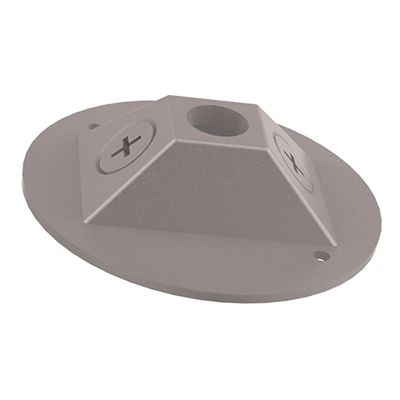

    Optional Base (Articulation) for Knuckle Mount (Sold Separately) (optional)

Details



    Description

  • LED flood light wattage & CCT adjustable
  • Durable die-cast aluminum housing available in dark bronze finish
  • Knuckle  or U-bracket (Yoke) mounting options available

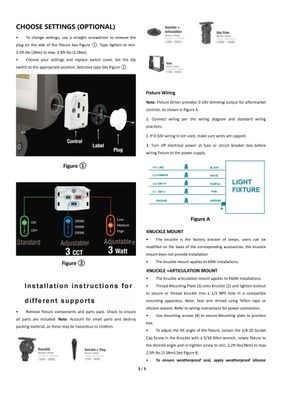

  • Integrated 3-Way dip switches to adjust wattages, CCTs and photocell
  • 60-Watt: 35/50/60W (5320/7400/8760 lumen output) 146+lm/w
  • 3000/4000/5000K CCT adjustable
  • 120-277V AC Input
  • 0-10V dimmable
  • Minimum 80 CRI
  • 118° light beam angle
  • -40°F ~ 104°F (-40°C ~ 40°C) operating temperature
  • 50,000+ hours LED life span
  • UL Listed for wet location
  • DLC premium listed
  • 5 years warranty
  • Photocell installed as standard

   Product Attributes

Brand ONE SOURCE LIGHT
MPN (Part No.) WSD-FL
SKU OSL-WSD-FL
DLC Part Number WSD-FL
Lighting Technology LED
LED Chip Type SMD2835
Dimmable Yes
CRI 80+
Color Warm/Natural/Cool White Field Selectable
Color Temperature 3000/4000/5000 Kelvin Field Selectable
LED L70 Life Hours 50000
Wattage 35/50/60W Field Selectable
LPW 146+
Fixture Type Flood Light
Lumens 5,320/7,400/8,760 Lumen Field Selectable
Voltage 100-277V AC Input
Ratings and Certifications Wet Location UL / DLC Premium 5.1
Finish Dark Bronze
Mounting Knuckle or Yoke Mount
Surge Protection
Operating Temp -40°C ~ 40°C (-40°F ~ 104°F)
Lens Tempered Glass
Length 7.87 in.
Height 2.05 in.
Width 5.91 in.
Package Quantity 1
Weight 2.95 lb. per unit
Warranty 5-Year Limited
