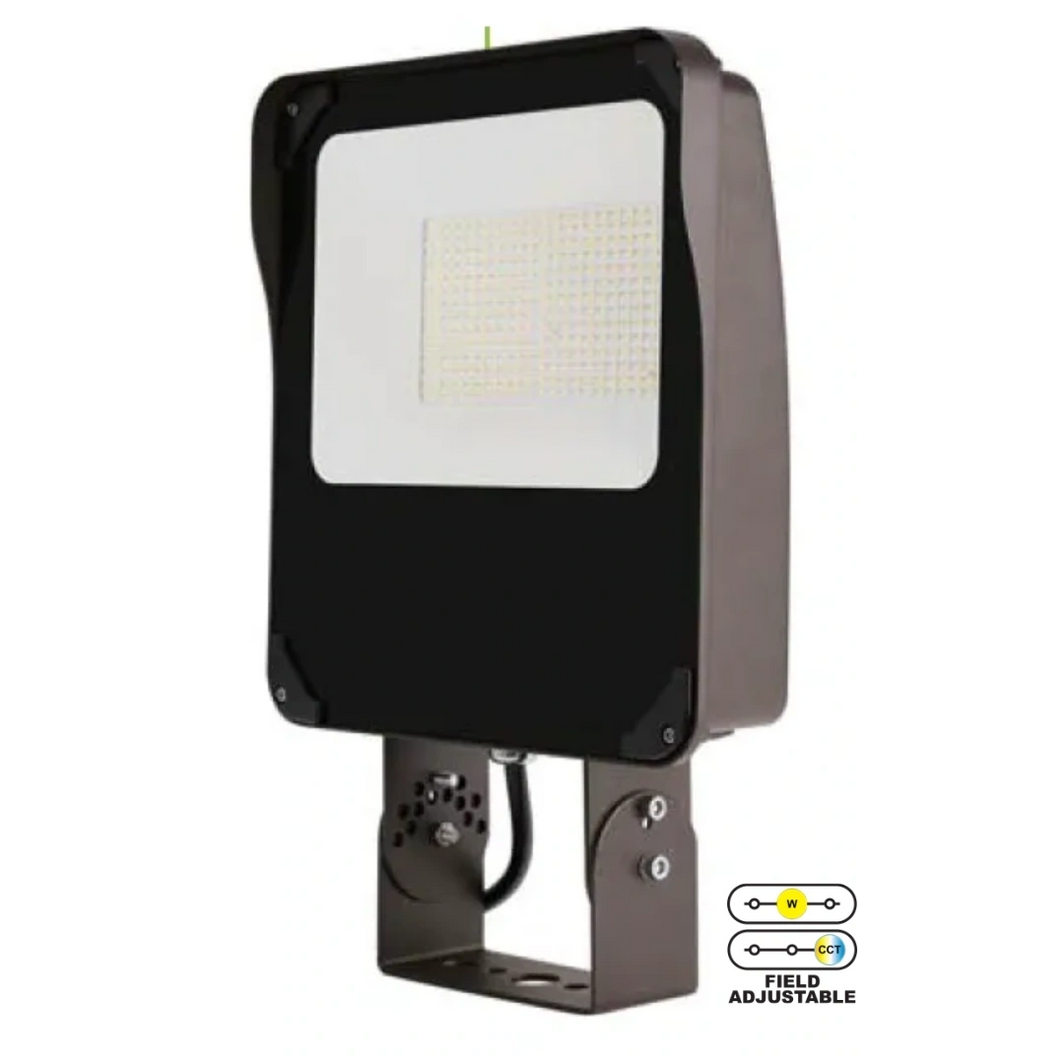

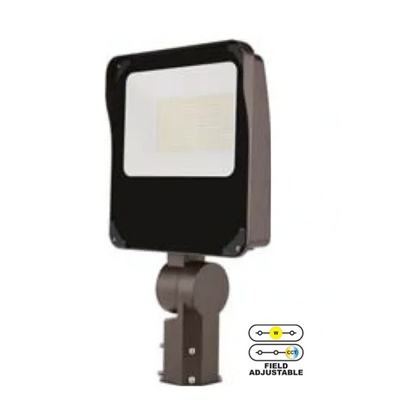

LED Flood Light Gen2 Lumen & CCT Adjustable 8,581 – 18,092 Lumen (OSL-MFD11-DDK)

RESOURCES & DOWNLOADS

(0 Reviews)

$126.00

Details

Brochures & Spec Sheets

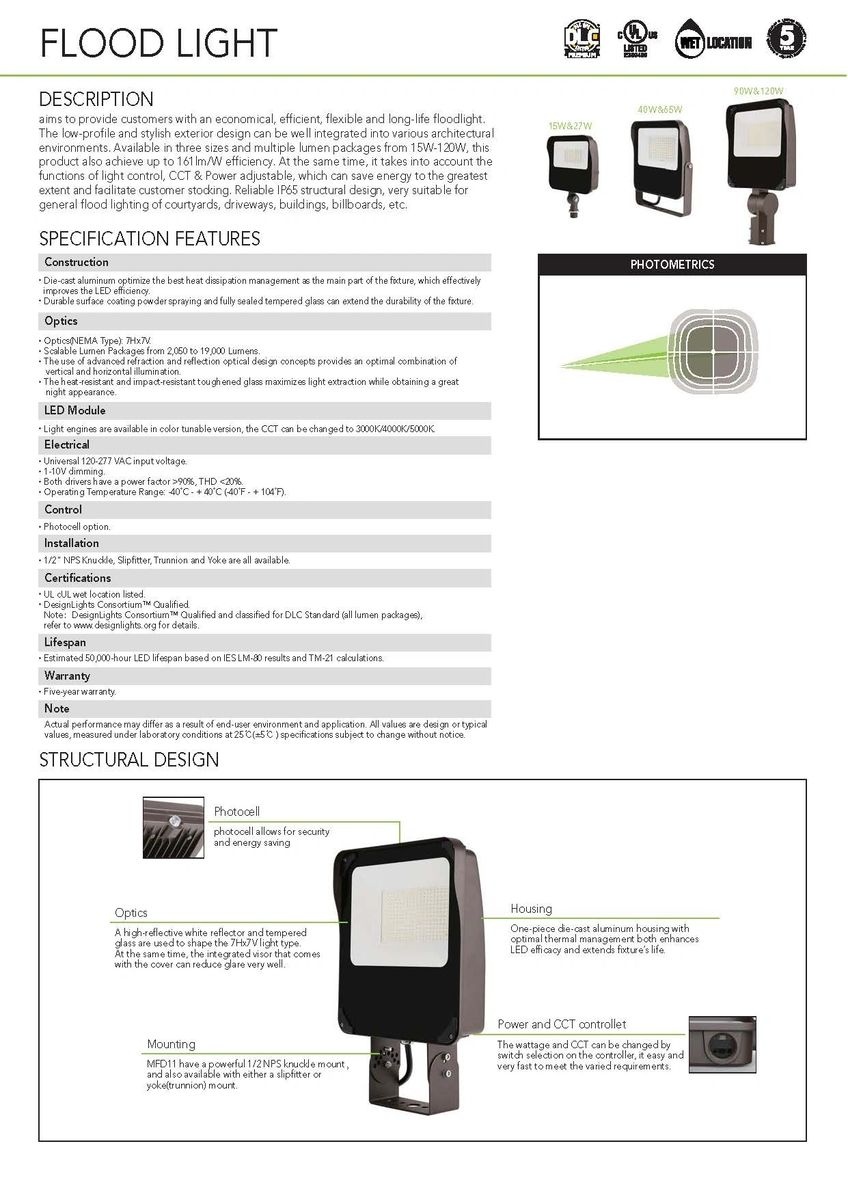

    Description

  • LED flood light wattage & CCT adjustable
  • Die-cast aluminum housing and mounting parts are pre-treated and powder-coated to meet industry standards.
  • Fully sealed tempered glass lens to extend the durability of the fixture
  • Dark bronze finish as standard
  • 7H*7V Nema beam spread
  • 120-Watt: 122/98/71/52W (18092/15119/11206/8581 lumen output) up to 158 lm/w
  • 3000/4000/5000K CCT adjustable
  • 120-277V AC Input
  • 0-10V dimmable
  • Minimum 70 CRI
  • Integrated photocell included as standard

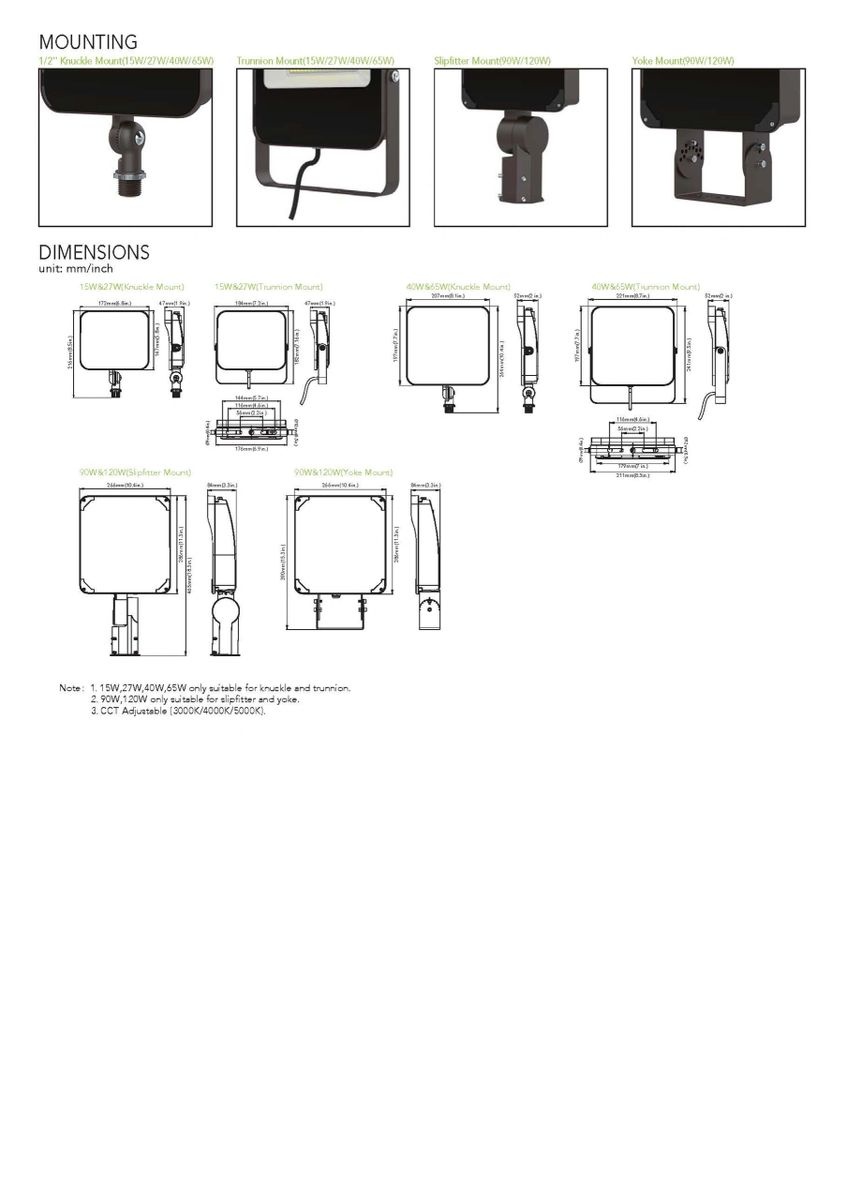

  • Knuckle(27/40/65W), Trunnion(27/40/65W), Slip Fitter(120W) or Yoke(120W) available
  • -40°F ~ 104°F (-40°C ~ 40°C) operating temperature
  • 50,000+ hours LED life span
  • UL Listed for wet location
  • DLC premium listed
  • 5 years warranty

   Product Attributes

Brand ONE SOURCE LIGHT
MPN (Part No.) MFD11-DDK
SKU OSL-MFD11-DDK
DLC Part Number MFD11-DDK
Lighting Technology LED
LED Chip Type
Dimmable Yes
CRI 70+
Color Warm/Natural/Cool White Field Selectable
Color Temperature 3,000/4,000/5,000 Kelvin Field Selectable
LED L70 Life Hours 50,000
Wattage 120/98/71/52W Field Selectable
LPW up to 158
Fixture Type Flood Light
Lumens 18,092/15,119/11,206/8,581 Lumen Field Selectable
Voltage 100-277V AC Input
Ratings and Certifications Wet Location UL / DLC Premium 5.1
Finish Dark Bronze
Mounting Slip Fitter or Yoke Mount
Surge Protection
Operating Temp -40°C ~ 40°C (-40°F ~ 104°F)
Lens Tempered Glass
Length 10.4 in.
Height 3.3 in.
Width 11.3 in.
Package Quantity 1
Weight
Warranty 5-Year Limited
