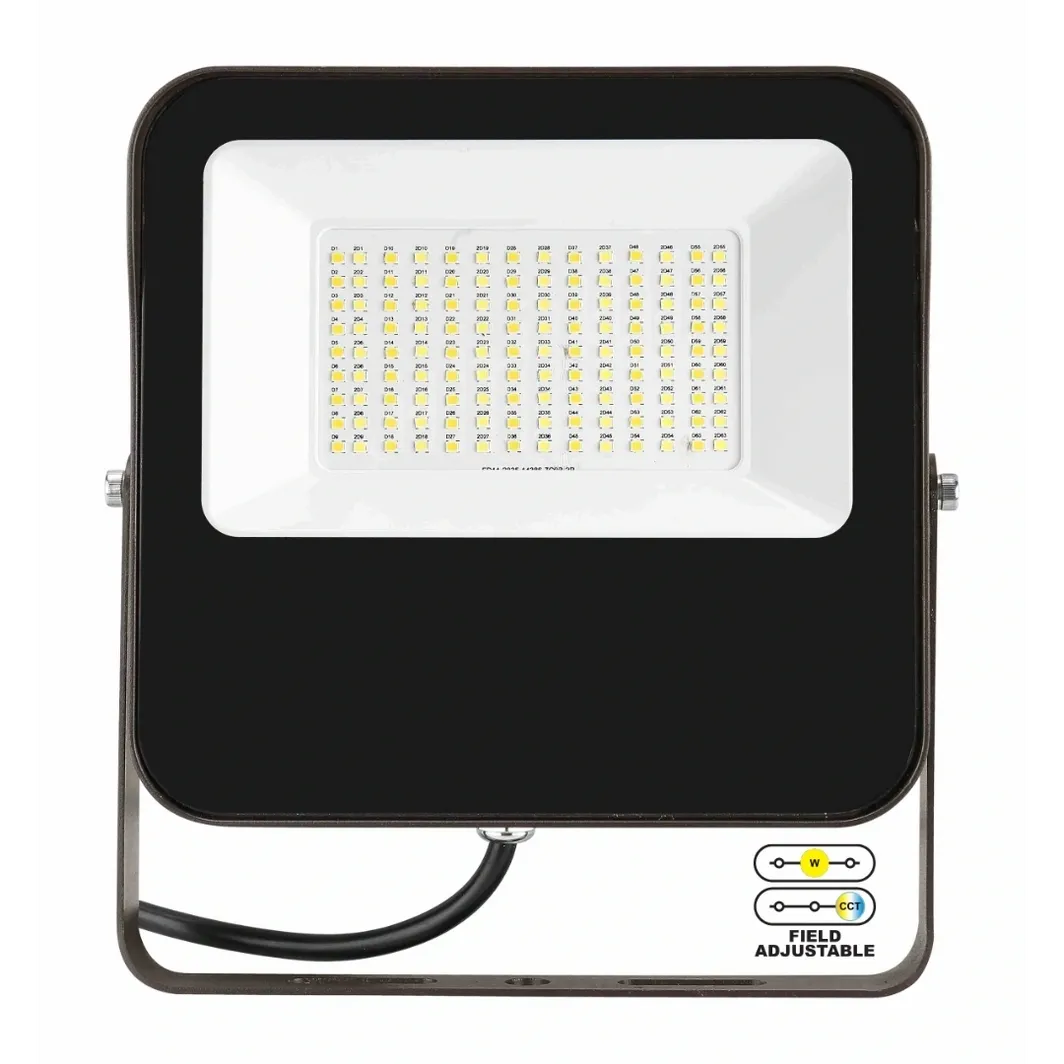

LED Flood Light Gen2 Lumen & CCT Adjustable 2,327 – 9,438 Lumen (OSL-MFD11-DDK)

Products

Wattage & Lumen

CCT

Mounting

Clear

LED flood light wattage & CCT adjustable
Die-cast aluminum housing and mounting parts are pre-treated and powder-coated to meet industry standards.
Fully sealed tempered glass lens to extend the durability of the fixture
Dark bronze finish as standard
7H*7V Nema beam spread
40-Watt: 40/29/21/14W (5846/4542/3356/2327 lumen output) up to 150 lm/w
65-Watt: 65/54/41/27W (9438/7824/5937/3963 lumen output) up to 149 lm/w
3000/4000/5000K CCT adjustable
120-277V AC Input
0-10V dimmable
Minimum 70 CRI
Integrated photocell included as standard
Knuckle(27/40/65W), Trunnion(27/40/65W), Slip Fitter(120W) or Yoke(120W) available
-40°F ~ 104°F (-40°C ~ 40°C) operating temperature
50,000+ hours LED life span
UL Listed for wet location
DLC premium listed
5 years warranty

Brand	ONE SOURCE LIGHT
MPN (Part No.)	MFD11-DDK
SKU	OSL-MFD11-DDK
DLC Part Number	MFD11-DDK
Lighting Technology	LED
LED Chip Type
Dimmable	Yes
CRI	70+
Color	Warm/Natural/Cool White Field Selectable
Color Temperature	3000/4000/5000 Kelvin Field Selectable
LED L70 Life Hours	50000
Wattage	65/54/41/27W Field Selectable 40/29/21/14W Field Selectable
LPW	up to 150
Fixture Type	Flood Light

Lumens	9,438/7,824/5,937/3,963 Lumen Field Selectable 5,846/4,542/3,356/2,327 Lumen Field Selectable
Voltage	100-277V AC Input
Ratings and Certifications	Wet Location UL / DLC Premium 5.1
Finish	Dark Bronze
Mounting	Knuckle or Trunnion Mount
Surge Protection	–
Operating Temp	-40°C ~ 40°C (-40°F ~ 104°F)
Lens	Tempered Glass
Length	8.1 in.
Height	2.0 in.
Width	7.7 in.
Package Quantity	1
Weight
Warranty	5-Year Limited
