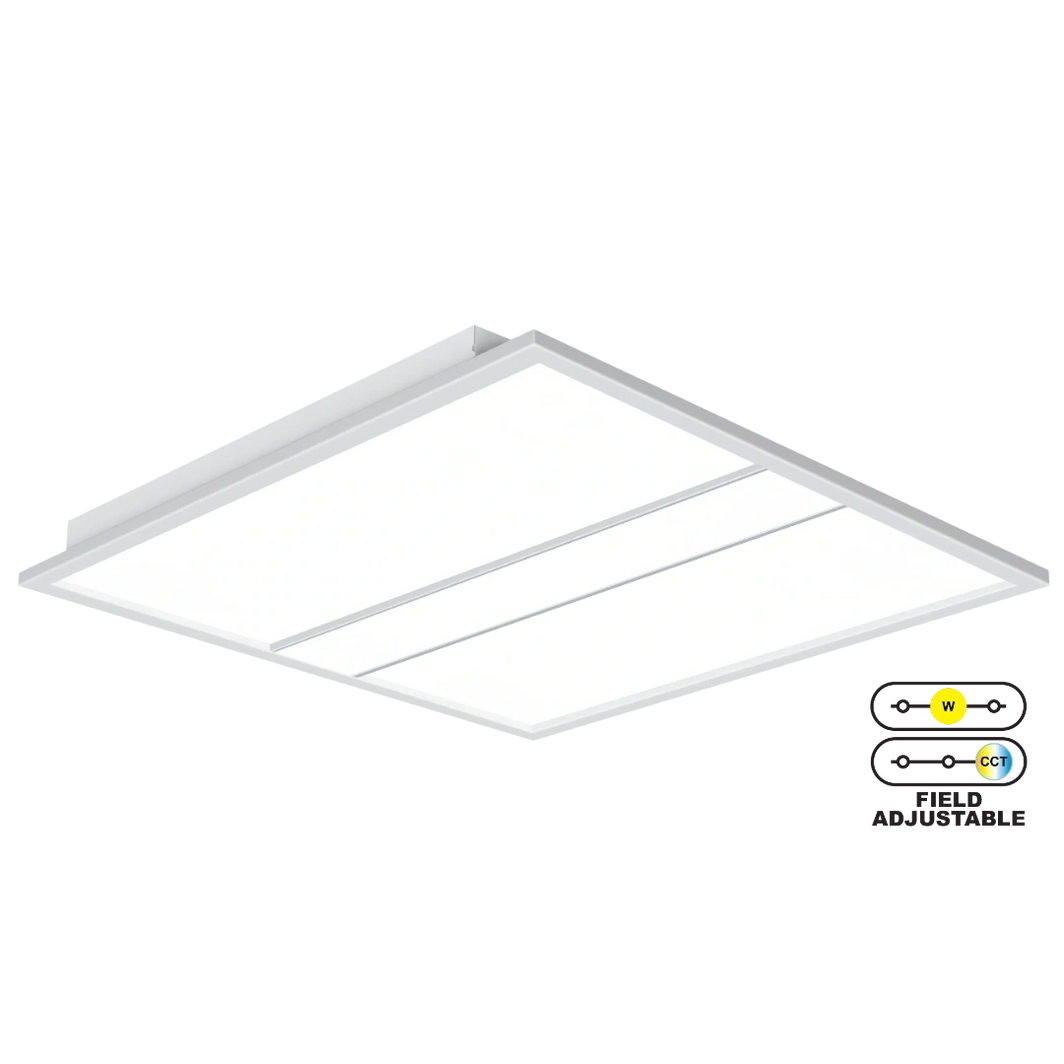

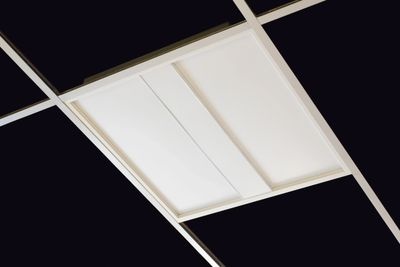

LED Floating Curved Troffer 2×2 Selectable (OSL-TR)

RESOURCES & DOWNLOADS

(0 Reviews)

$70.00

Size

CCT

Clear

*Size

*CCT

Reset options
Emergency Battery Backup (Factory Installed) (optional)

Details

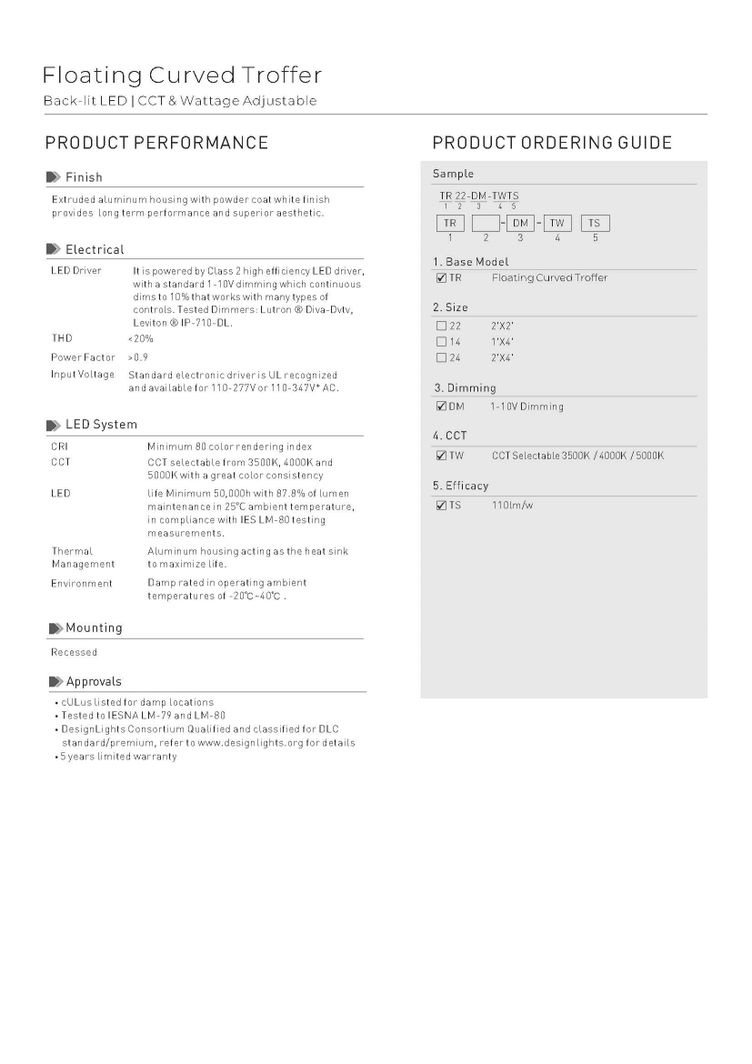

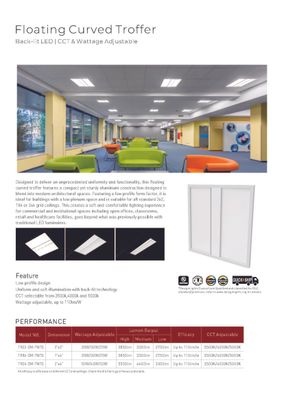

Brochures & Spec Sheets

Description

Recessed Floating Curved Troffer
Available in 1×4, 2×2 and 2×4 size
Smooth and comfortable light
Wattage adjustable, 110lm/w
CCT selectable from 3500K, 4000K and 5000K
Recessed mounting fits most T-grid systems
2’x2′ 35/30/25W 3,850/3,300/2,750 lumen selectable up to 110lm/w
120-277V AC Input
1-10V Continuous Dim
Minimum 80 CRI
LED life Minimum 50,000h with 87.8% of lumen maintenance in 25℃ ambient temperature
UL Listed
DLC Listed
5 years warranty

Product Attributes

Brand	ONE SOURCE LIGHT
MPN (Part No.)	TR22-DM-TWTS
SKU	OSL-TR-22-35
DLC Part Number	TR22-DM-TWTS
Lighting Technology	LED
LED Chip Type
Dimmable	Yes
CRI	80+
Color	Natural/Cool White Field Selectable
Color Temperature	3500/4000/5000 Kelvin Field Selectable
LED L70 Life Hours	50,000
Wattage	35/30/25W Field Selectable
LPW	110
Fixture Type	Troffer

Lumens	3,850/3,300/2,750 Lumen Field Selectable
Voltage	110-277V AC Input
Ratings and Certifications	Damp Location UL / DLC Standard 5.1
Finish	White
Mounting	Recessed Mount : T-bar Ceilling
Surge Protection
Operating Temp	-20°C ~ 40°C (-4°F ~ 104°F)
Lens

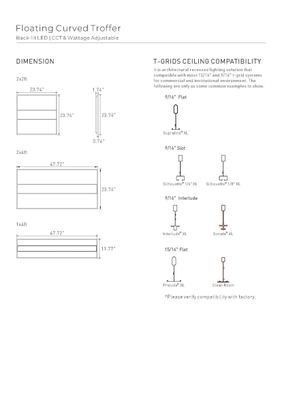

Length	23.74 in.
Height	1.74 in.
Width	23.74 in.
Package Quantity	1
Weight
Warranty	5-Year Limited
