LED Die-Cast Aluminum Linear Highbay 36000 – 46500 Lumen (Pack of 2) (OSL-X-LHBC)

Products

Wattage & Size

CCT

Pack

Clear

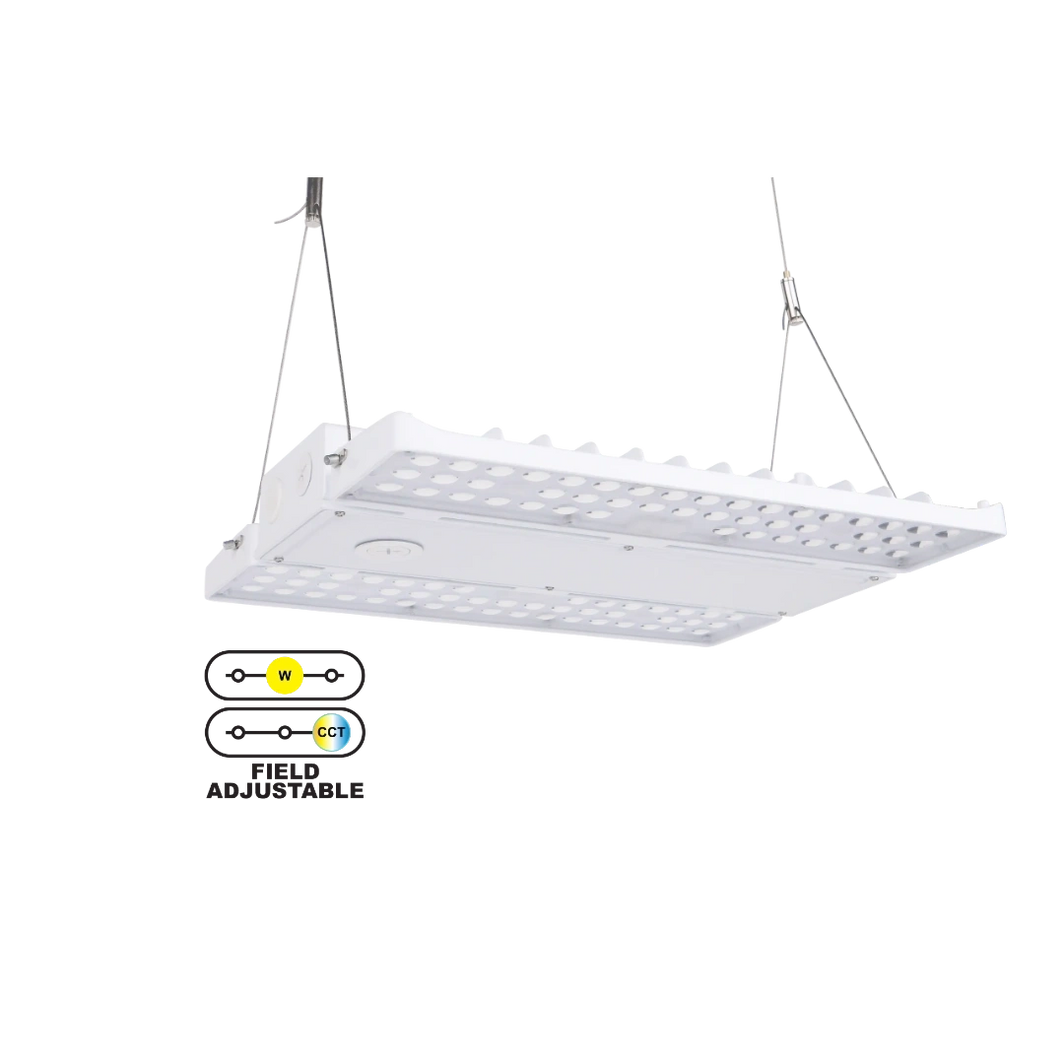

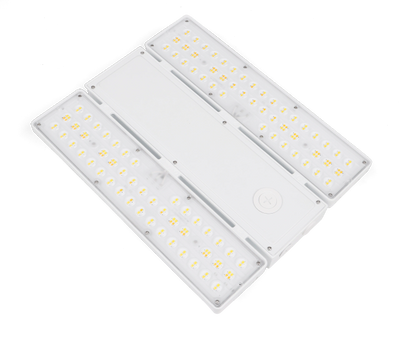

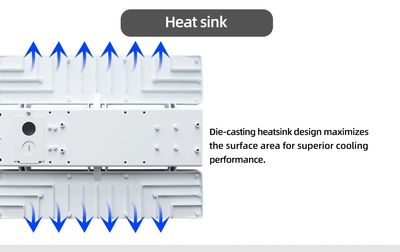

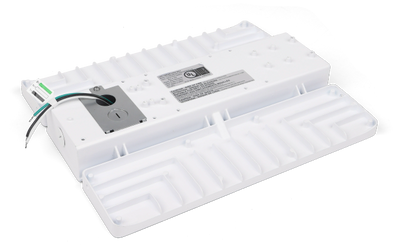

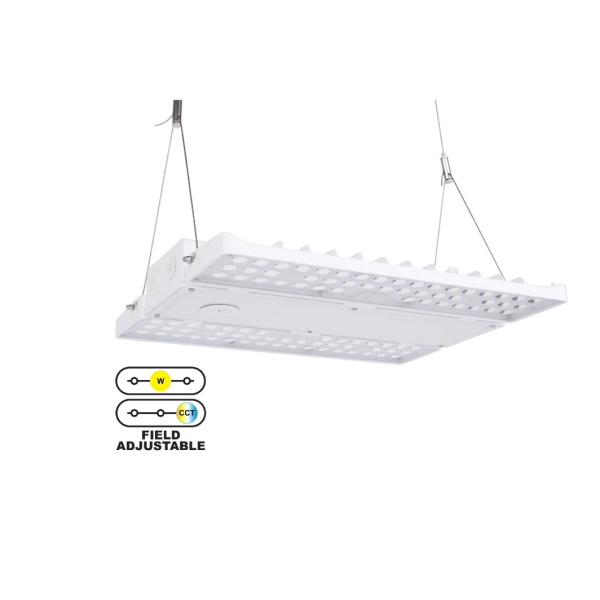

LED die-cast aluminum housing linear highbay
Wattage & CCT adjustable
310W(1.7ft): 240/270/310W adjustable (36,000/40,500/46,500 lumen output) 150lm/w
Hanging cables included
Smooth and comfortable light
100-277V or 277-480V AC Input
0-10V dim
Minimum 80 CRI

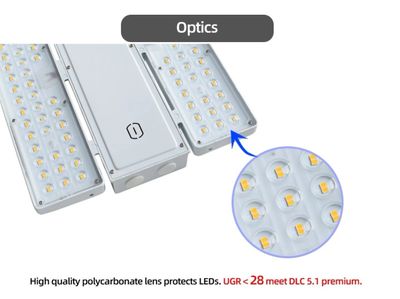

High quality polycarbonate optic lens with UGR<28
-40°C ~ 50°C operating temperature
UL Listed for damp location
DLC premium listed
50,000+ hours lifespan
5 years warranty

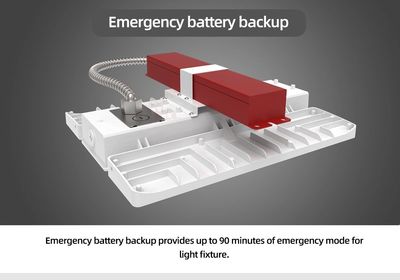

Optional sensor, emergency battery backup, conduit & surface mount and wire guard available (field installation)

Brand	ONE SOURCE LIGHT
MPN (Part No.)	X-LHBC(240/270/310)W-(40/50)KLV X-LHBC(240/270/310)W-(40/50)KHV
SKU	OSL-X-LHBC-310 2-PACK OSL-X-LHBC-310-HV 2-PACK
DLC Part Number	X-LHBC(240/270/310)W-(40/50)KLV X-LHBC(240/270/310)W-(40/50)KHV
Lighting Technology	LED
LED Chip Type
Dimmable	Yes
CRI	80+
Color	Natural/Cool White Field Selectable
Color Temperature	4000/5000 Kelvin Field Selectable
LED L70 Life Hours	50,000
Wattage	310W
LPW	150
Fixture Type	Linear Highbay

Lumens	36,000/40,500/46,500 Lumen Field Selectable
Voltage	100-277V or 277-480V AC Input
Ratings and Certifications	Damp Location UL / DLC Premium 5.1
Finish	White
Mounting	Pendant Mount : Aircraft Cable (Included)
Surge Protection	6kV
Operating Temp	-40°C ~ 50°C (-40°F ~ 122°F)
Lens
Length	20.5 in.
Height	2.1 in.
Width	11.5 in.
Package Quantity	2
Weight	7.3 lb. per unit
Warranty	5-Year Limited
