LED Die-Cast Aluminum Linear Highbay 13860 – 31500 Lumen (Pack of 2) (OSL-X-LHBC)

Products

Wattage & Size

CCT

Pack

Clear

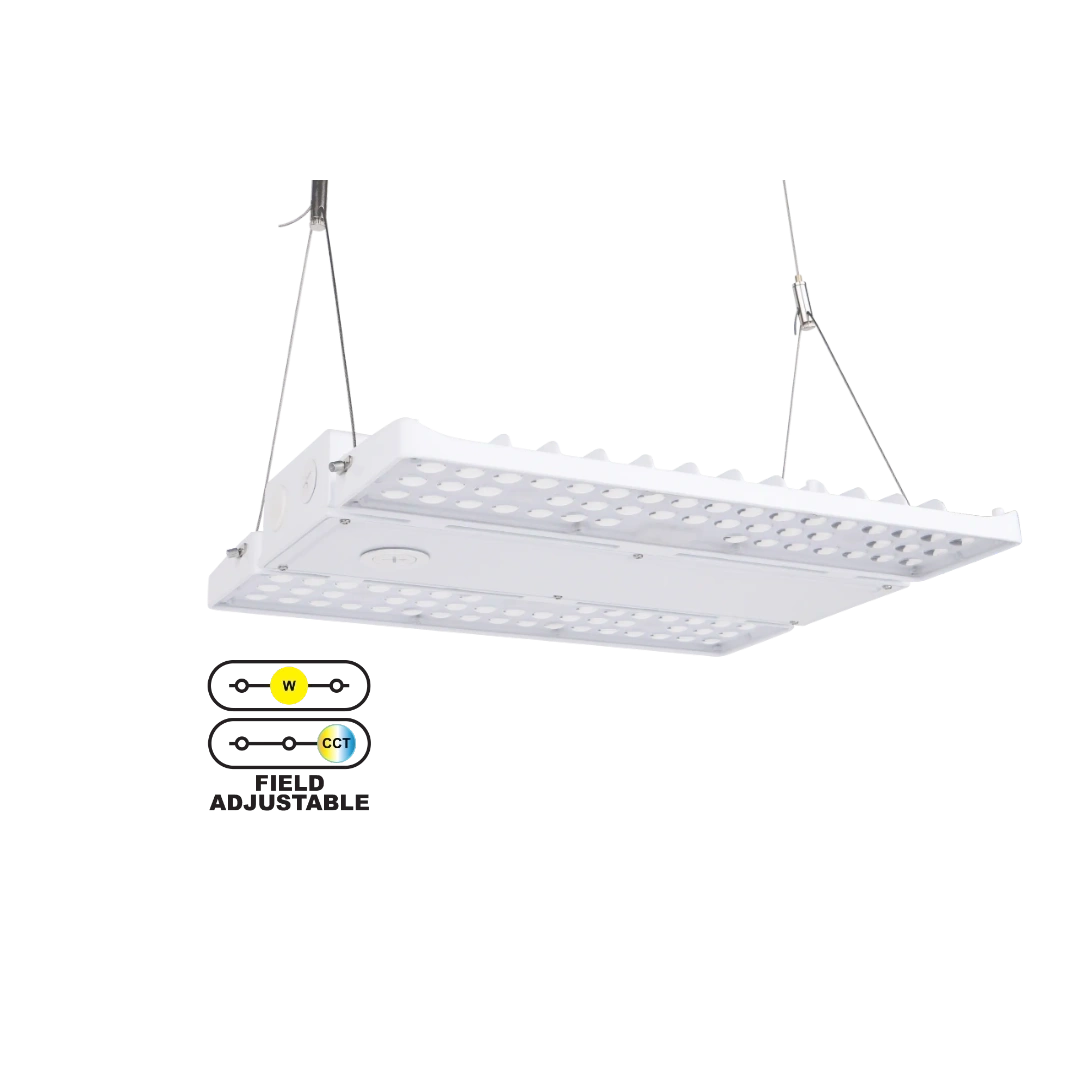

LED die-cast aluminum housing linear highbay
Wattage & CCT adjustable
130W(1.2ft): 90/105/130W adjustable (13,860/16,170/20,020 lumen output) 154lm/w
155W(1.2ft): 115/130/155W adjustable (17,250/19,500/23,250 lumen output) 150lm/w
210W(1.2ft): 155/180/210W adjustable (23,250/27,000/31,500 lumen output) 150lm/w
Hanging cables included
Smooth and comfortable light
100-277V or 277-480V AC Input
0-10V dim
Minimum 80 CRI
High quality polycarbonate optic lens with UGR<28
-40°C ~ 50°C operating temperature
UL Listed for damp location
DLC premium listed
50,000+ hours lifespan
5 years warranty
Optional sensor, emergency battery backup, conduit & surface mount and wire guard available (field installation)

Brand	ONE SOURCE LIGHT
MPN (Part No.)	X-LHBC(90/105/130)W-(40/50)KLV X-LHBC(115/130/155)W-(40/50)KLV X-LHBC(155/180/210)W-(40/50)KLV X-LHBC(115/130/155)W-(40/50)KHV X-LHBC(155/180/210)W-(40/50)KHV
SKU	OSL-X-LHBC-130 2-PACK OSL-X-LHBC-155 2-PACK OSL-X-LHBC-210 2-PACK OSL-X-LHBC-155-HV 2-PACK OSL-X-LHBC-210-HV 2-PACK
DLC Part Number	OSL-X-LHBC-130 2-PACK OSL-X-LHBC-155 2-PACK OSL-X-LHBC-210 2-PACK OSL-X-LHBC-155-HV 2-PACK OSL-X-LHBC-210-HV 2-PACK
Lighting Technology	LED
LED Chip Type
Dimmable	Yes
CRI	80+
Color	Natural/Cool White Field Selectable
Color Temperature	4000/5000 Kelvin Field Selectable
LED L70 Life Hours	50,000
Wattage	90/105/130W 115/130/155W 155/180/210W
LPW	150
Fixture Type	Linear Highbay

Lumens	13,860/16,170/20,020 Lumen Field Selectable(130W) 17,250/19,500/23,250 Lumen Field Selectable(155W) 23,250/27,000/31,500 Lumen Field Selectable(210W)
Voltage	100-277V or 277-480V AC Input
Ratings and Certifications	Damp Location UL / DLC Premium 5.1
Finish	White
Mounting	Pendant Mount : Aircraft Cable (Included)
Surge Protection	6kV
Operating Temp	-40°C ~ 50°C (-40°F ~ 122°F)
Lens
Length	14.0 in
Height	2.1 in.
Width	11.5 in.
Package Quantity	2
Weight	5.5 lb. per unit
Warranty	5-Year Limited
