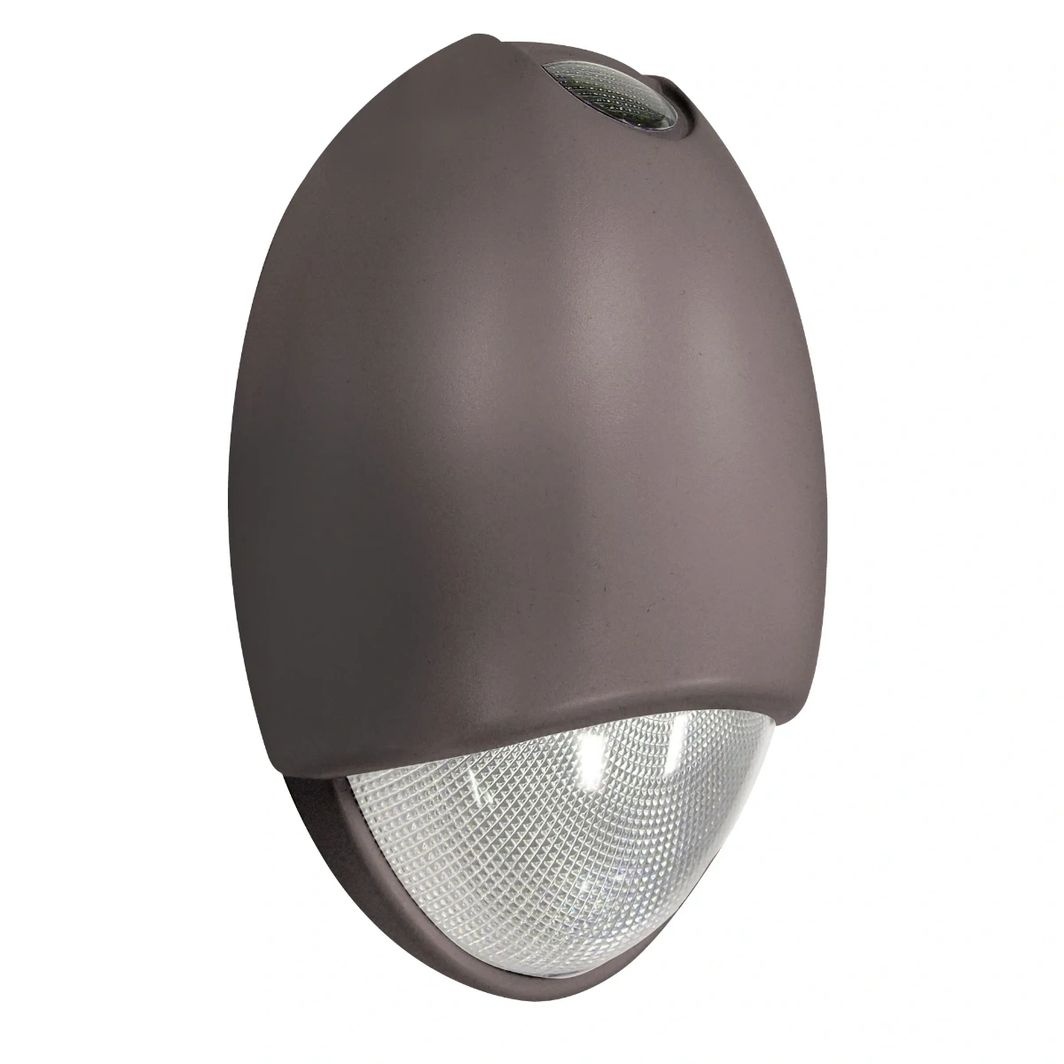

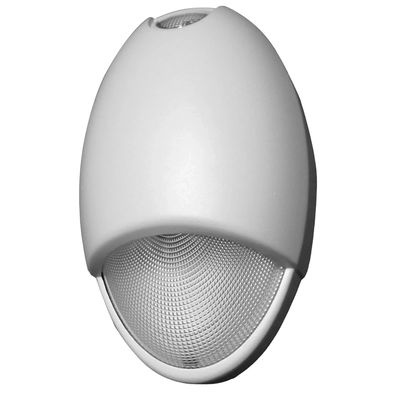

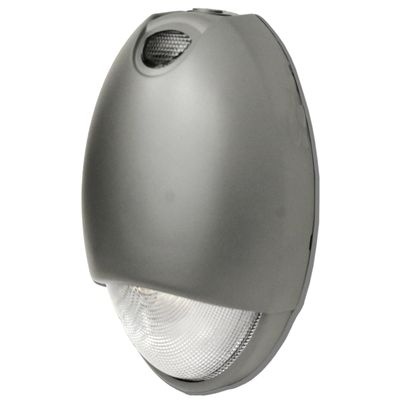

LED Decorative Outdoor Die-Cast AC/Emergency Unit (OSL-DBEL)
RESOURCES & DOWNLOADS
(0 Reviews)
$145.00 – $185.00
Details
Brochures & Spec Sheets
- Long lasting, efficient, ultra bright white LEDs.
- 12.0 watts (2 LEDs x 6.0 watt) per unit.
- Mirror-bright reflector and prismatic polycarbonate refractor.
- Can be used as a Normally-ON or Normally-OFF luminaire
as well as on a switched circuit. - Output of 1286 lumens in AC mode and 350 lumens in DC mode, 5000K CCT LED.
- Universal 120-277 voltage.
- Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
- 4.8V long life, maintenance-free, rechargeable NiCd battery.
- Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination
- Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
- Self-diagnostic feature performs monthly, bi-annual, and annual tests to ensure reliable operation and meets electrical and life safety codes.
- Photocell control sensor included as standard for use as dusk-to-dawn luminaire.
- Field-selectable wiring allows for AC operation of unit to be controlled using a wall-switch, photocell or other switching mechanism.
- Universal knockout pattern on back plate for wall mount.
- Threaded opening at the top of the enclosure for conduit mount.
- Decorative, low profile, architectural design.
- Die-cast aluminum housing. Durable powder-coated finishes in white, black, nickel and dark bronze finish.
- Sealed and gasketed.
- CW(Optional) : Internal heater for extreme cold temperature applications (-30°C ~ 50°C)
- CEC(Optional): Certified to CEC under Title 20 Regulations.
- Five year warranty on all electronics and housing. Battery prorated for five years.
- Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
- UL Listed for wet locations (0°C ~ 50°C)
