LED Cylinder Light 6-Inch Black Finish 80 CRI Rigid Pendant Stem Mount (OSL-CYL-6)

Products

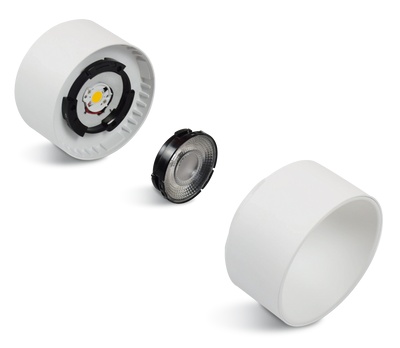

Modular design LED cylinder light
Die-cast aluminum housing with polyester paint powder coated
Available in 4″, 6″ and 8″ with surface and pendant(cable, stem) mount
120-277V AC Input
0-10V dimming as standard (10% or 1% dim)
Optional Triac dim available
6″ Cylinder : 40W/30W/20W wattage selectable
105 Lumen per watt (4,200/3,150/2,100 lumen output) based on 3000K 80 CRI
80 CRI or 90 CRI
2700K, 3000K, 3500K, 4000K CCT available (not field selectable)
Different beam angle options (15°, 24°, 36°, 60° optic lens)

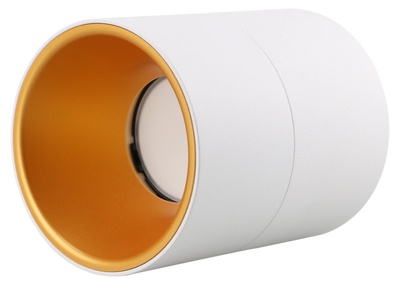

Trim options (white, black, copper, chrome)
White or black finish housing
Pendant and surface mount available for both recessed and surface J-box
Cable and stem mount available in 2ft, 4ft or 8ft length
Damp rated for ambient operating temperature of -20°C to +40°C (-4° to+104°F)
UL listed
5 years warranty
Cable Mount White/black cable is provided in length specified (2′ nominal, 4′ nominal or 8′ nominal).
Installers can cut the cable in the field to desired length.
Notes: For 4″ Cylinder, only use the power cable to suspend.
For 6″ and 8″ Cylinder, the power cable and aircraft cable are separated.

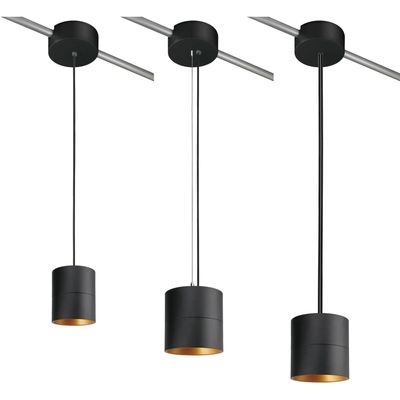

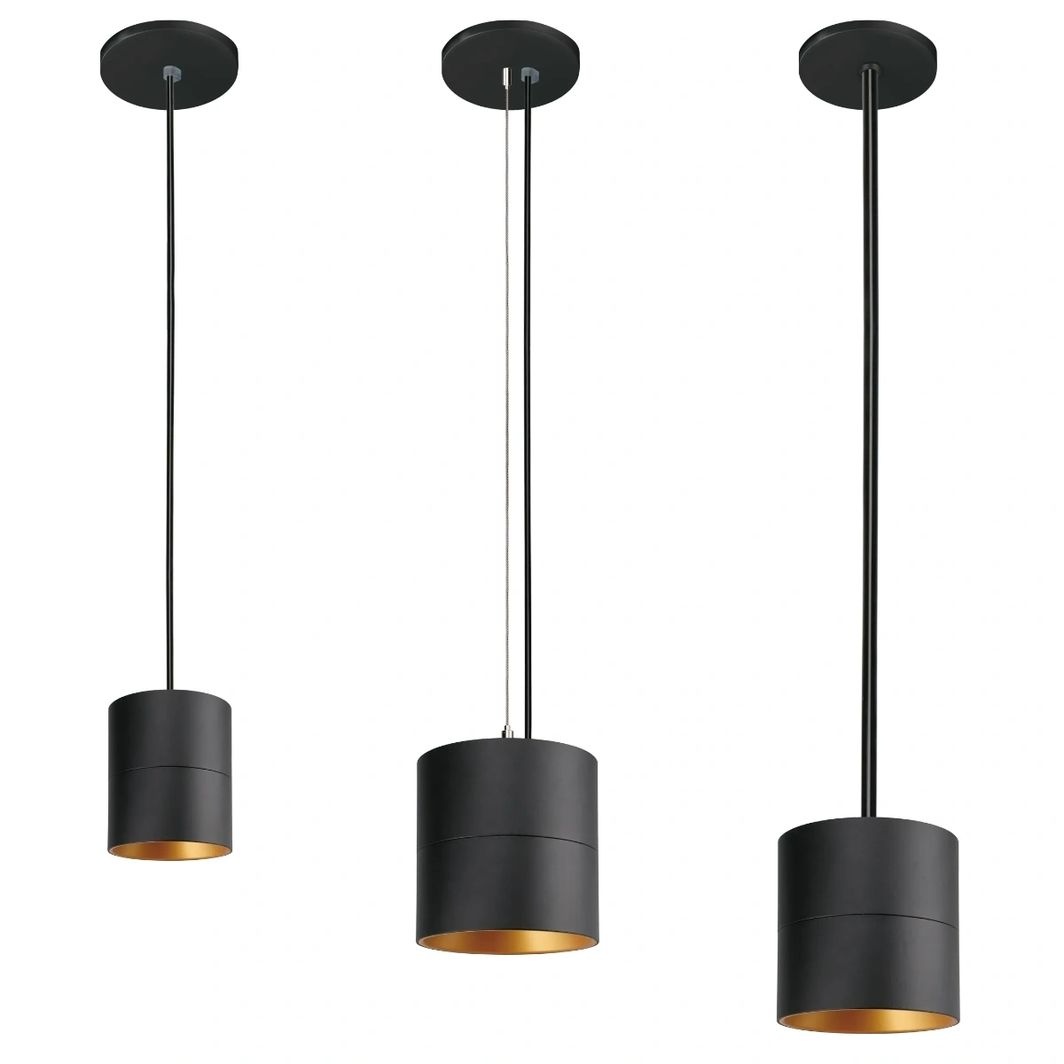

Pendant Stem Mount Ø12/25″ steel stem is provided in length specified (2′ nominal, 4′ nominal, or 8’nominal) and is provided in white or black finish.

Lumens	4,200/3,150/2,100 Lumen Field Selectable
Voltage	100-277V AC Input
Ratings and Certifications	Damp Location UL
Finish	Black
Mounting	Pendant Mount
Surge Protection	–
Operating Temp	-20°C ~ 40°C (-4°F ~ 104°F)
Lens	Narrow(15°), Medium(24°), Wide(36°) or Flood(60°) Optic
Length	5.88 in.
Height	5.91 in.
Width	5.88 in.
Package Quantity	1
Weight
Warranty	5-Year Limited
