LED Cylinder Light 4-Inch White Finish 90 CRI Cable Pendant Mount (OSL-CYL-4)

Products

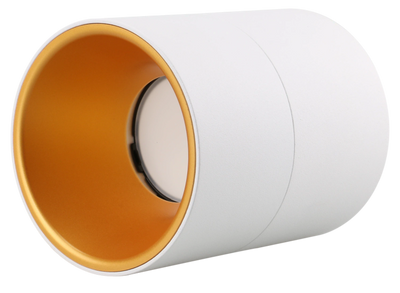

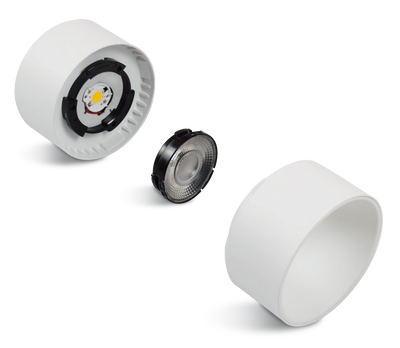

Modular design LED cylinder light
Die-cast aluminum housing with polyester paint powder coated
Available in 4″, 6″ and 8″ with surface and pendant(cable, stem) mount
120-277V AC Input
0-10V dimming as standard (10% or 1% dim)
Optional Triac dim available
4″ Cylinder : 25W/18W/12W wattage selectable
95 Lumen per watt (2,375/1,710/1,140 lumen output) based on 3000K 80 CRI
80 CRI or 90 CRI
2700K, 3000K, 3500K, 4000K CCT available (not field selectable)
Different beam angle options (15°, 24°, 36°, 60° optic lens)
Trim options (white, black, copper, chrome)
White or black finish housing
Pendant and surface mount available for both recessed and surface J-box

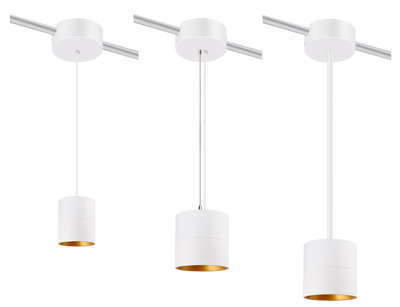

Cable and stem mount available in 2ft, 4ft or 8ft length
Damp rated for ambient operating temperature of -20°C to +40°C (-4° to+104°F)
UL listed
5 years warranty

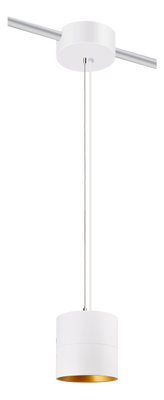

Cable Mount White/black cable is provided in length specified (2′ nominal, 4′ nominal or 8′ nominal).
Installers can cut the cable in the field to desired length.
Notes: For 4″ Cylinder, only use the power cable to suspend.
For 6″ and 8″ Cylinder, the power cable and aircraft cable are separated.

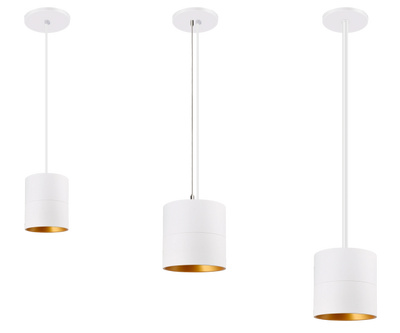

Pendant Stem Mount Ø12/25″ steel stem is provided in length specified (2′ nominal, 4′ nominal, or 8’nominal) and is provided in white or black finish.

Lumens	2,375/1,710/1,140 Lumen Field Selectable
Voltage	100-277V AC Input
Ratings and Certifications	Damp Location UL
Finish	White

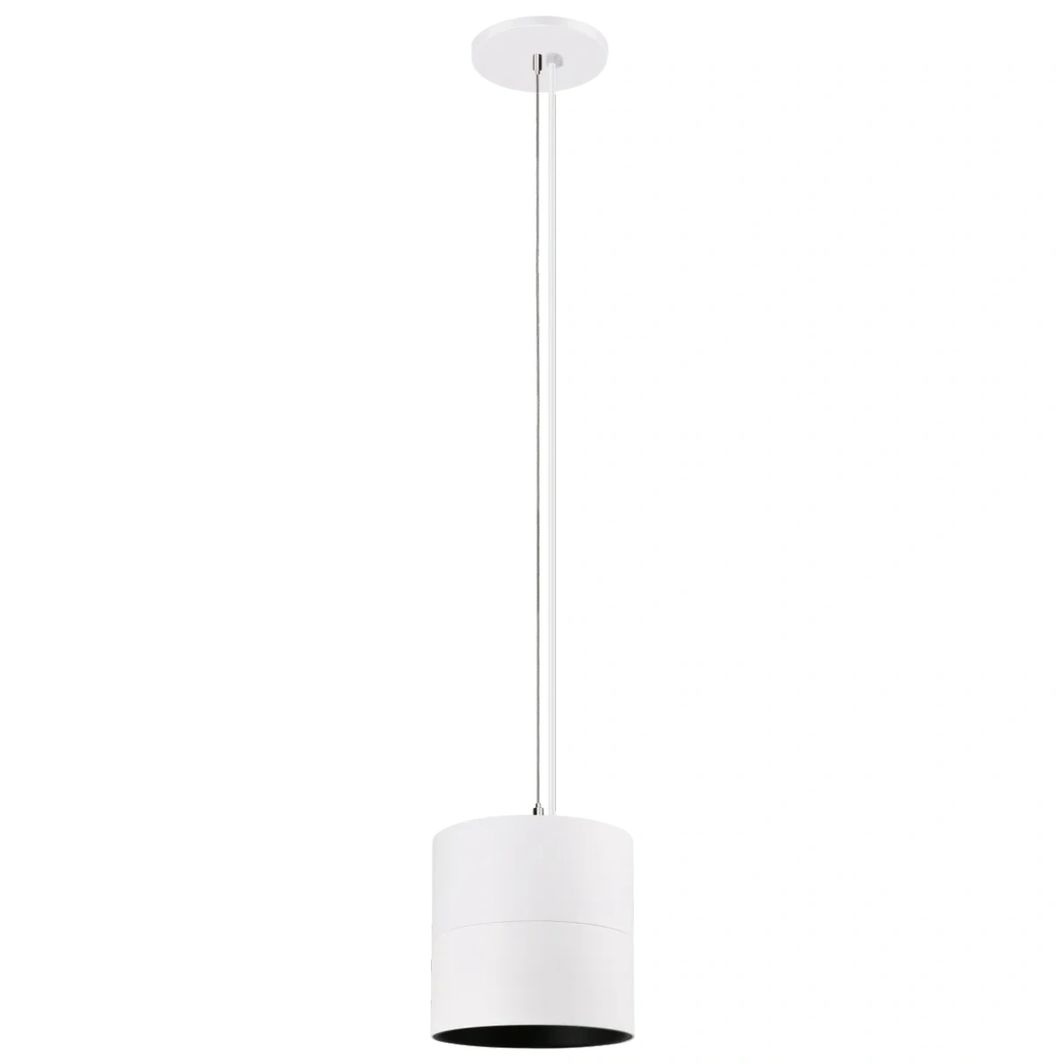

Mounting	Pendant Mount
Surge Protection	–
Operating Temp	-20°C ~ 40°C (-4°F ~ 104°F)
Lens	Narrow(15°), Medium(24°), Wide(36°) or Flood(60°) Optic
Length	3.94 in.
Height	4.92 in.
Width	3.94 in.
Package Quantity	1
Weight
Warranty	5-Year Limited
