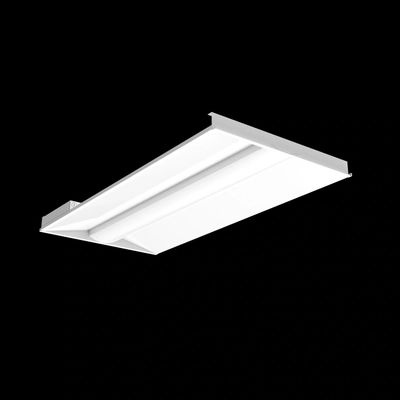

LED Center Basket Troffer 2×4 Field Selectable (2-Pack) (OSL-DM-TR24)

Products

Size

CCT

Packaging

Clear

Wattage switchable : 20W/25W/30W/35W/40W ( 2x2ft ) 25W/30W/35W/40W/50W ( 2x4ft )
CCT switchable: 3000K/3500K/4000K/5000K
0-10V dimmable
Input voltage: AC100-277V
Lumen Efficiency : 150Lm/W. 2×2 (3000-6000 Lumen), 2×4 (3750-7500 Lumen)
Aluminum heat sink for efficient heat dissipation
Application: office, schools, hospital, library etc
High efficiency isolated LED driver; High driver efficiency > 88%, PF > 0.9
Equipped with automatic low-voltage protection LED driver.
Wattage and CCT switchable through dip-switches.
High transmittance polycarbonate lens
High-quality LEDs, provide bright and uniform light
Compatible with standard 0-10V dimmer.
Can be recessed into grid ceiling.
DLC 5.1 premium.
Comply with the requirements of the Standard(s) for luminaires and are identified with the ETL Listed Mark.
5 years warranty

Brand	ONE SOURCE LIGHT
MPN (Part No.)	DM-TR24W5-S4
SKU	OSL-DM-TR24W5-S4 (2-PACK)
DLC Part Number	DM-TR24W5-S4
Lighting Technology	LED
LED Chip Type
Dimmable	Yes
CRI	80+
Color	Warm/Natural/Cool White Field Selectable
Color Temperature	3000/3500/4000/5000 Kelvin Field Selectable
LED L70 Life Hours	50,000
Wattage	25W/30W/35W/40W/50W Field Selectable
LPW	150
Fixture Type	Troffer

Lumens	3,750/4,500/5,250/6,000/7,500 Lumen Field Selectable
Voltage	110-277V AC Input
Ratings and Certifications	Damp Location ETL / DLC Premium 5.1
Finish	White
Mounting	Recessed Mount : T-bar Ceilling
Surge Protection
Operating Temp
Lens	Polycarbonate
Length	47.72 in.
Height	1.8 in.
Width	23.74 in.
Package Quantity	2
Weight	12.8 lb. per unit
Warranty	5-Year Limited
