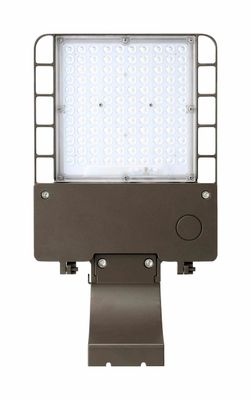

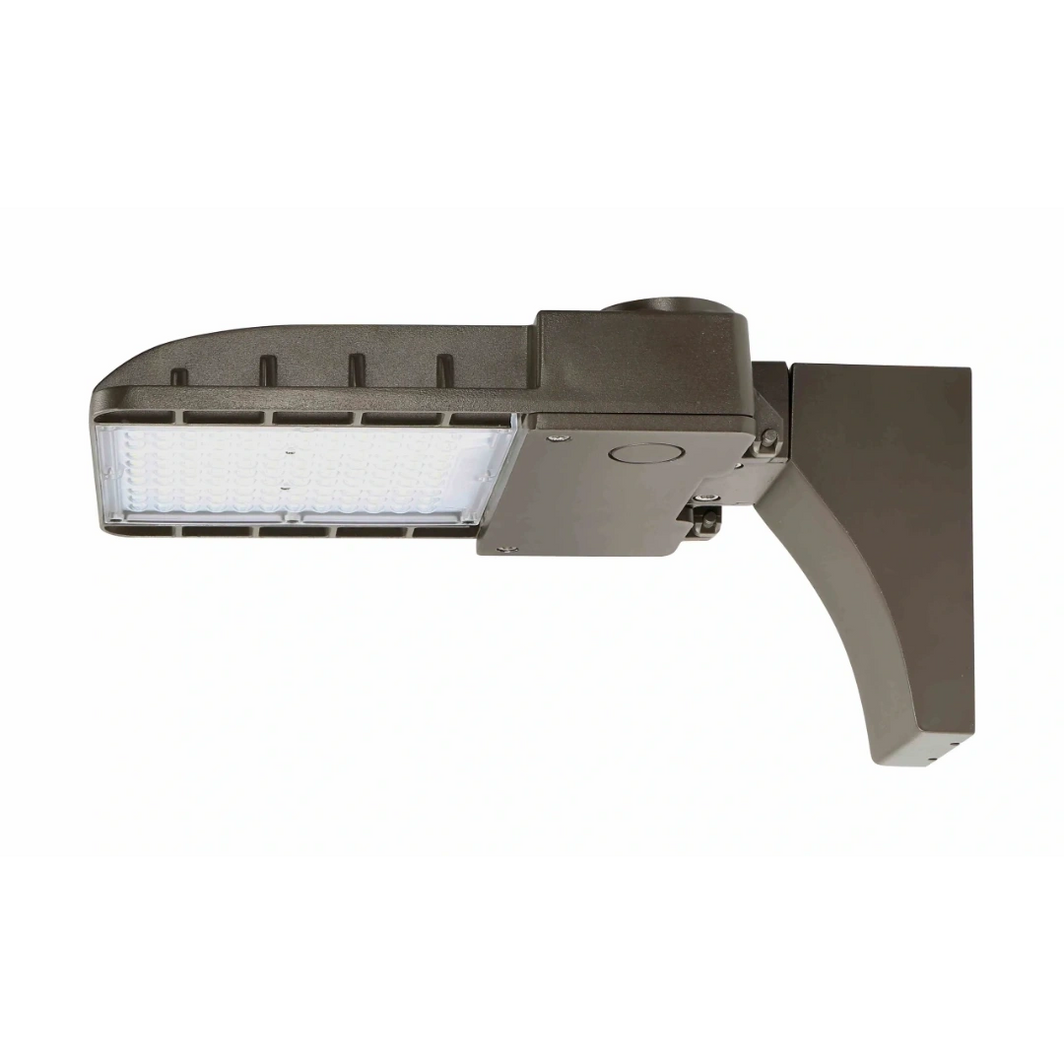

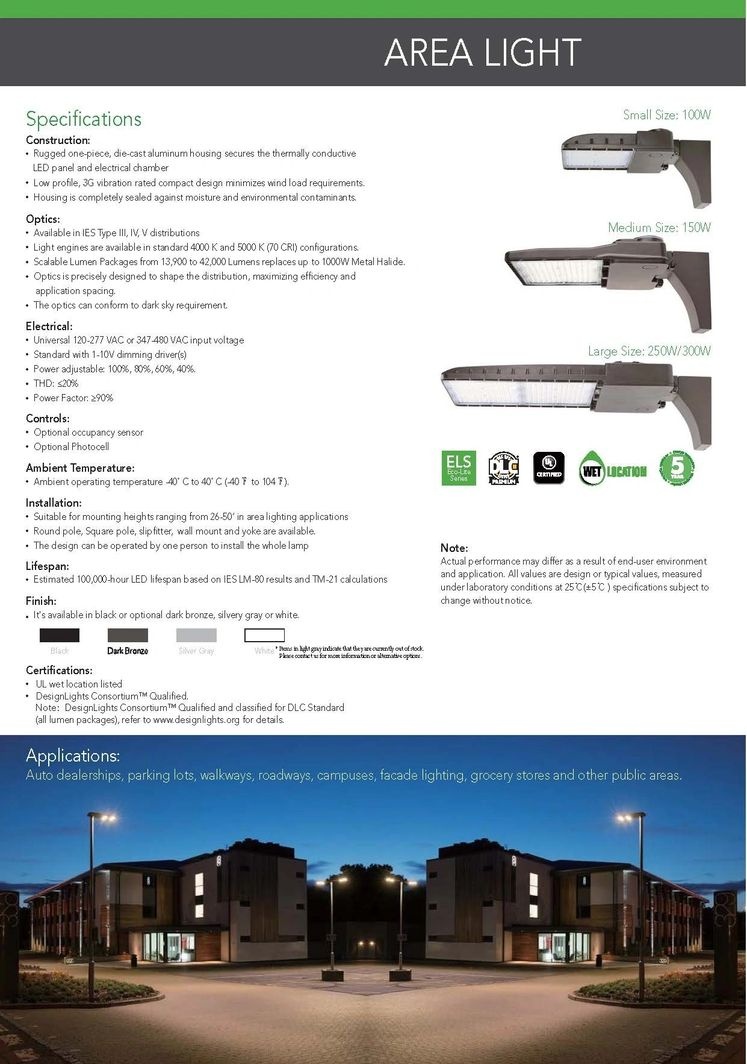

LED area light spec grade

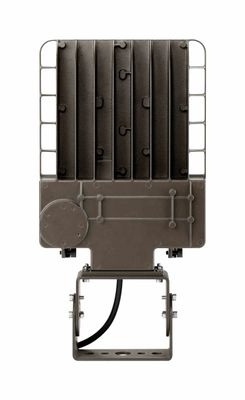

Rugged one-piece, die-cast aluminum housing secures the thermally conductive LED panel and electrical chamber
Low profile, 3G vibration rated compact design minimizes wind load requirements
Housing is completely sealed against moisture and environmental contaminants
Dark bronze finish as standard
Available in IES Type III distribution
The optics can conform to dark sky requirement

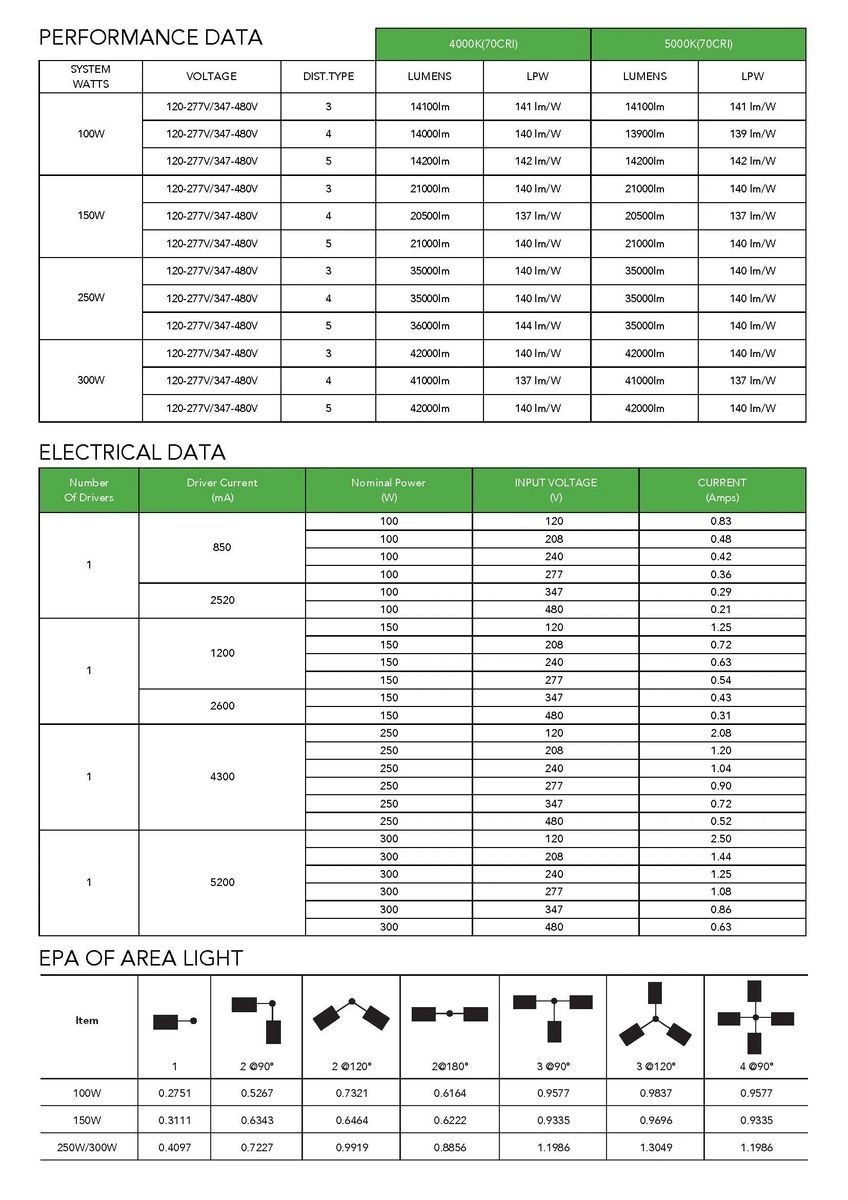

Scalable Lumen Packages from 13,900 to 42,000 Lumens replaces up to 1000W Metal Halide
100-Watt: 14100 lumen output (141 lm/w)
4000K or 5000K CCT
120-277V AC Input
0-10V Dimmable
Minimum 70 CRI

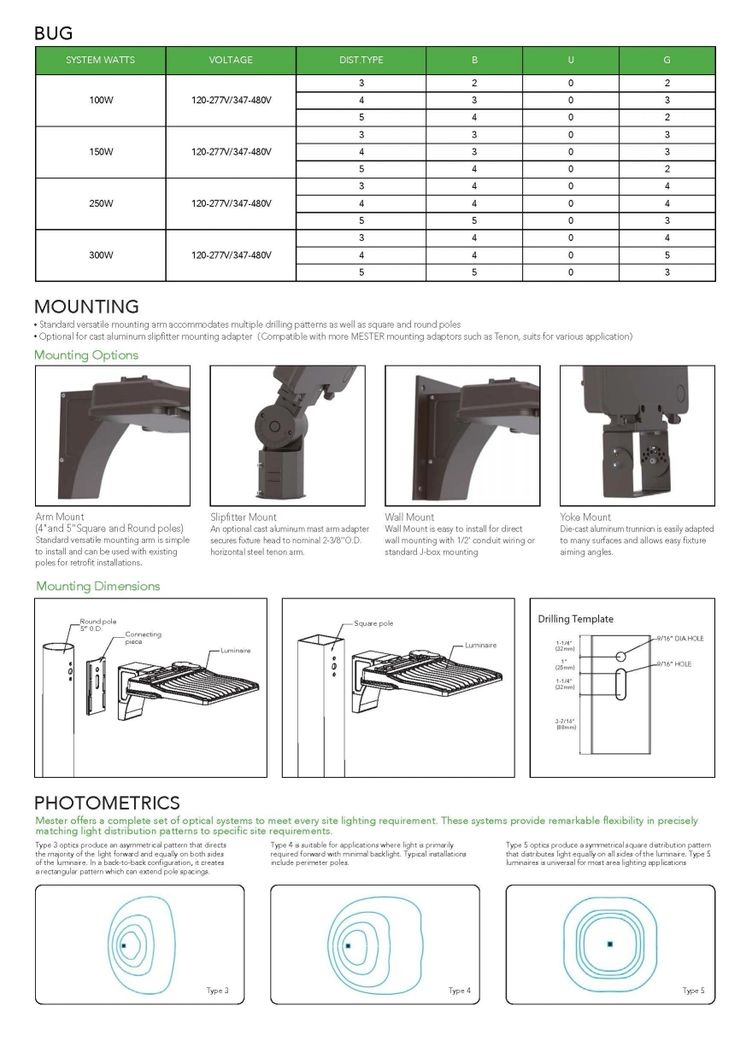

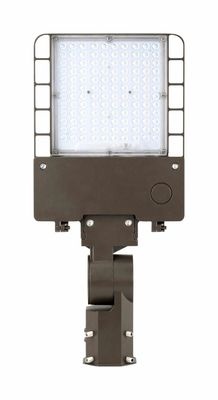

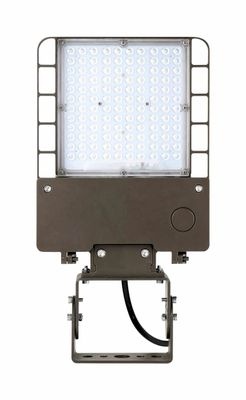

Square pole, round pole, slip Fitter, yoke or wall mount options available
Adjustable pole mount option available
-40°F ~ 104°F (-40°C ~ 40°C) operating temperature
100,000+ hours LED life span
UL Listed for wet location
DLC Premium listed
5 years warranty

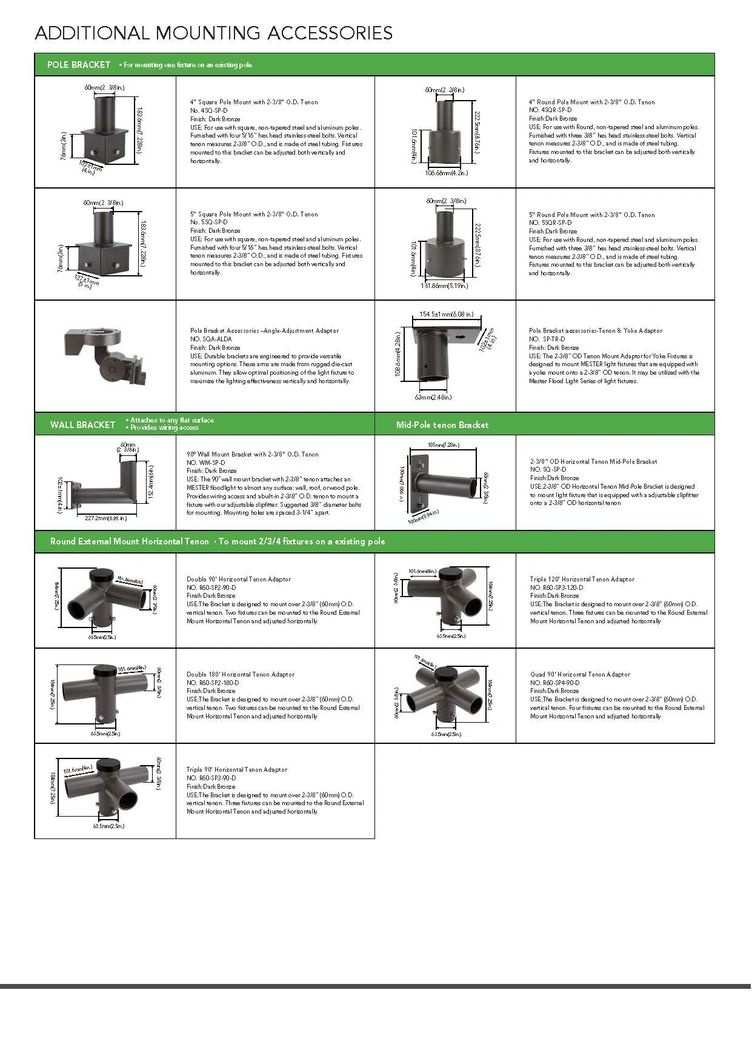

Additional Mounting accessories are available

Lumens	14,100 Lumen
Voltage	100-277V AC Input
Ratings and Certifications	Wet Location UL / DLC Premium 5.1
Finish	Dark Bronze
Mounting	Pole, Slip Fitter, Yoke or Wall Mount
Surge Protection	–
Operating Temp	-40°C ~ 40°C (-40°F ~ 104°F)
Lens	–

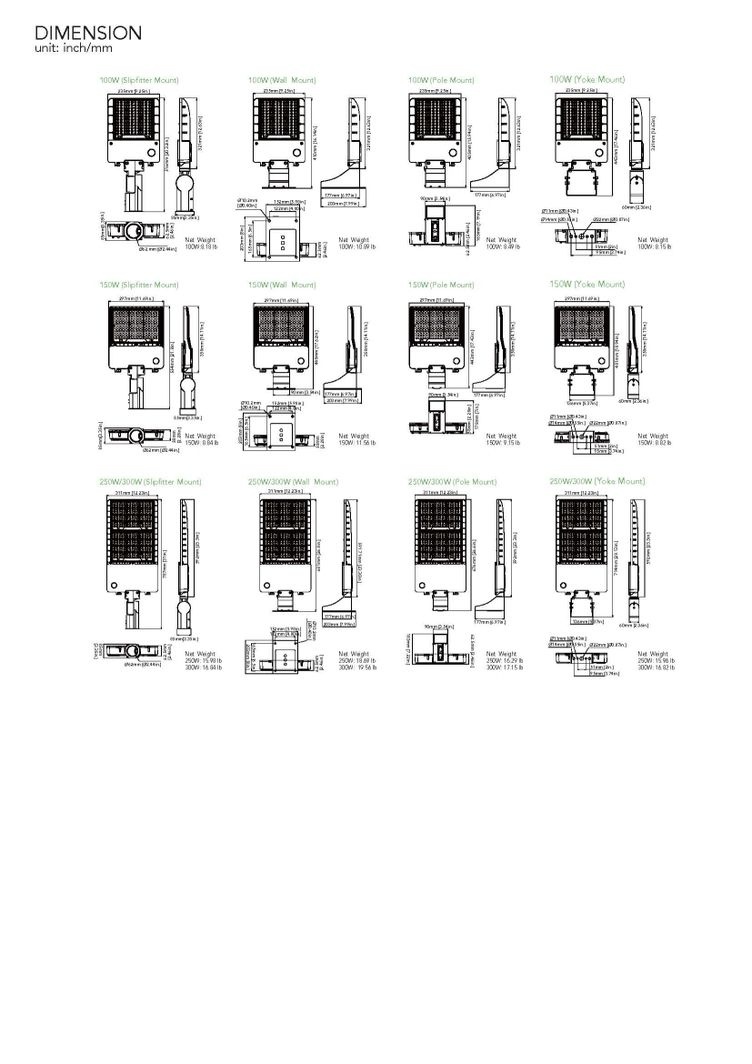

Length	12.63 in.
Height	2.46 in.
Width	9.25 in.
Package Quantity	1
Weight	8.18 lb. per unit
Warranty	5-Year Limited
