LED area light power adjustable

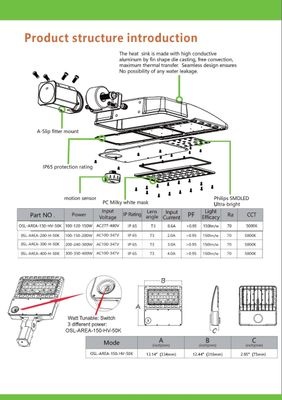

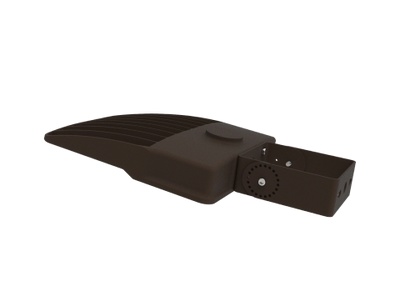

Rugged one-piece, die-cast aluminum housing secures the thermally conductive LED panel and electrical chamber
Low profile compact design minimizes wind load requirements
Housing is completely sealed against moisture and environmental contaminants (IP65)
Dark bronze finish as standard
Available in IES Type III distribution
Scalable Lumen Packages from 30,000 to 45,000 Lumens replaces up to 1000W Metal Halide
150 lumen per watt high efficiency with field adjustable wattage
300-Watt: 300/240/200W (45000/36000/30000) lumen output (150 lm/w)
5000K CCT
120-347V (200/300/400W)
0-10V Dimmable
Minimum 70 CRI

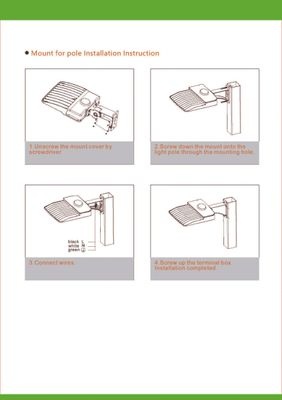

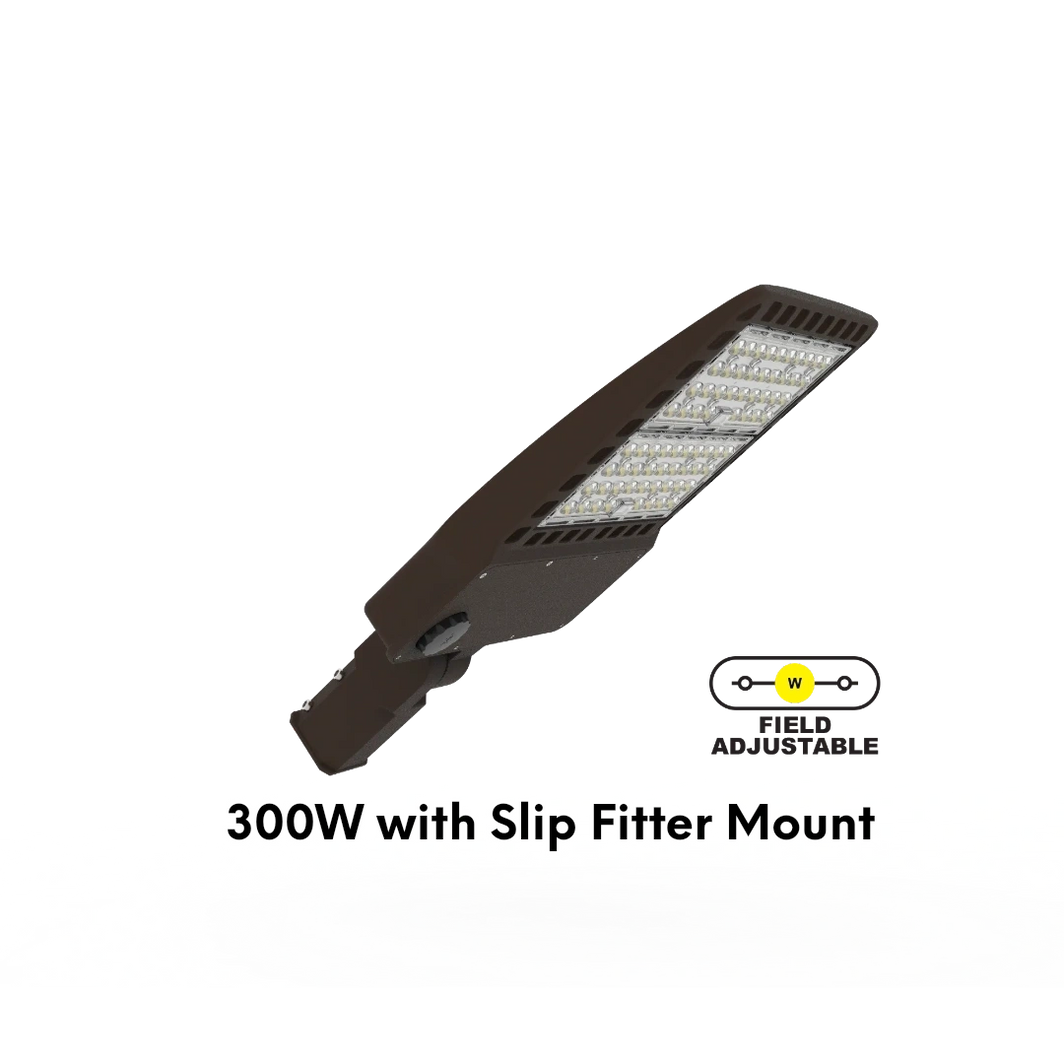

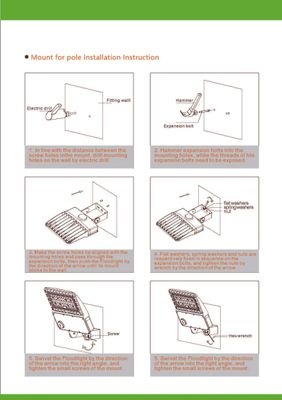

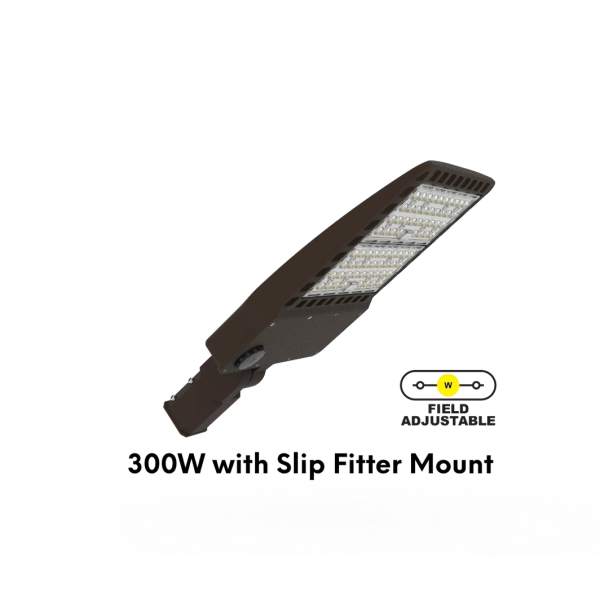

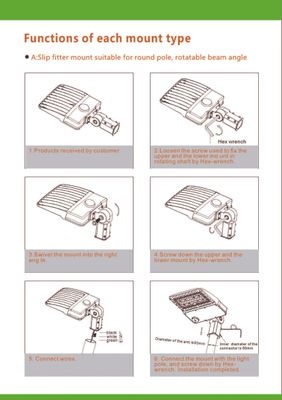

Adjustable Square/round pole, slip fitter or trunnion mount options available
-4°F ~ 104°F (-20°C ~ 40°C) operating temperature
50,000+ hours LED life span
UL Listed for wet location
DLC Premium listed
5 years warranty
Additional Mounting accessories are available

Lumens	45,000/36,000/30,000 Lumen Field Selectable
Voltage	120-347V AC Input
Ratings and Certifications	Wet Location UL / DLC Premium 5.1
Finish	Dark Bronze
Mounting	Pole, Slip Fitter or Trunnion Mount
Surge Protection
Operating Temp	-20°C ~ 40°C (-4°F ~ 104°F)
Lens	–
Length	17.91 in
Height	2.95 in.
Width	12.44 in.
Package Quantity	1
Weight	12.8 lb. per unit
Warranty	5-Year Limited
