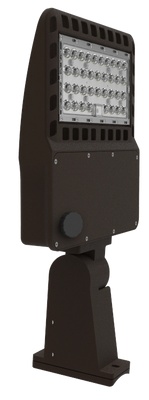

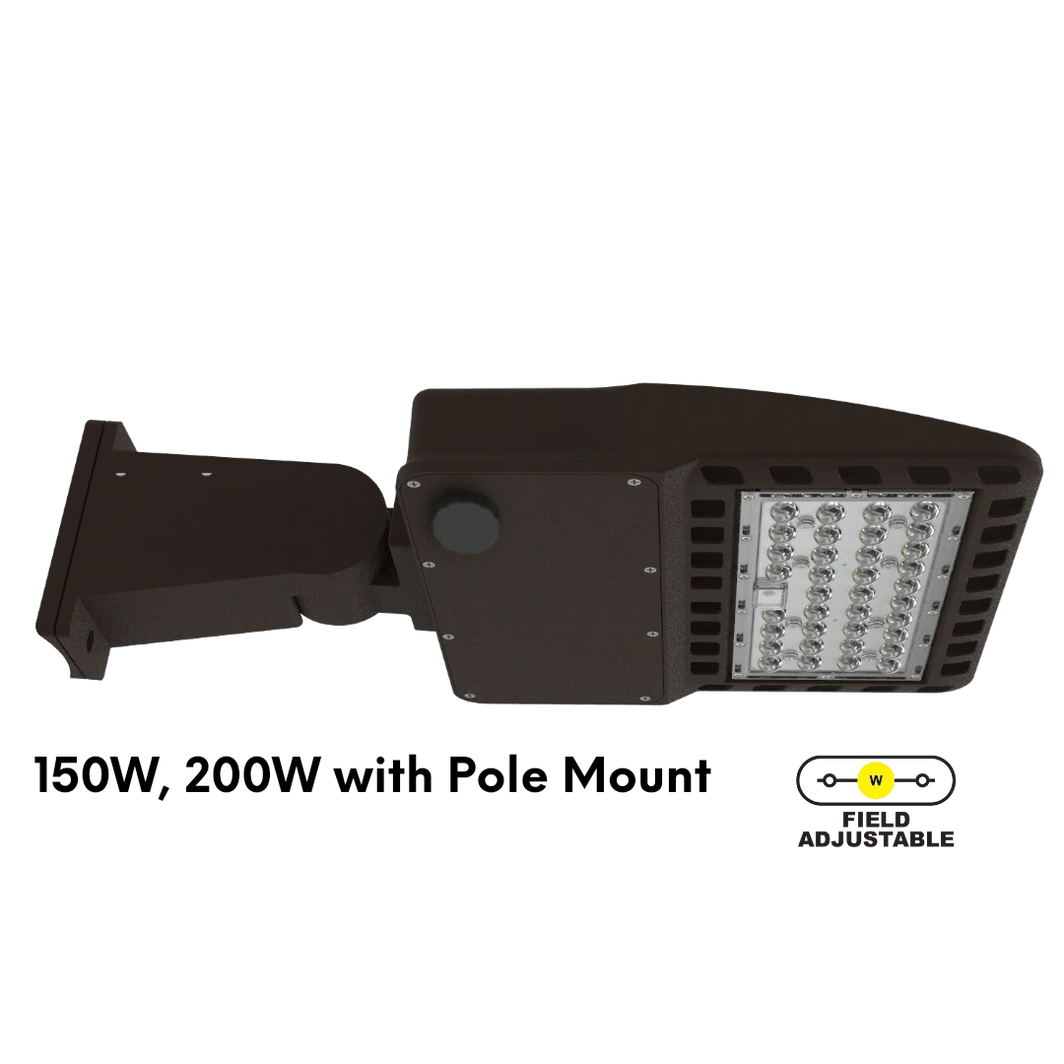

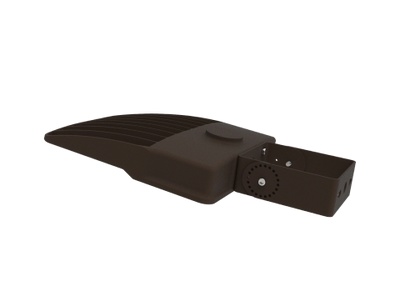

LED area light power adjustable

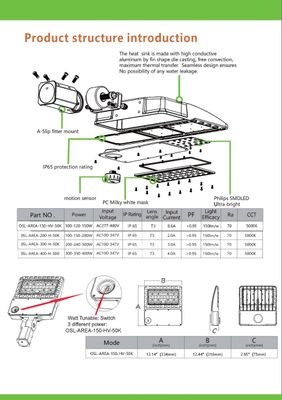

Rugged one-piece, die-cast aluminum housing secures the thermally conductive LED panel and electrical chamber
Low profile compact design minimizes wind load requirements
Housing is completely sealed against moisture and environmental contaminants (IP65)
Dark bronze finish as standard
Available in IES Type III distribution
Scalable Lumen Packages from 15,000 to 30,000 Lumens replaces up to 400W Metal Halide
150 lumen per watt high efficiency with field adjustable wattage
150-Watt: 150/120/100W (22500/18000/15000 lumen output) 150 lm/w
200-Watt: 200/150/100W (30000/22500/15000) lumen output (150 lm/w)
5000K CCT
120-347V (200/300/400W) or 277-480V (150W) AC Input
0-10V Dimmable
Minimum 70 CRI

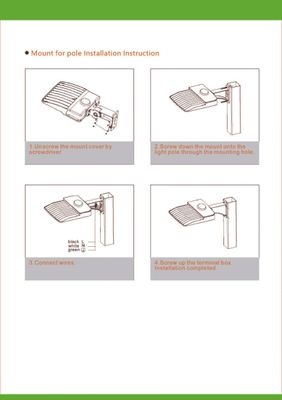

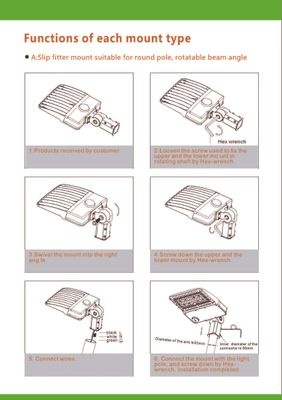

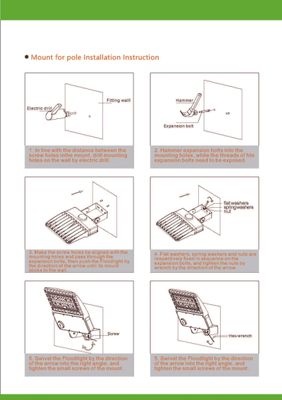

Adjustable Square/round pole, slip fitter or trunnion mount options available
-4°F ~ 104°F (-20°C ~ 40°C) operating temperature
50,000+ hours LED life span
UL Listed for wet location
DLC Premium listed
5 years warranty
Additional Mounting accessories are available

Brand	ONE SOURCE LIGHT
MPN (Part No.)	SX3-150W SXT-200W
SKU	OSL-AREA-150 OSL-AREA-200
DLC Part Number	SX3-150W SXT-200W
Lighting Technology	LED
LED Chip Type	–
Dimmable	Yes
CRI	70+
Color	Cool White
Color Temperature	5000 Kelvin
LED L70 Life Hours	50000
Wattage	150/120/100W Field Selectable 200/150/100W Field Selectable
LPW	150
Fixture Type	Area Light

Lumens	22,500/18,000/15,000 Lumen Field Selectable 30,000/22,500/15,000 Lumen Field Selectable
Voltage	120-277V or 277-480V AC Input
Ratings and Certifications	Wet Location UL / DLC Premium 5.1
Finish	Dark Bronze
Mounting	Pole, Slip Fitter or Trunnion Mount
Surge Protection
Operating Temp	-20°C ~ 40°C (-4°F ~ 104°F)
Lens	–

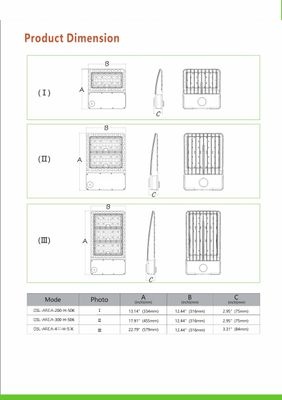

Length	13.14 in.
Height	2.95 in.
Width	12.44 in.
Package Quantity	1
Weight	10.3 lb. per unit
Warranty	5-Year Limited
