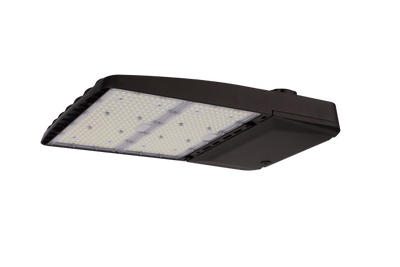

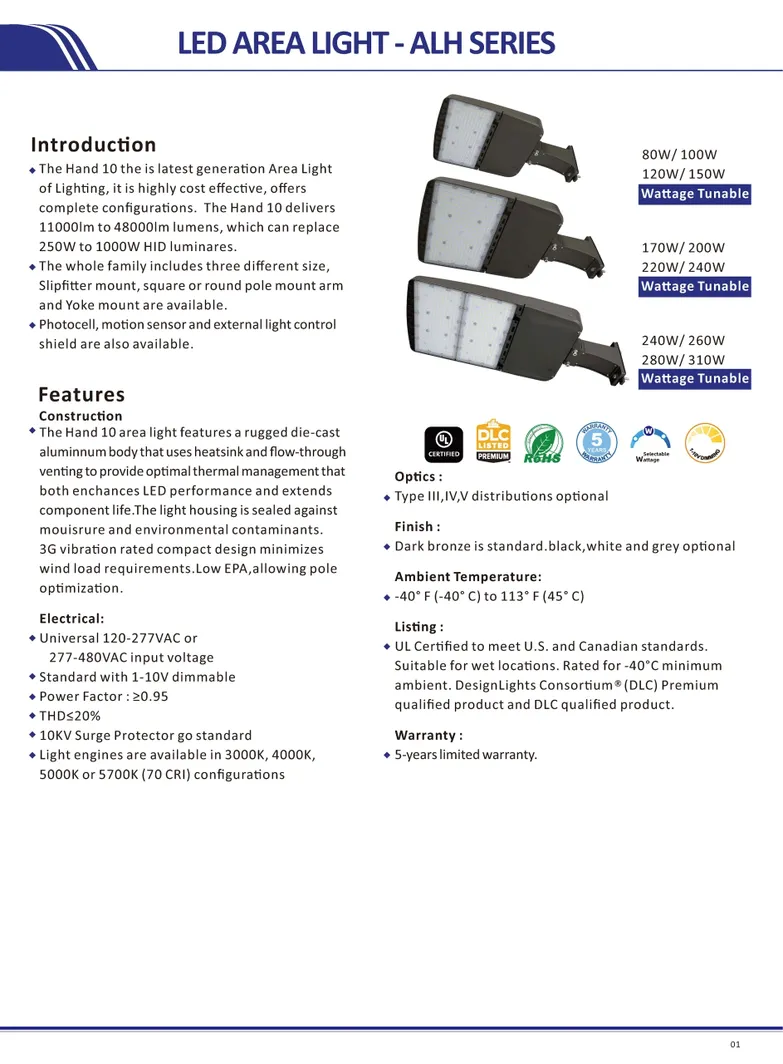

LED area light power adjustable Gen2

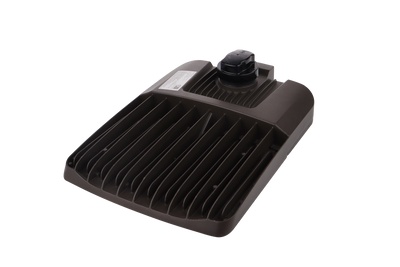

Rugged one-piece, die-cast aluminum housing secures the thermally conductive LED panel and electrical chamber
Low profile compact design minimizes wind load requirements
Housing is completely sealed against moisture and environmental contaminants
Dark bronze finish as standard
Available in IES Type III distribution
Scalable Lumen Packages from 12,240 to 42,363 Lumens replaces up to 1000W Metal Halide

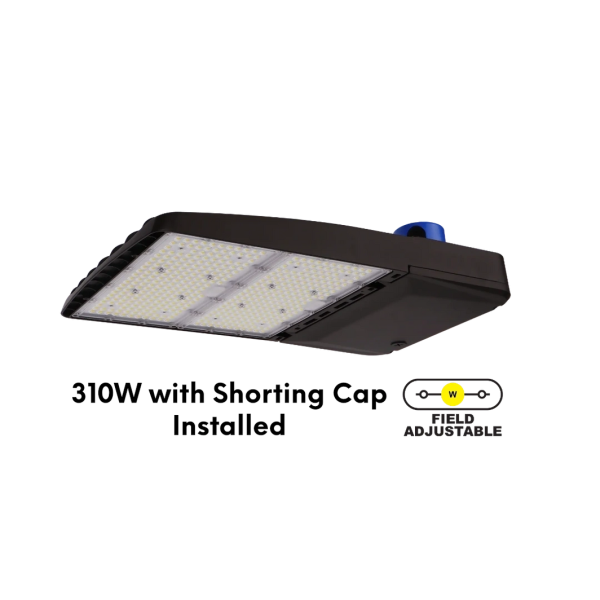

153 lumen per watt high efficiency with field adjustable wattage

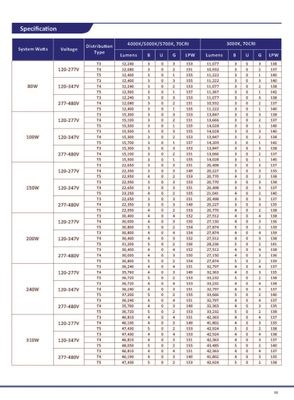

310-Watt: 310/280/260/240W (46810/42840/39780/36240) lumen output (153 lm/w)
4000K or 5000K CCT
120-277V or 277-480V AC Input
0-10V Dimmable
Minimum 70 CRI

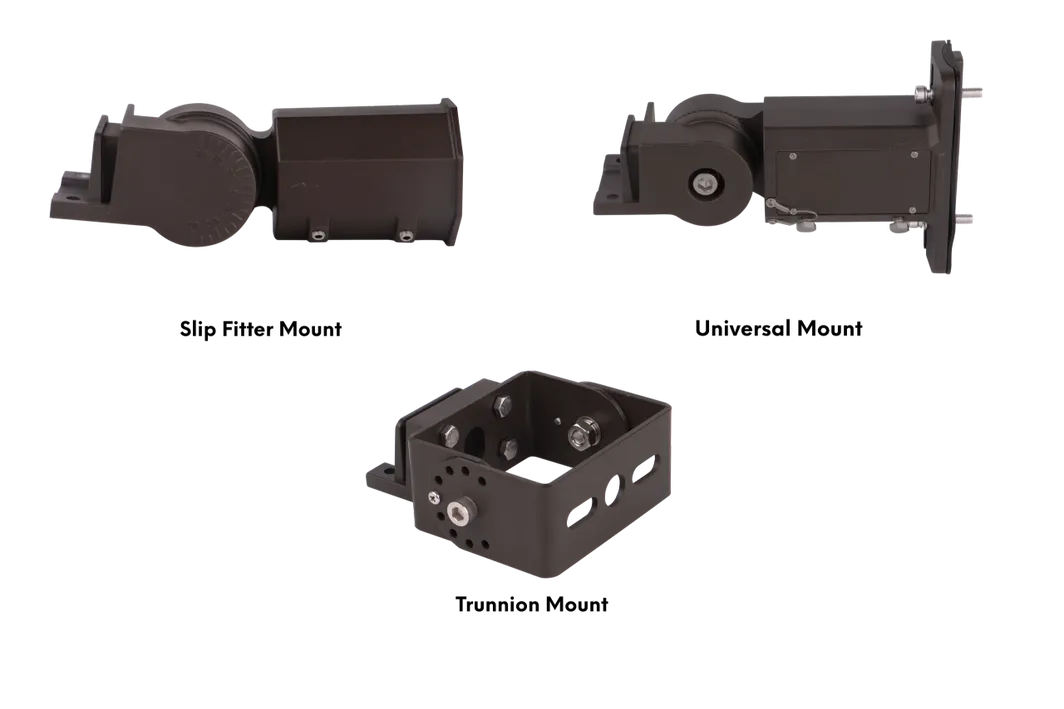

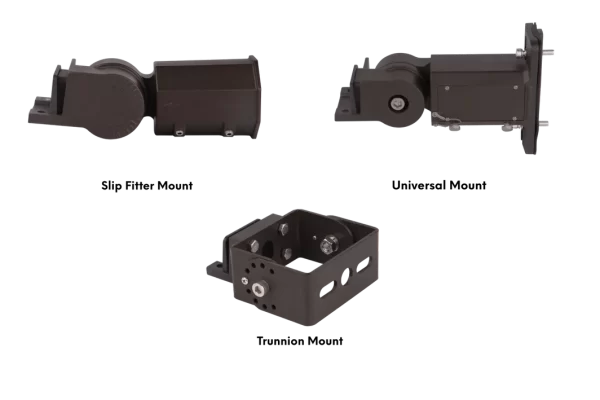

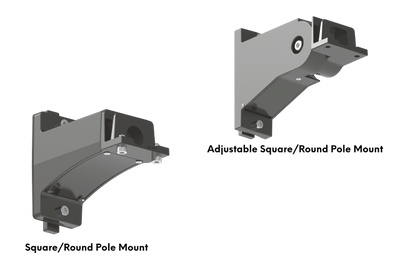

Square/round pole, Adjustable Square/round pole, universal, slip fitter or trunnion mount options available
-40°F ~ 113°F (-40°C ~ 45°C) operating temperature
50,000+ hours LED life span

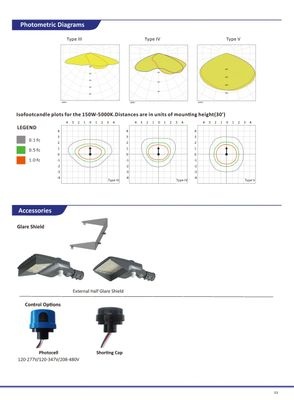

Optional Photocell and glare shield available
UL Listed for wet location
DLC Premium listed
5 years warranty
Additional Mounting accessories are available

Lumens	46,810/42,840/39,780/36,240 Lumen Field Selectable
Voltage	120-277V or 277-480V AC Input
Ratings and Certifications	Wet Location UL / DLC Premium 5.1
Finish	Dark Bronze
Mounting	Pole, Universal, Slip Fitter or Trunnion Mount
Surge Protection	10kV
Operating Temp	-40°C ~ 45°C (-40°F ~ 113°F)
Lens	–
Length	20.1 in.
Height	2.4 in.
Width	11.8 in.
Package Quantity	1
Weight	13.2 lb. per unit
Warranty	5-Year Limited
