LED Adjustable Full Cutoff Slim Wall Pack 3,600 - 5,200 Lumen (OSL-MWP10)

LED Adjustable Full Cutoff Slim Wall Pack 3,600 - 5,200 Lumen (OSL-MWP10) - Image 2

LED Adjustable Full Cutoff Slim Wall Pack 3,600 - 5,200 Lumen (OSL-MWP10) - Image 3

LED Adjustable Full Cutoff Slim Wall Pack 3,600 - 5,200 Lumen (OSL-MWP10) - Image 4

LED Adjustable Full Cutoff Slim Wall Pack 3,600 - 5,200 Lumen (OSL-MWP10) - Image 5

LED Adjustable Full Cutoff Slim Wall Pack 3,600 - 5,200 Lumen (OSL-MWP10) - Image 6

LED Adjustable Full Cutoff Slim Wall Pack 3,600 – 5,200 Lumen (OSL-MWP10)

RESOURCES & DOWNLOADS

(0 Reviews)

$55.00 – $62.00

wattage & Lumen

CCT

Dimming

Clear

*wattage & Lumen

*CCT

*Dimming

Reset options
Photocell (Factory Installed) (optional)

Details

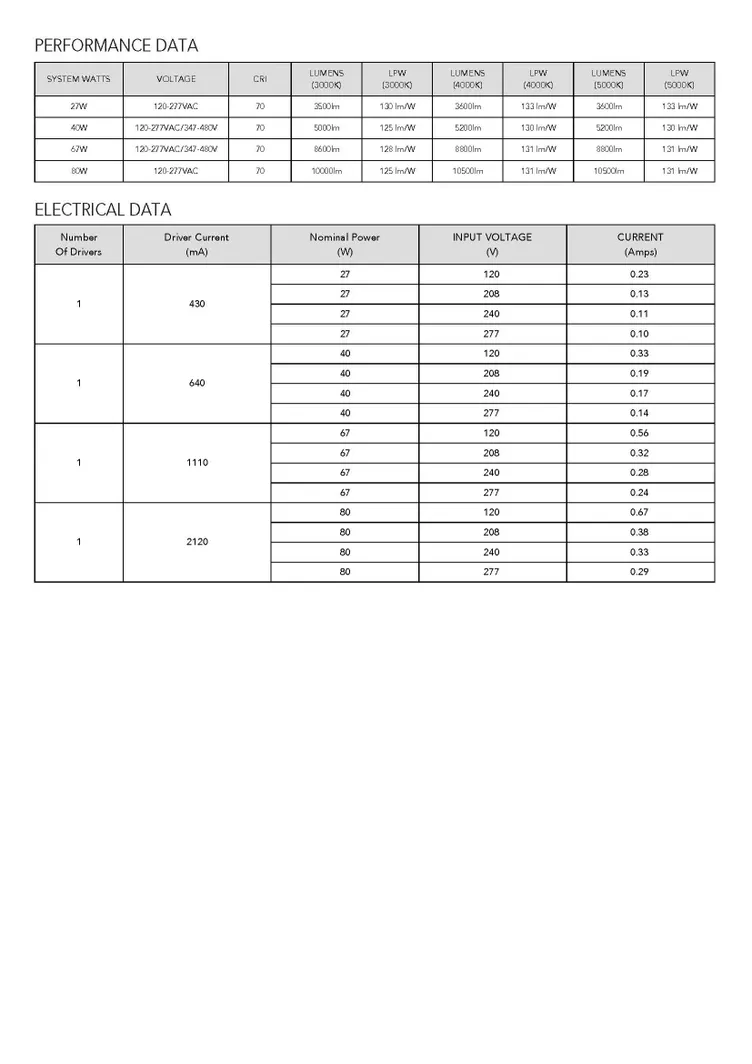

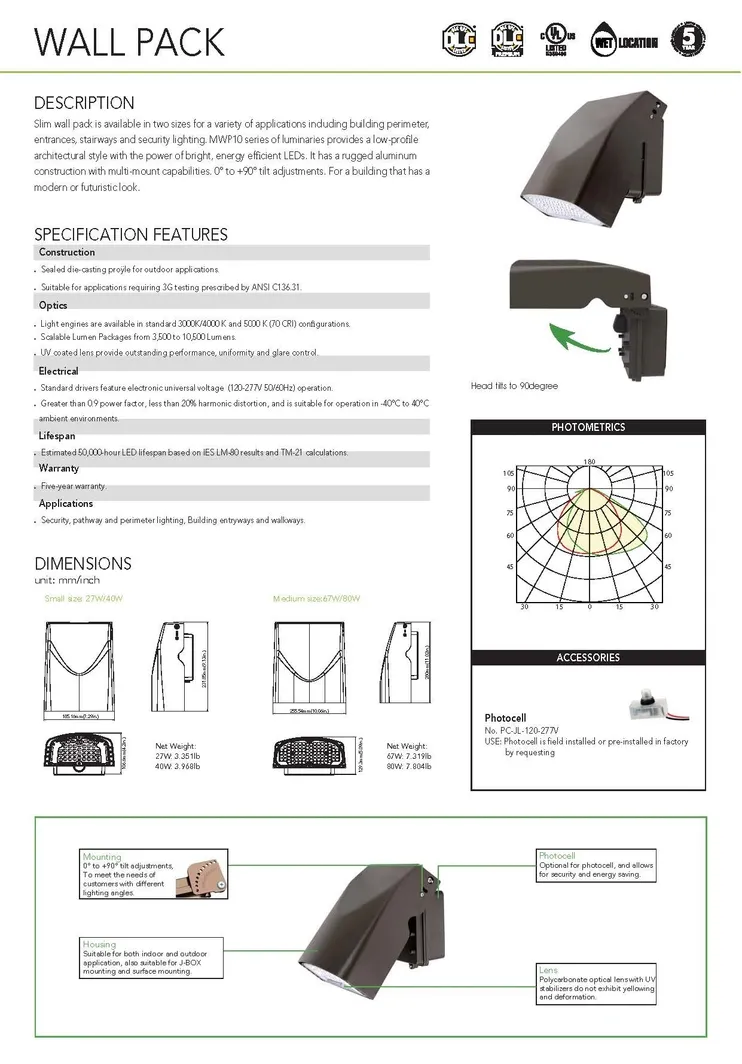

Brochures & Spec Sheets

Description

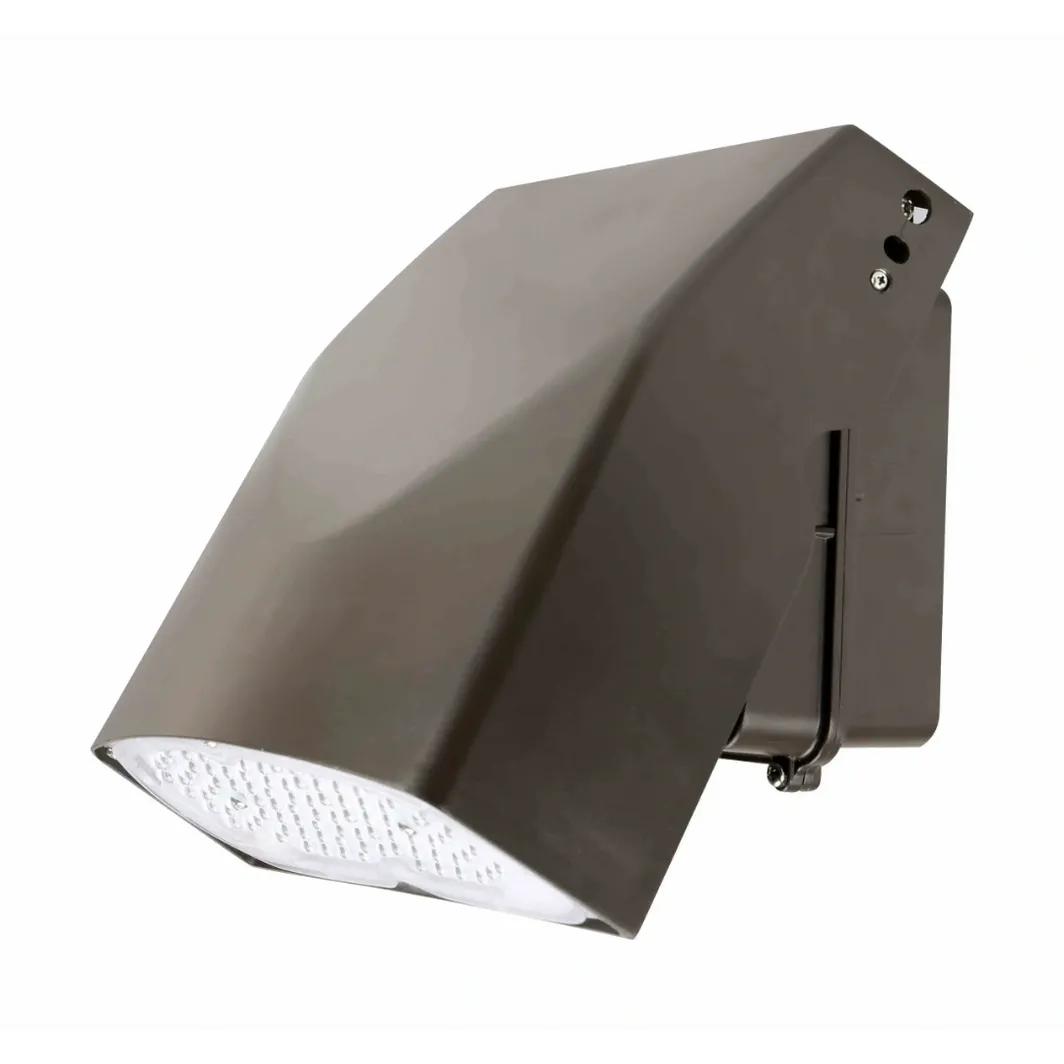

LED adjustable slim full cut-off wall pack
Fixed Wattage and CCT
UV stabilized PC optic cover and sealed die-cast aluminum housing
Dark bronze finish as standard
Suitable for applications requiring 3G testing prescribed by ANSI C136.31.
27-Watt: 3,600 lumen output (133lm/w)
40-Watt: 5,200 lumen output (130lm/w)
Available in 5000K CCT only
120-277V AC Input
0-10V continuous Dim or Non-dim
Minimum 70 CRI
-40°F ~ 104°F (-40°C ~ 40°C) operating temperature
50,000+ hours LED life span
UL Listed for wet location
DLC standard or premium listed
5 years warranty
Optional photocell available

Product Attributes

Brand	ONE SOURCE LIGHT
MPN (Part No.)	MWP10
SKU	OSL-MWP10
DLC Part Number	MWP10
Lighting Technology	LED
LED Chip Type	–
Dimmable	Yes
CRI	70+
Color	Cool White
Color Temperature	5000 Kelvin
LED L70 Life Hours	50,000
Wattage	27W 40W
LPW	up to 133
Fixture Type	Wall Pack

Lumens	3,600 Lumen (27W) 5,200 Lumen (40W)
Voltage	120-277V AC Input
Ratings and Certifications	Wet Location UL / DLC Premium(or Standard) 5.1
Finish	Dark Bronze
Mounting	Wall Mount
Surge Protection
Operating Temp	-40°C ~ 40°C (-40°F ~ 104°F)
Lens	Polycarbonate
Width	7.29 in.
Height	9.13 in.
Depth	4.2 in.
Package Quantity	1
Weight	up to 3.96 lb. per unit
Warranty	5-Year Limited
