LED Meta Linear Surface/Pendant 2-4FT (OSL-LV4-ITWF)

Products

Size

CCT

Finish

Clear

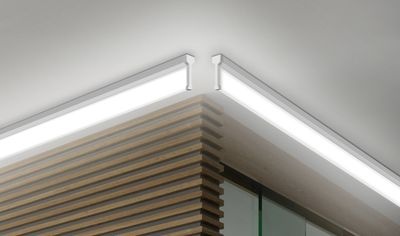

LED Architectural surface (ceiling & wall) linear light

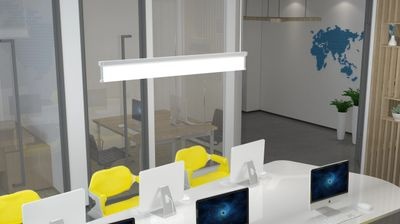

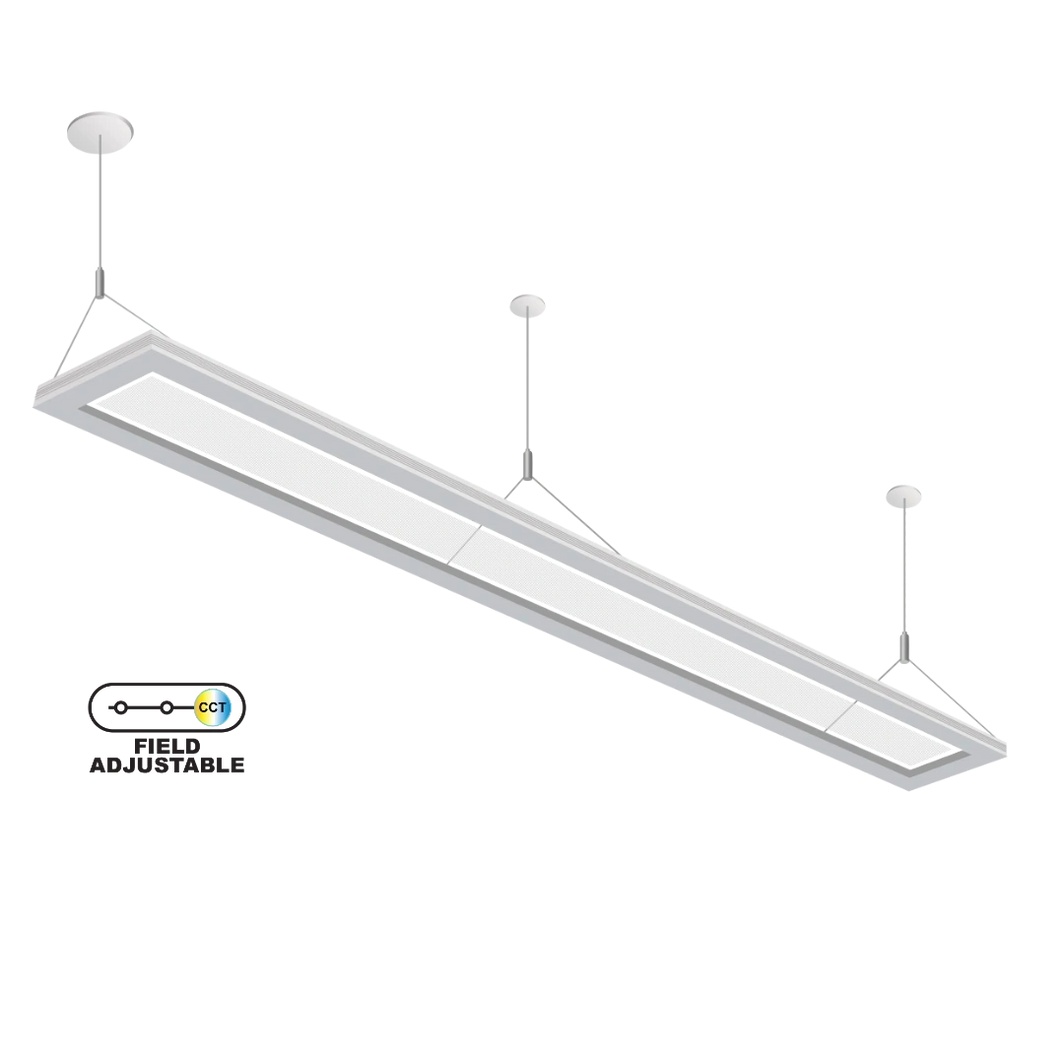

Optional pendant mount available
Available in 2,3,4ft
Transparent vertical optics
Provided with surface & wall mounting hardware as standard (optional pendant mount available)
Compatible with hard ceiling(standard) and drop ceiling(optional)
Wattage selectable except 2ft
2ft : 20W (2000lm)
3ft : 20/30/40W (1950/3000/3900lm)
4ft : 20/30/40W (2000/3000/4000lm)
CCT selectable from 3000K, 3500K and 4000K
120-277V AC Input
1-10V Continuous Dim
Minimum 90 CRI
Includes mounting hardware for surface mount as standard (optional pendant mount available)
UL Listed for damp location
50,000 hours L70 minimum LED lifetime
5 years warranty

Brand	ONE SOURCE LIGHT
MPN (Part No.)	LV4-ITW2F LV4-ITW3F LV4-ITW4F
SKU	OSL-LV4-ITW2F OSL-LV4-ITW3F OSL-LV4-ITW4F
DLC Part Number	LV4-ITW2F LV4-ITW3F LV4-ITW4F
Lighting Technology	LED
LED Chip Type
Dimmable	Yes
CRI	80+
Color	Warm/Natural White Field Selectable
Color Temperature	3000/3500/4000 Kelvin Field Selectable
LED L70 Life Hours	50,000
Wattage	20W(2FT) 20/30/40W Field Selectable(3FT) 20/30/40W Field Selectable(4FT)
LPW	100
Fixture Type	Linear Architectural

Lumens	2,000 Lumen(2FT) 1,950/3,000/3,900 Lumen Field Selectable(3FT) 2,000/3,000/4,000 Lumen Field Selectable(4FT)
Voltage	100-277V AC Input
Ratings and Certifications	Damp Location UL / DLC Standard 5.1
Finish	White
Mounting	Pendant, Surface or Wall Mount
Surge Protection
Operating Temp	-20°C ~ 40°C (-4°F ~ 104°F)
Lens	PMMA
Length	23.64 in.(2FT) 35.44 in.(3FT) 47.24 in.(4FT)
Height	5.35 in.
Width	1.58 in.
Package Quantity	1
Weight
Warranty	5-Year Limited
