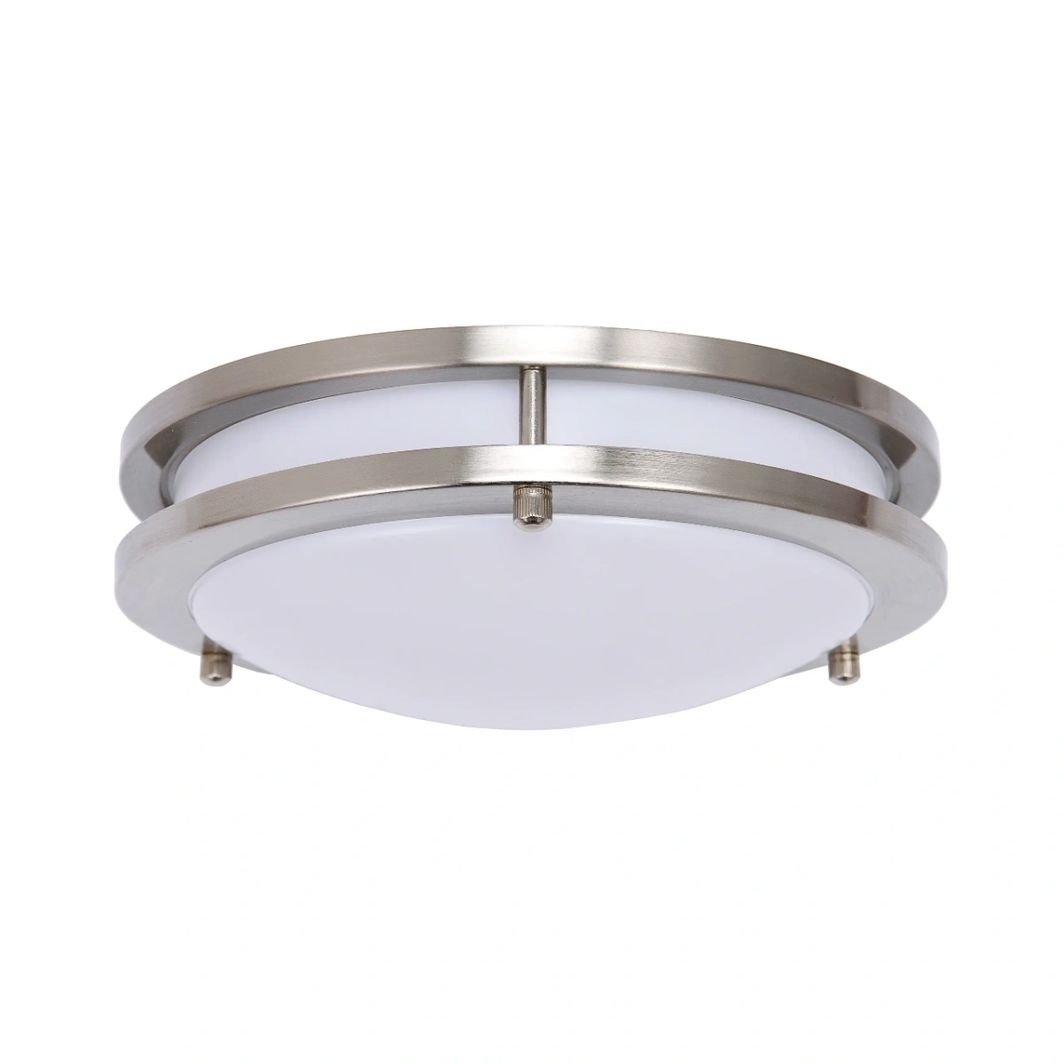

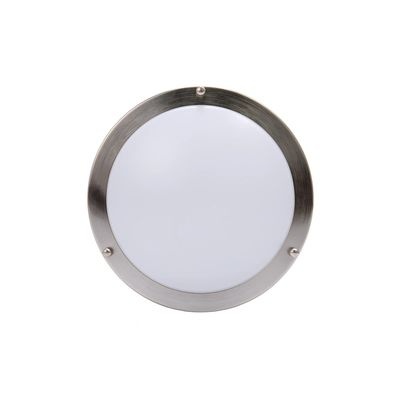

Double-Ring, Surface-Mount, CCT Selectable Light (OSL-DR)

Products

Size & Lumen

Clear

Field selectable 2700k (soft white), 3000k (warm white), 3500k (warm/neutral white), 4000k (neutral white), and 5000k (cool white) color temperatures.
Long-life LEDs provide at least 70% of initial lumen output (L70) for 93,000 hours of operation.
Color rendering index (Ra) > 90.
DR10 provides 1,000 nominal lumens from 15 nominal watts.
DR14 provides 1,800 nominal lumens from 20 nominal watts.
DR18 provides 2,000 nominal lumens from 20 nominal watts.
Input voltage = 120V 60Hz.
Power factor > 0.90.
Triac dimming.
Steel housing, brushed nickel finish.
Polystyrene lens.
Easy installation in new construction or remodel applications.
This device is not intended for use with emergency exits.
cETLus listed for damp locations in ambient temperatures of -15°C to 40°C (5°F to 104°F).
Energy Star qualified.
Title 24 qualified.
Complies with FCC Part 15, class B.
Input transient protection = 1kV.
5-year warranty of all electronics and housing.

Brand	ONE SOURCE LIGHT
MPN (Part No.)	DR10-10L-KFS DR14-18L-KFS DR18-20L-KFS
SKU	OSL-DR10 OSL-DR14 OSL-DR18
DLC Part Number	–
Lighting Technology	LED
LED Chip Type	–
Dimmable	Yes
CRI	90+
Color	Warm/Natural/Cool White Field Selectable
Color Temperature	2700/3000/3500/4000/5000 Kelvin Field Selectable
LED L70 Life Hours	93,000
Wattage	15W (OSL-DR10) 20W (OSL-DR14) 20W (OSL-DR18)
LPW	up to 100
Fixture Type	Ceiling Decorative

Lumens	1,000 Lumen (OSL-DR10) 1,800 Lumen (OSL-DR14) 2,000 Lumen (OSL-DR18)
Voltage	120V AC Input
Ratings and Certifications	Damp Location ETL / Energy Star / Title 24
Finish	Brushed Nickel
Mounting	Surface Ceiling Mount
Surge Protection	1kV
Operating Temp	-15°C to 40°C (5°F to 104°F)
Lens	Plystyrene
Length	10.0 in. (OSL-DR10) 14.0 in. (OSL-DR14) 18.0 in. (OSL-DR18)
Height	3.0 in. (OSL-DR10) 4.0 in. (OSL-DR14) 4.5 in. (OSL-DR18)
Width	10.0 in. (OSL-DR10) 14.0 in. (OSL-DR14) 18.0 in. (OSL-DR18)
Package Quantity	1
Weight	1.4 lbs (OSL-DR10) 2.2 lbs (OSL-DR14) 3.3 lbs (OSL-DR18)
Warranty	5-Year Limited
