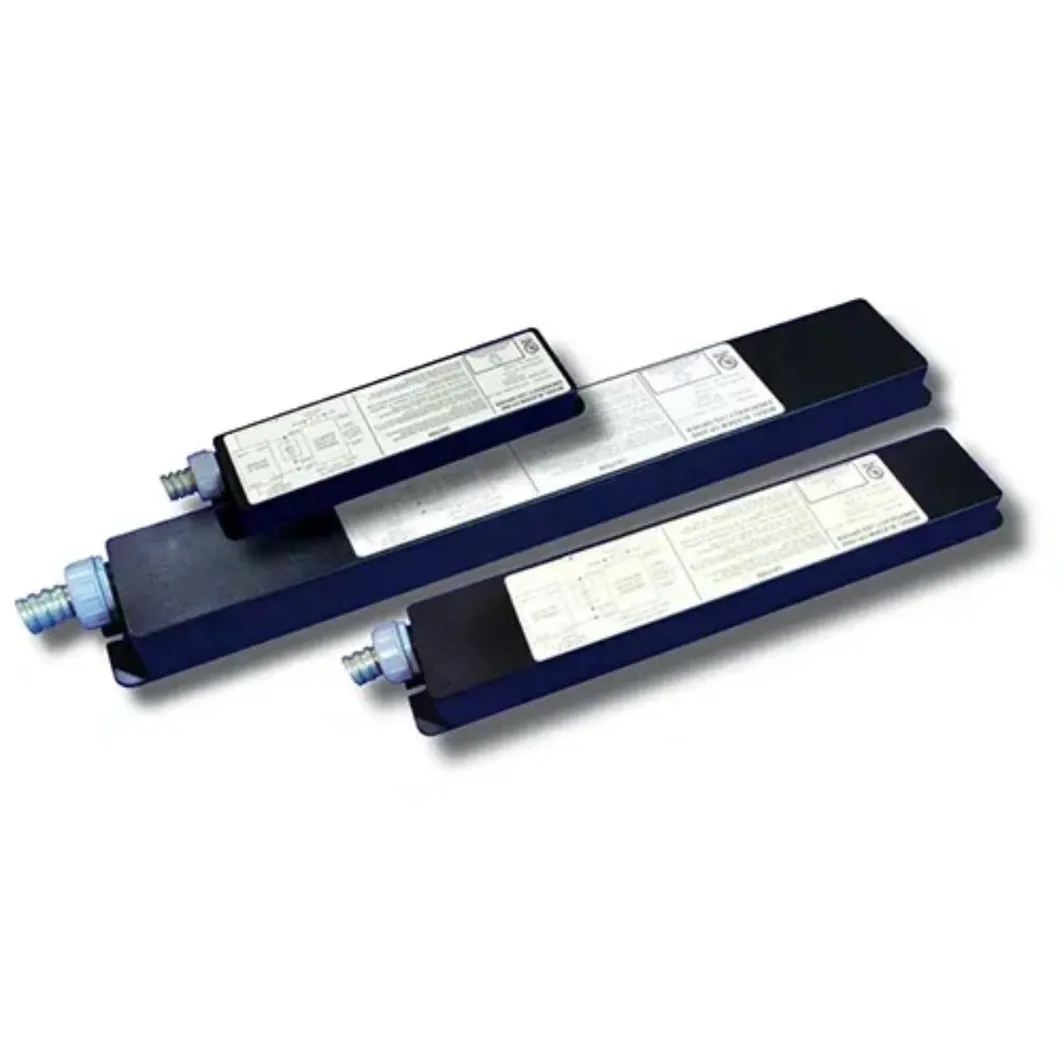

CONSTANT-POWER EMERGENCY LED DRIVER (BLEDEM-CP)
RESOURCES & DOWNLOADS
(0 Reviews)
$78.00 – $143.00
Details
Brochures & Spec Sheets
Description
- Provides constant power output to the load during emergency mode operation.
- Can be operated as NORMALLY-ON, NORMALLY-OFF or SWITCHED LOAD
- Universal 120-277V, 50-60 Hz input.
- Charge/Power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
- Long-life, maintenance free, rechargeable NiCad battery.
- Output short/overcurrent protection: Electronic limiting, with operation resuming upon removal of fault.
- 90 Minute minimum emergency operating time over full temperature range (other run times available upon request).
- Output classification: Class 2 Compliant (excludes -MV/-HV models.
- Surge protection: Per C62.41 (TVS).
- Input overcurrent protection: Fusible link.
- 24 hour maximum battery recharge time.
- LED illuminated and remote mounted test switch.
- Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in a black finish housing.
- Suitable for installation inside, on top, or in remote mount of the fixture.
- Optional CEC: Certified to CEC under Title 20 regulations
- UL Listed for factory or field installation.
- Suitable for damp locations (10°C – 55°C).
- Five year warranty on all electronics and housing.
- Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State codes.
