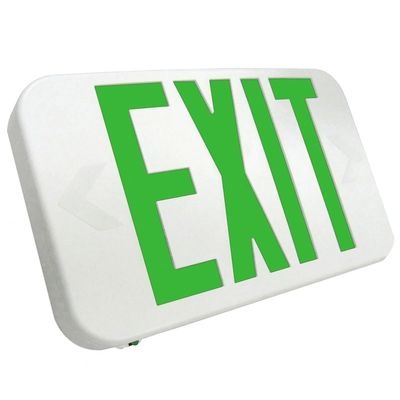

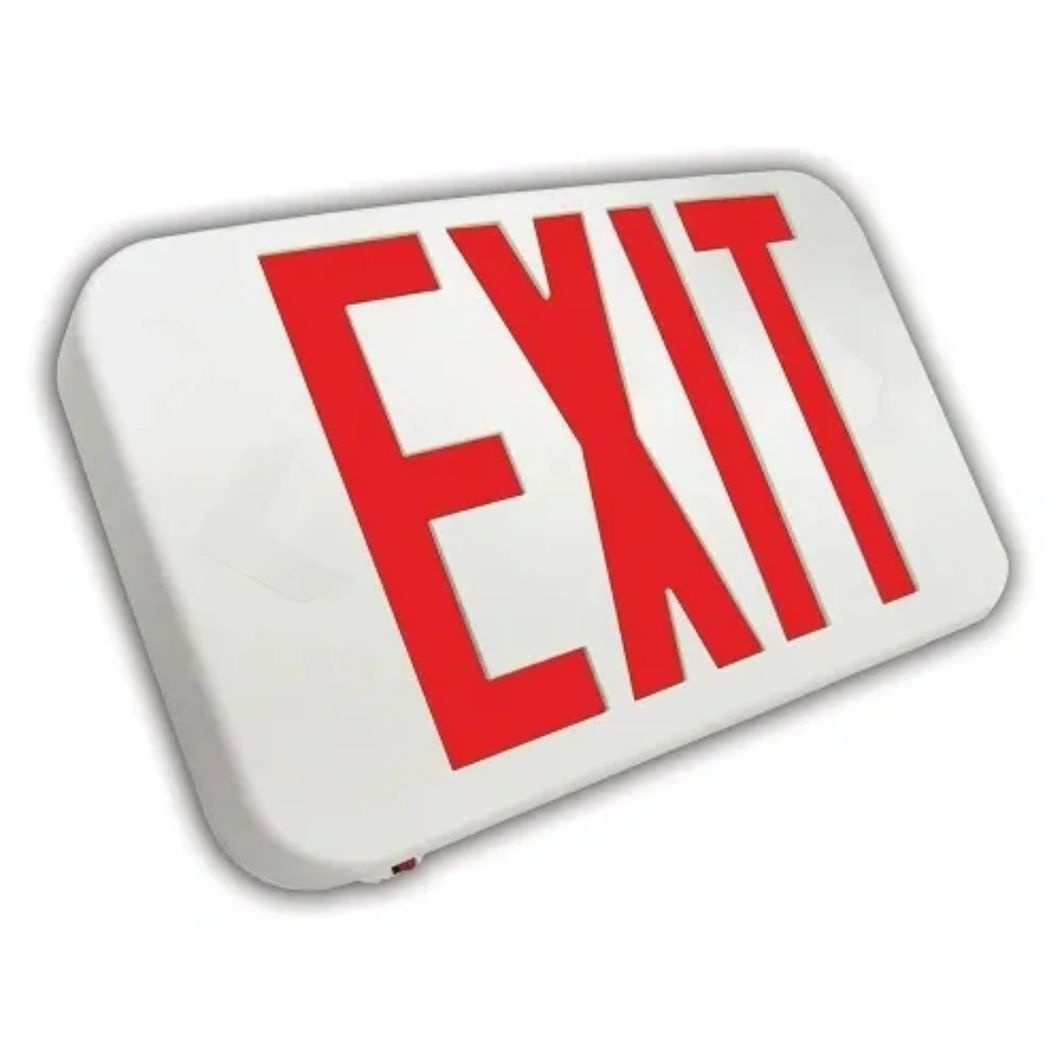

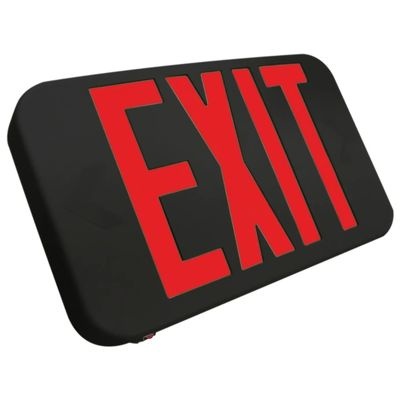

Compact Thermoplastic Exit Sign (OSL-EZRXTEU)
RESOURCES & DOWNLOADS
(0 Reviews)
$26.50 – $46.50
Details
Brochures & Spec Sheets
- Compact Thermoplastic Exit Sign
- Ultra bright, energy efficient, long life Red or Green LED.
- Dual 120/277 voltage.
- Charge rate/power “ON” LED indicator light and push-to-test switch for
mandated code compliance testing. - 1.2V Long life, maintenance-free, rechargeable NiCd battery.
- Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination.
- Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
- EZ-snap mounting canopy included for top or end mount.
- Universal knockout pattern on back plate for wall mount.
- Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in white or black finish.
- Aesthetically pleasing, curved face, rounded corner design.
- EZ snap-out chevron directional indicators.
- Options
- SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meet electrical and life safety codes. Universal 120-277 voltage.
- 2C-120V/2C-277V: Voltage-specific Dual circuit option on the AC only unit enables it to be connected to two different power supplies at the same time.
- Custom: Signs available with requested ‘special’ wording.
- USA: Substantial transformation assembly in the U.S. complies with “Assembled in USA” under the Buy American Act.
- Five year warranty on all electronics and housing. Battery prorated for five years.
- Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
- UL Listed for damp locations (0°C – 50°C).
- Certified to CEC under Title 20 Regulations.
